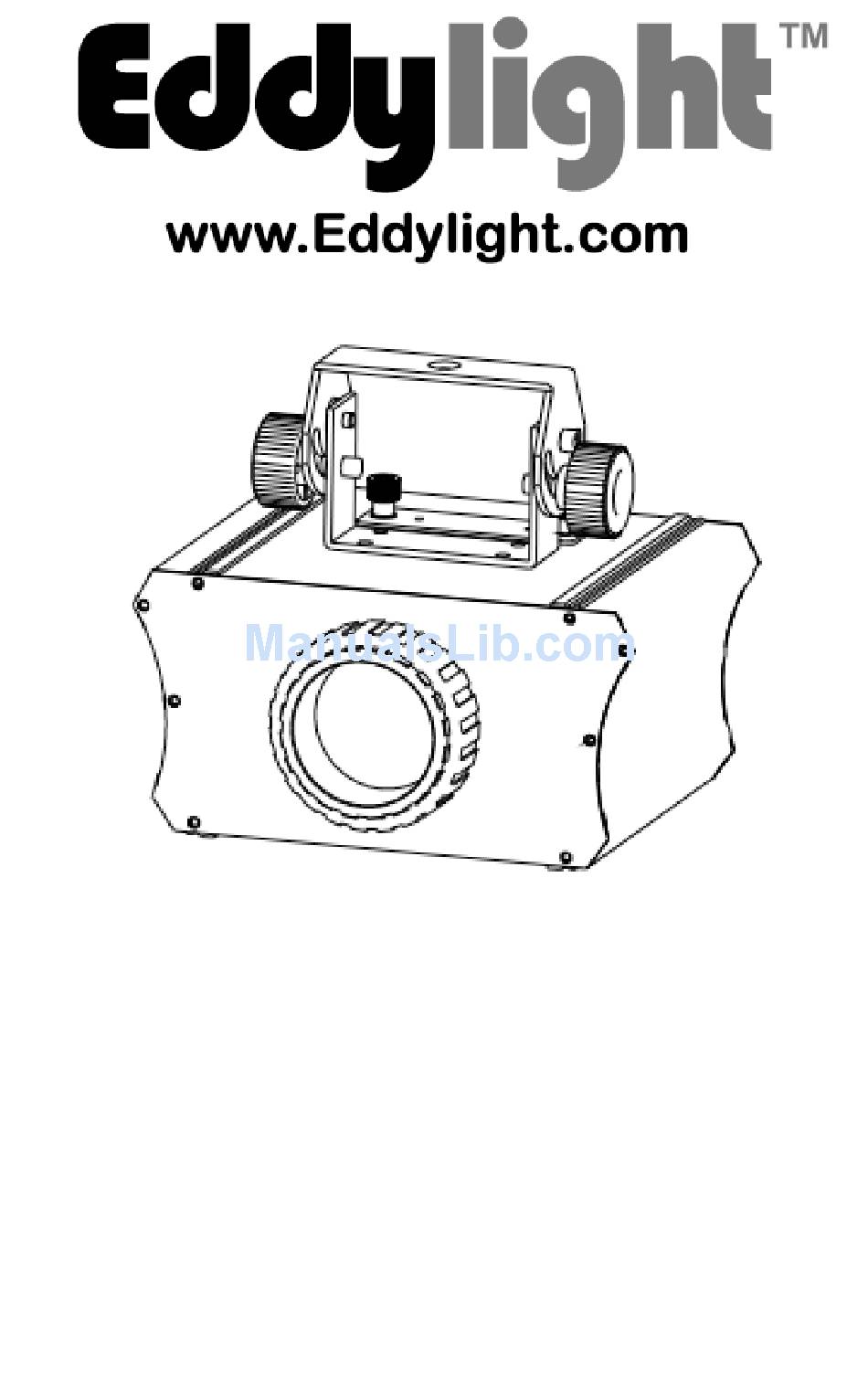

  • Page 1 GOBO LED Light DS-1404A USER MANUAL
...

  • Page 2: Safety Information

    1. Introduction Thank you for purchasing our GOBO LED light. Please read these instructions carefully before operating to avoid any possible damage and accidents caused by misuse. The GOBO LED light has a hydrodynamic aluminum shell. One 10W white LED is used to create a bright light output. It draws low power and is low weight.

  • Page 3: Dimensions And Specifications

    3. Dimensions and Specifications Voltage: AC100V/264 VAC Frequency: 47-63 Hz Power Consumption: 25 W Lamp: 10W white LED Beam Angle: 13 degrees Net Weight: 2 Kg IP Rating: IP20 Dimensions: www.EddyLight.com 1-800-914-3538...

  • Page 4: Gobo Installation

    4. GOBO Installation Unscrew the 2 knobs on the top of the projector and remove the piece from inside Place the GOBO in the center hole. Squeeze the ring and place it on top of the GOBO to ensure the GOBO stays in place.

  • Page 5: Operation


 Focus To focus the projector, rotate the lens. Every time you adjust the distance of the projector to the RoHS projection surface, you will need MADE IN CHINA to adjust the focus www.EddyLight.com 1-800-914-3538...

  • Page 6: Dmx Control Function

    6. DMX Control Function VALUE FUNCTION 0-255 Intensity No strobe 6-20 Random burst strobe(slow to fast) 21-60 Normal strobe(slow to fast) 61-100 Electronic Sinewave(slow to fast) 101-140 Random Strobe(slow to fast) 141-180 Opening pulse(slow to fast) 181-220 Closing pulse(slow to fast) 221-255 Electronic Squarewave(slow to fast) 0-100...
  • Page 7 For Master mode, press ENTER on the unit to display “*” on the LED display. When there is no “*” being displayed on the LED display, the light is set to Slave by default. www.EddyLight.com 1-800-914-3538...
  • Page 8 Level 1 Level 2 Level 3 Level 4 　 　 　 ADDR(Address) 001-512 STAT(Static 　 　 0-255* control) 　 　 　 SHUT 0-255* 　 　 　 GOBO 0-255* CHMD(Channe 　 　 SET(Set) l mode) 　 　 　 　 DIM(Dimming 　 　...

  • Page 9: Dmx Address Setting

    3. Press the UP/DOWN buttons to select OFF, DIM1, DIM2, DIM, 3 or DIM4 4. Press the ENTER button to escape and save. When off is selected there will be no delay dimming effect DIM1 is the slowest. DIM4 is the fastest. www.EddyLight.com 1-800-914-3538...

  • Page 10: Display Setting

    6.5 Display Setting 1. Select the SET menu by navigating to it and pressing ENTER 2. Select the DISY menu by pressing ENTER 3. Press the UP/DOWN buttons to select ON, 2MIN. 4. Press the ENTER button to escape and save. 6.6 Calibrating the GOBO to Original Position 1.
  • Page 11 1. Select the INFO menu by navigating to it and pressing ENTER 2. SOFT is for software version information. 3. POW is for the current information of power reduction. 100% is the normal output. Projector will reduce to 80% or 50% output to protect from over-heating. www.EddyLight.com 1-800-914-3538...

  • Page 12: Lighting Setting Parameter Reset

    6.10 Lighting Setting Parameter Reset 1. Select the LOAD menu by navigating to it and pressing ENTER 2. Select the ST L menu by navigating to it and pressing ENTER 3. Press the UP/DOWN buttons to select YES or NO. 4.

  • Page 13: Remote Control

    MENU, UP, DOWN, ENTER are the same as the corresponding buttons on the projector R - Red, G - Green, B - Blue, W - White, SHUT - Strobe, GOBO - Rotation AT01, AT02, AT03, CHS01, CHS02, CHS03 are shortcuts of AUTO www.EddyLight.com 1-800-914-3538...

  • Page 14: Operating Control Instruction

    8. Operating Control Instruction Master/Slave When the device is in MASTER mode it will automatically send out the signal to its slave. To avoid the host and DMX512 signals from interfering with each other, DMX512 signals should be shut off. If signal lines are longer than 60 meters or 20 lamps, you should use a single amplifier.
  • Page 15 If the output cable of the DMX512 controller is 5PIN, use 5PIN to 3PIN cable www.EddyLight.com 1-800-914-3538...
  • Page 17 1-800-914-3538 www.EddyLight.com 1-800-914-3538...
