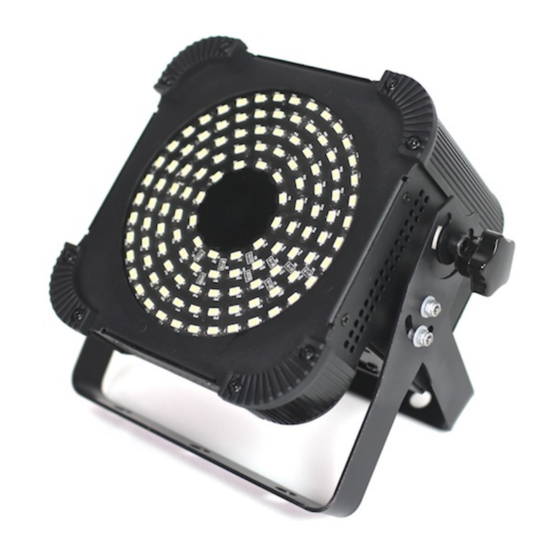

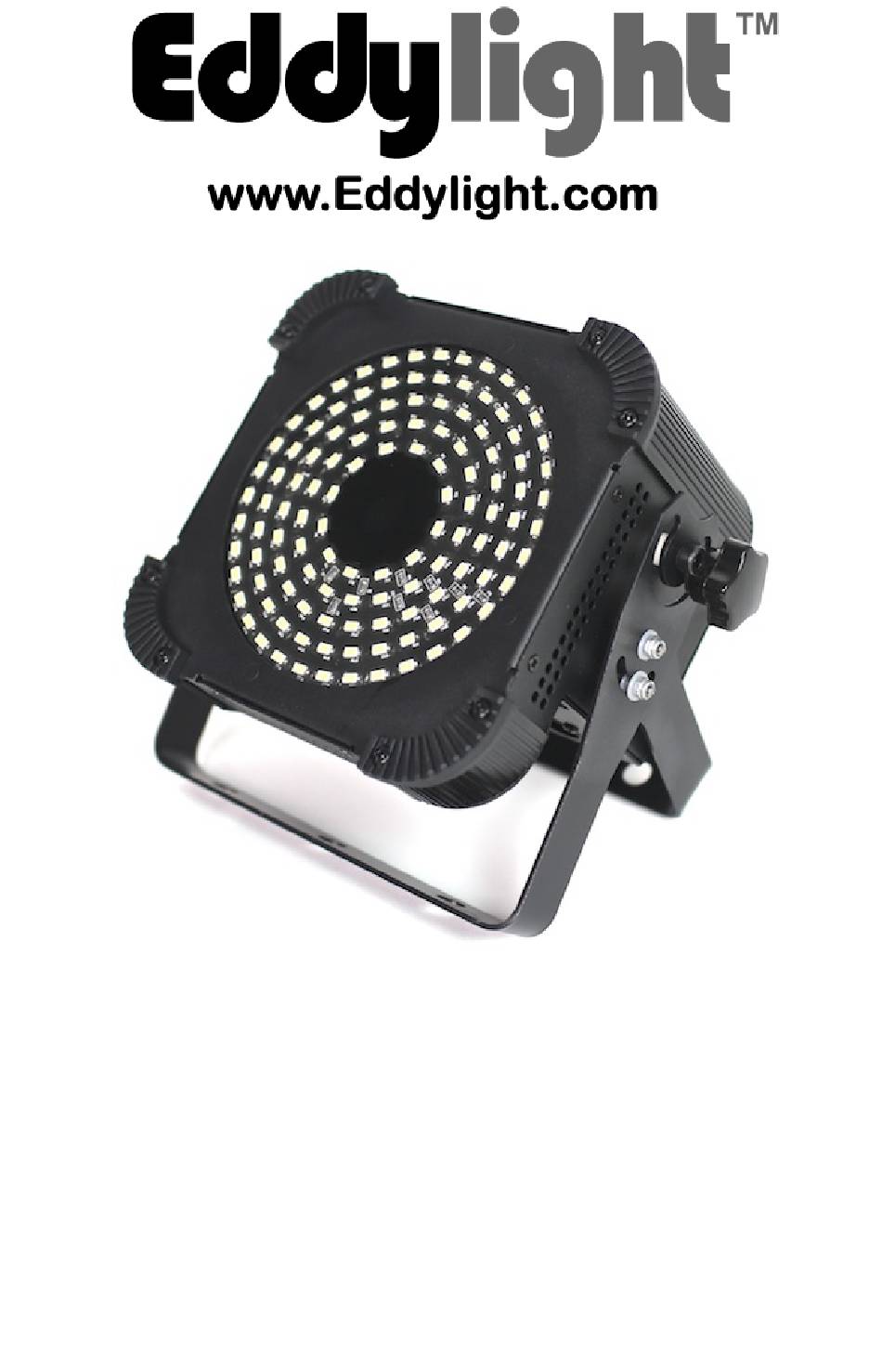

- Page 1 LED White Light Cannon EDD-VP-S120 USER MANUAL...
- Page 2 1. Introduction 2. Safety Information 3. Dimensions and Specifications 4. Main Function 5. Rear Panel Display and Operation 6. Instructions for Manual Programming 7. Master/Slave Control 8. Cable Connection...
-
Page 3: Safety Information
- The light is designed for indoor use, below 40 degrees celsius - The fixture may be mounted in any position provided there is adequate room for ventilation. Make sure there are no flammable and explosive items within 0.5 meters - Please ensure the ground (electrical) is always connected www.eddylight.com 1-800-914-3538... -
Page 4: Dimensions And Specifications
3. Dimensions and Specifications Voltage: 100-264 VAC ~60Hz Power: 60W Size: 98mm deep x 188mm wide x 220mm high Net Weight: 2 Kg Lamp Type: (120) pc of white LEDs SMD (0.5W) Lamp Life: ~50,000-100,000 hours Lamp Angle: 120 degrees Flicker free on camera 3.9”... -
Page 5: Main Function
Strobe speed 10-71 Program 1: Inside - outside movement 72-133 Program 2: Outside - inside movement 134-195 Program 3: Inside - outside variation 196-255 Program 4: Outside - inside variation 28-127 Dimmer mode 128-250 Color degenration 251-255 Sound activation www.eddylight.com 1-800-914-3538... - Page 6 5. Rear Panel Display and Operation LED Display Power in/out DMX input/output DMX OUT DMX IN Menu Up Down Enter Selection buttons MENU: Access the menu or return to a previous menu option UP: Menu selection or parameter increments DOWN: Menu selection or parameter increments ENTER: Select the current menu option 6.
-
Page 7: Master/Slave Control
The SLAVE units should be set to DMX mode and the address code set to “d001” to receive the MASTER’s signal. Only one light can be set as a master, but multiple lights can be set as slaves. www.eddylight.com 1-800-914-3538... -
Page 8: Cable Connection
8. Cable Connection A standard XLR connection is used for the DMX 512 protocol: DMX512 does not include automatic error checking and correction, and so is not an appropriate control for hazardous applications, such as pyrotechnics or movement of theatrical rigging. False triggering may be caused by electromagnetic interference, static electricity discharges, improper cable termination, excessively long cables, or poor quality cables.
