IMPORTANT SAFETY INFORMATION: Always read this manual
first before attempting to install or use the wall mount engine. For
your safety, always comply with all warnings and safety instructions
contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
Owner's Manual
Model
BOF4056
BOF4068
BOF6056
7213470100R01
Advertisement
Table of Contents
Related Manuals for Dimplex BOF4056
Summary of Contents for Dimplex BOF4056

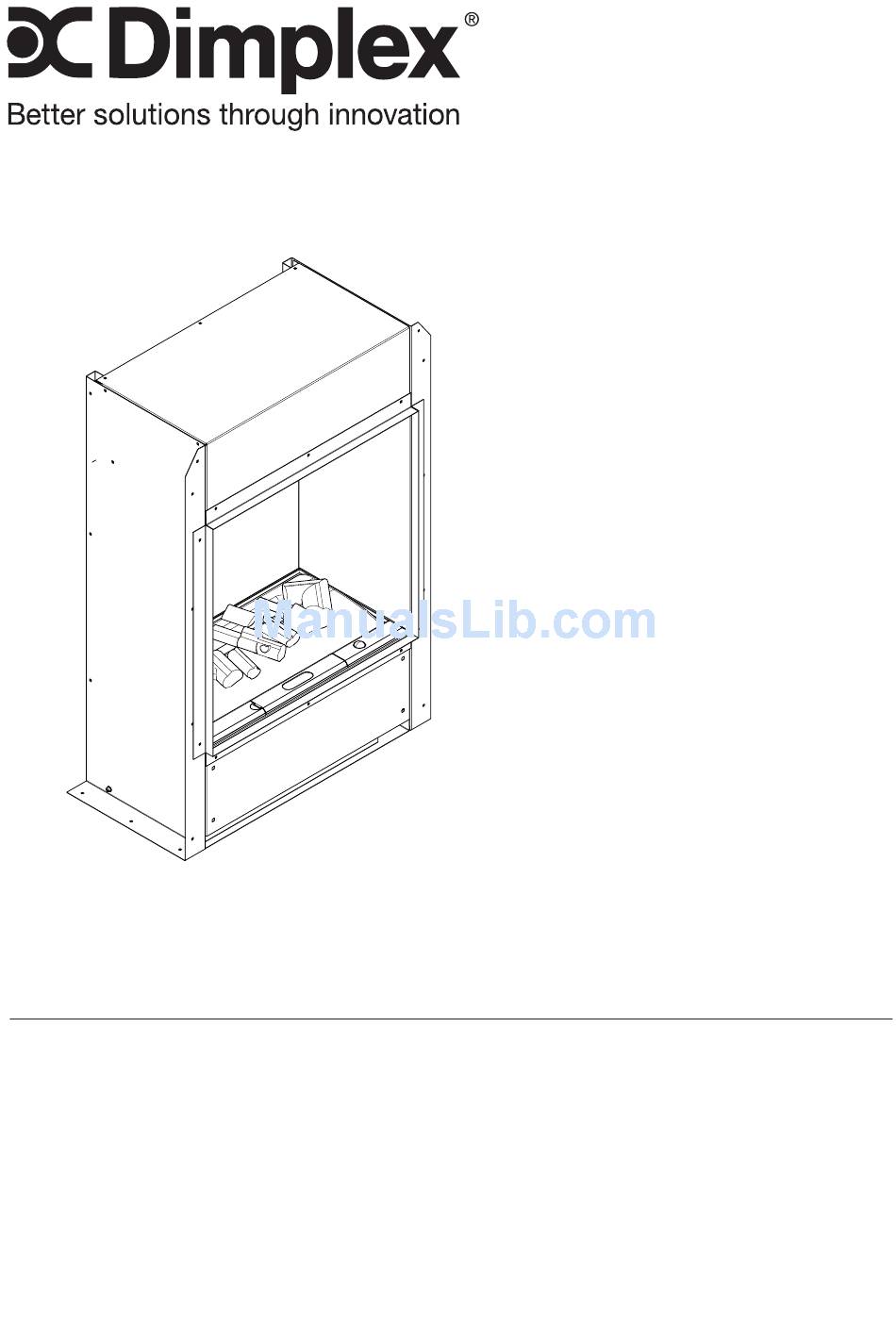

- Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7213470100R01...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Welcome & Congratulations
Welcome & Congratulations Thank you and congratulations for choosing to purchase an Optimyst ® Pro engine from Dimplex, the world leader in electric fireplaces. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. -
Page 4: Important Instructions
⑬ Do not modify the engine. damaged in any manner. Contact Use it only as described in this Dimplex Technical Service at manual. Any other use not recom- 1-888-346-7539. mended by the manufacturer may cause fire, electric shock or injury ⑥... -
Page 5: Save These Instructions
IMPORTANT INSTRUCTIONS ⑭ To reduce the risk of electric ⑲ The wall mount engine must shock, this appliance must be not be located directly below a grounded. Avoid the use of an ex- socket outlet. tension cord. Extension cords may ⑳... -
Page 6: Installation
40 in. (1020 the fireplace as instructed mm) from the ground to maintain below may result in damage an optimized viewing angle of the to the equipment and or may flame (Figure 2). expose the user to the risk of www.dimplex.com... - Page 7 Installation Figure 1 BOF4056 17.8in (451mm) 27.6in. (701mm) 10.0in. (255mm) 16.3in (413mm) 15.6in. (395mm) BOF4068 17.8in (451mm) 32.4in. (823mm) 10.0in. (255mm) 16.3in (413mm) 20.4in. (517mm) BOF6056 23.9in. (607mm) 27.6in. (701mm) 10.0in. (255mm) 22.4in (569mm) 15.6in. (395mm) wire to meet local and national NOTE: If installation in a cus- electrical codes for rated power.
- Page 8 11. Secure the unit to the framing cable clamp grips only the through the side flanges with jacket of service cable. the provided 8 screws (Figure ! NOTE: Once the unit has been fully installed there is an access www.dimplex.com...
-
Page 9: Bathroom Installation
Installation flanges and a false front that 12. Reinstall the dust panel that can be removed. came installed in the firebox opening. Bathroom Installation 13. Finish surrounding wall. There This firebox must be protected are 3 different options for fin- by a GFI circuit. -
Page 10: Assembly
In the event packed in the water reservoir and Figure 5 Figure 6 Removable Refill Remote Container Control Light Bulbs Cover Media Transducer Retaining Emitter Tabs Wire Slot Water Reservoir www.dimplex.com... - Page 11 Assembly your tap water is hard, you may use softened water or distilled water with 1/8 tsp of salt (0.5 mL) added to the water reservoir. (The addition of additional salt should only be used when you notice that the unit is not produc- ing mist as expected.) NOTE: During initial installation, the Refill Container...
-
Page 12: Operation
To adjust the temperature to your starts. individual requirements, turn the • Press again to give flame ef- thermostat control backwards fect and full heat. This will be all the way to turn on the heater. indicated by two “beeps”. www.dimplex.com... -
Page 13: Remote Control
CAUTION: If you need to con- D. Flame Intensity Control tinuously reset the heater, unplug Adjusts the intensity of the flame the unit and call Dimplex North and smoke effect when the heater America Limited at 1-888-346- has been activated. - Page 14 (Figure 8). 2. Install two 1.5 Volt (AAA) bat- tery in the battery holder. 3. Close the battery cover. Battery must be recycled or disposed of properly. Check with your Local Authority or Retailer for recycling advice in your area. www.dimplex.com...
-
Page 15: Maintenance
Maintenance that the unit is not producing mist WARNING: Disconnect power as expected.) before attempting any main- tenance or cleaning to reduce 5. Screw the cap back on, do the risk of fire, electric shock not overtighten. or damage to persons. 6. - Page 16 ! NOTE: Replacement light Filter Cleaning bulbs can be obtained by contact- The air filter can be removed ing Dimplex Customer Service at and gently rinsed with water to 1-888-346-7539. clean and dried on a towel before 7. Carefully insert the two pins reinstalling.
-
Page 17: Warranty
Limited warranty service requires a proof What this limited warranty covers and for of purchase of the product. how long What Dimplex will do in the event of a Products, other than fireplace surrounds defect (mantels) and trims, covered by this... - Page 18 Warranty repair or replace such defective prod- replacement product or part) including, uct or part without charge. If Dimplex without limitation, all shipping costs is unable to repair or replace such and transportation costs to and from product or part, or if repair or replace- the authorized dealer’s or service...
-
Page 19: Replacement Parts
Light Bulbs..........RB400 Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 © 2014 Dimplex North America Limited...
