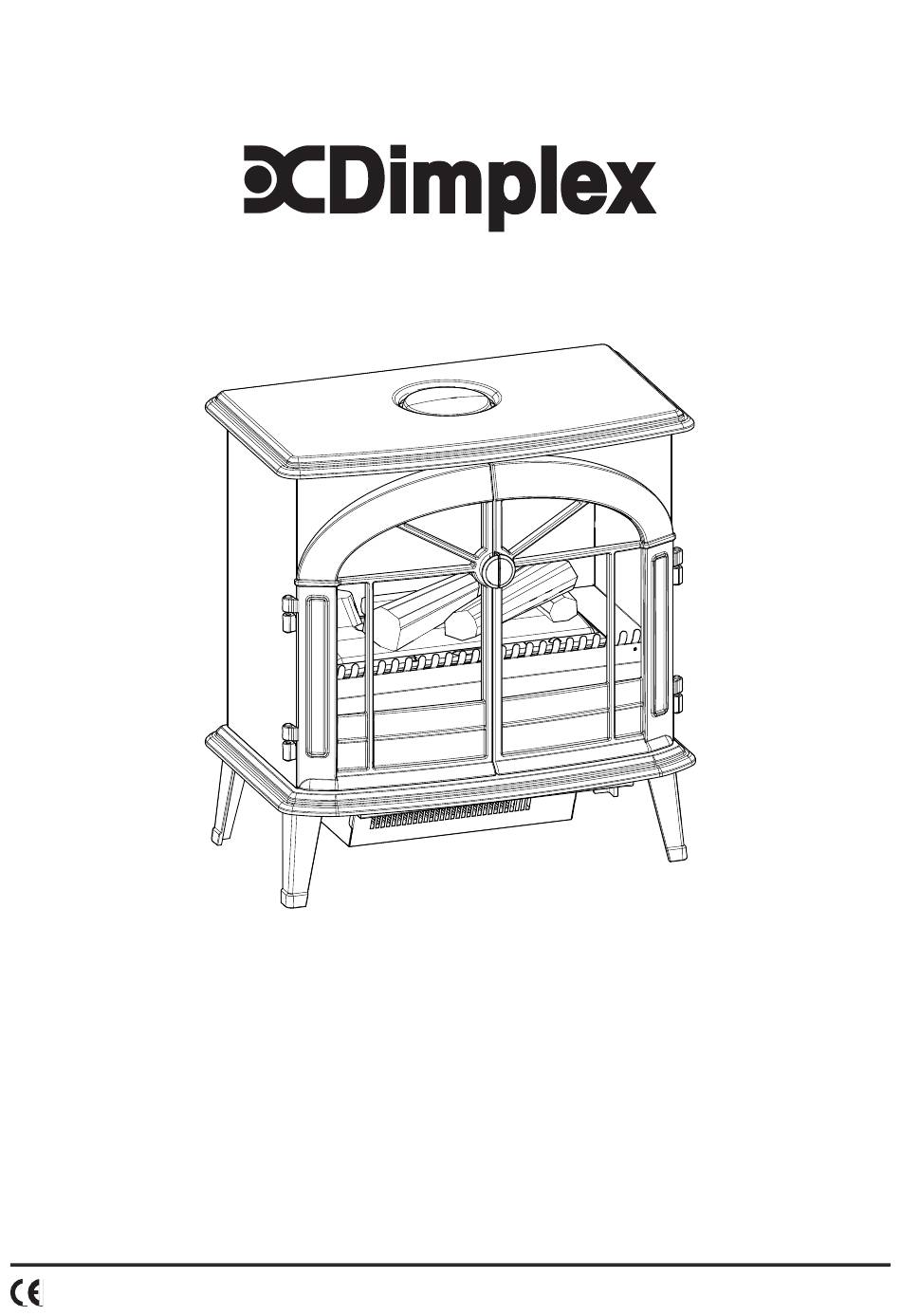

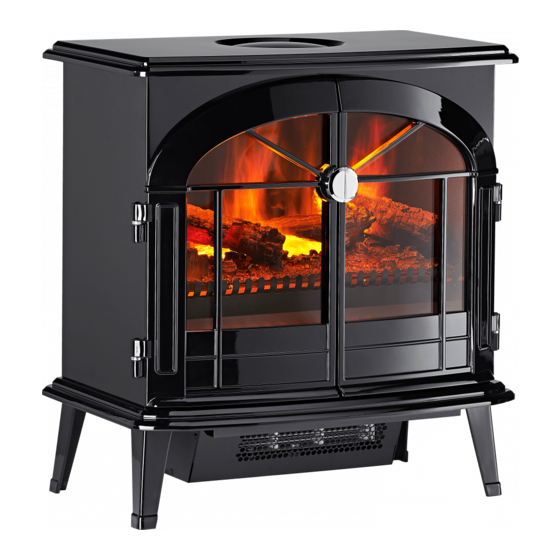

- Page 1 Burgate, Meribel BRG20, MRB20 08/52406/0 Issue 3 The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC...
-
Page 2: Warning! This Appliance Must Be Earthed
Dimplex OPTIMYST Stove Introduction Thank you for choosing this Dimplex electric fi re. Please read this information guide carefully to be able to safely install, use and maintain your product. Important Safety Advice When using electrical appliances, basic precautions should always be followed to reduce the risk of fi... -
Page 3: General Information
General Information Only use fi ltered water in this appliance. This model is designed to be free standing and is normally positioned near a wall. Always ensure that the appliance is sitting on a level surface. To reduce heat loss and to prevent any chimney up draft affecting the operation of your inset fi re we recommend they the chimney fl... - Page 4 Operating the Fire This section describes how to activate your fi re using either the manual controls or remote control. MANUAL CONTROLS The manual controls are located beneath the hinged fl ap. Open the doors to access the controls. (See Fig.10 for Manual Control lay out) Switch ‘A’:- Controls the electricity supply to the Fire.
-
Page 5: Maintenance
6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and 4a). Replace with a Dimplex OPTIMYST, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp. (Purchased from our website http://spares.dimplex.co.uk) 7. -
Page 6: Additional Information
Should you require after sales information or assistance with this product please go to www.dimplex.co.uk and select “Customer Support” or ring our help desk on 0844 879 3588 (UK) or 01 842 4833 (R. O. I.). Spare parts are also available on the web site. -
Page 7: Troubleshooting
Troubleshooting Symptom Cause Corrective Action The fl ame effect will Mains plug is not plugged in. Check plug is connected to wall socket not start. correctly. Low water level. Check that the water tank is full and there is water in the sump. Low voltage connector not connected properly. - Page 8 Fig. 1 Fig. 2 Fig. 3 Fig. 4a Fig. 4...
- Page 9 Fig. 5 Fig. 5a Fig. 5b Fig. 6 Fig. 7 Fig. 8...
- Page 10 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14...
- Page 11 Fig. 15 Fig. 16 Fig. 17 REMOTE CONTROL SENSOR...
