IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this fireplace. For your
safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or prop-
erty damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2014 Dimplex North America Limited

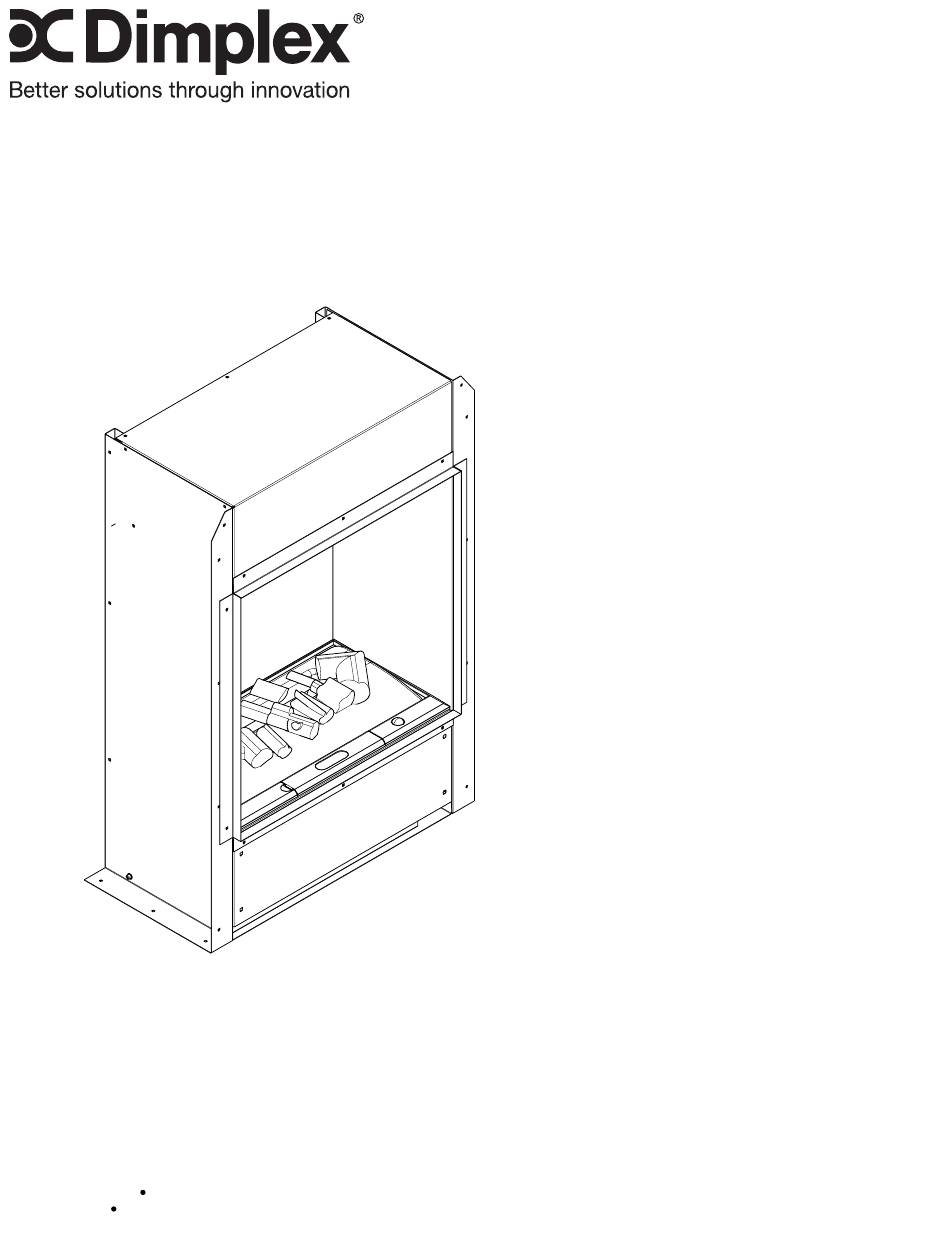

Service Manual
Model Number:
BOF4056
BOF4068
BOF6056
UL Part Number
6909430100
6909430200
6909430300
REV
PCN
DATE
00
-
7-MAY-14
7400780100R00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dimplex BOF4056
Summary of Contents for Dimplex BOF4056
- Page 1 Dimplex North America Limited 7-MAY-14 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2014 Dimplex North America Limited 7400780100R00...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
On/ Off Switch to Off and waiting 10 minutes before switching the unit back on. CAUTION: If you need to continuously reset the heater, unplug the unit and call Dimplex North Remote Control America Limited at 1-888-346-7539 for techni- Sensor cal support. -
Page 4: Maintenance
NOTE: Replacement light bulbs can be obtained by Filter contacting Dimplex Customer Service at 1-888-346-7539. 7. Carefully insert the two pins of the new bulb into the two holes in the lamp holder. Push lamp firmly in place. -
Page 5: Exploded Parts Diagram
Exploded Parts Diagram Replacement Parts 12. Fan Filter..... . . 8600300100RP 1. Remote Control ....9600385600RP 2. -
Page 6: Wiring Diagram
Wiring Diagram www.dimplex.com... -
Page 7: Remote Control Receiver Replacement
Remote Control Receiver Replacement Figure 5 Tools Required: Philips head screwdriver Flat Head Screwdriver WARNING: Disconnect power before attempting any maintenance to reduce the risk of electric shock or damage Transformers to persons. NOTE: Ensure that all of the components that contain water have been emptied before performing any maintenance. -
Page 8: Thermostat Replacement
5. With needle nose pliers, grasp the cord strain relief grommet from inside the back of the bottom panel and push while twisting to remove. www.dimplex.com... -
Page 9: Light Assembly Replacement
6. Install the new cord. Figure 6 7. Reassemble in the reverse order as above. Light Assembly Replacement Tools Required: Philips head screwdriver Flat Head Screwdriver WARNING: Disconnect power before attempting any maintenance to reduce the risk of electric shock or damage to persons. -
Page 10: Heater Assembly Replacement
3. Disconnect the wiring connections noting their original locations. 4. Install the new heater assembly to the support plate. 5. Reattach the wire connections. 6. Reinstall the heater assembly and support plate. www.dimplex.com... -
Page 11: Troubleshooting Guide
Troubleshooting Guide PROBLEM CAUSE SOLUTION General Circuit breaker trips or fuse Short in unit wiring. Trace wiring in unit. blows when unit is turned on Improper circuit current rating Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug unit into another outlet or install unit on a dedicated 15 amp circuit. - Page 12 Defective momentary switch Replace momentary switch Defective heater assembly Replace heater assembly Noise Ensure that exterior intake louvers and firebox cavity Excessive noise with the heater Dirty heater assembly are free of dirt/dust. Defective heater assembly Replace heater assembly www.dimplex.com...
