Instruction Manual

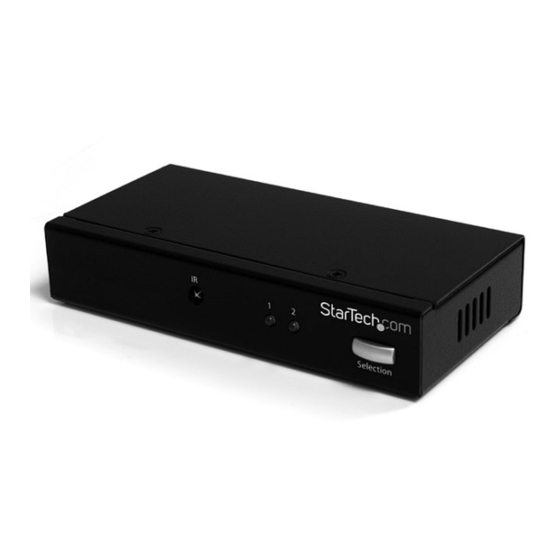

2 Port DisplayPort Video Switch w/ Audio & IR Remote Control
VS221DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x DisplayPort video switch
• 1 x IR Remote Control
• 1 x Power Adapter
• 1 x Installation Guide
System Requirements
• DisplayPort enabled display device (i.e. monitor, projector, etc)
• DisplayPort enabled audio/video source (i.e. computer)
• Available AC electrical outlet
Installation
1. Connect a standard male/male DisplayPort cable from the display
device to the "Out" connector on the video switch.
2. Connect a standard male/male DisplayPort cable from the video
sources to the numbered input connectors on the video switch.
3. Power on the display device.
4. Connect the included power adapter to the video switch. The LED
for the currently selected port on the switch should light up solid.
5. Turn on the video source on the currently selected port.
6. When proper video output to the display device is confirmed,
switch to the next port on the video switch and turn on that video
source.
7. Once video output has been confirmed from both video sources,
the video switch can be used to freely switch between them using
the front panel button or the included remote control.
For the most up-to-date information, please visit: www.startech.com
Specifications
Video Signal
Connectors
LEDs
Maximum Video Resolution
Maximum Cable Length
Switching Methods
Audio Support
Power Adapter
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
*actual product may vary from photos
DisplayPort
3 x DisplayPort female
1 x DC Power
2 x Port Selection Indicator
2560x1600
10 m / 33 ft.
Push Button, Remote Control
Yes
5VDC, 2000mA, type M plug
0°C ~ 40°C (32°F ~ 104°F)
-20°C ~ 60°C (-4°F ~ 140°F)
0% ~ 80% RH
131.0mm x 65.0mm x 26.0mm
500 g
Manual Revision: 02/10/2012
