Avue AV665PIRW User Manual

1. Use appropriate power supply.
The power input for AV665PIRW is DC12V. Using wrong power
source will damage the camera permanently.
2. Do not attempt to disassemble the camera.
There is not serviceable parts.
3. Handle the camera with care.
Avoid abusing the camera by striking, shaking, or other improper
handling.
4. Do not place the camera in the following locations:
a. Where temperature is lower than -4 ℉ or higher than 131 ℉;
b. Where humidity is higher than 90%.
Sony IMX138 720P CMOS Sensor
●
CVBS/BNC 960H/720P@60FPS Video Output
●
True Day & Night
●
www.avueinc.com

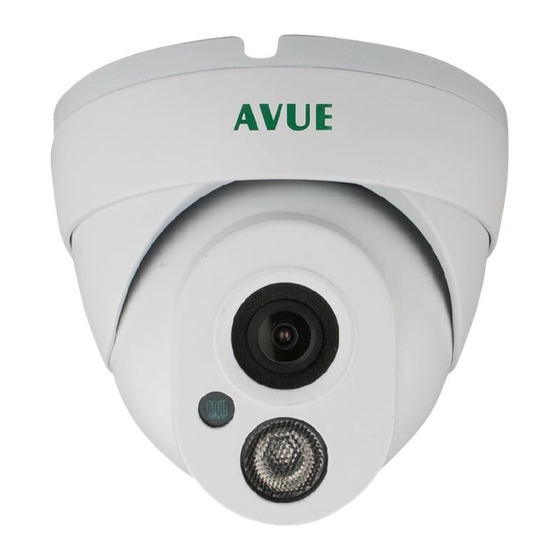

AV665PIRW
Thank you for purchasing our product. Before attempting to connect
or operate this product, please read the instructions carefully before
use.
AV665PIRW uses advanced imaging technology from
SONY IMX138 CMOS Sensor to capture image resolution as
high as 720P@60FPS and outputs analog signal through
CVBS/BNC. It features 2D/3D adaptive noise reduction.
PRECAUTIONS
5. Clean the CMOS faceplate with care.
Do not use strong detergents. Use a piece of lens tissue or
cotton tipped applicator and ethanol.
6. Do not attempt to aim the camera at the sun.
Aiming at the sun or other extremely bright objects causes
smear to appear irrespectively of whether the camera is
operating or not. This can damage the CMOS.
7. Do not put the camera in places with interference.
When this camera is installed near the equipment like wireless
communication device that emits strong electromagnetic field,
some irregularities such as noise on the monitor screen may
happen.
FEATURES
Adaptive 2D/3D Noise Reduction
●
Ingress Protection Rated IP66: Dust & Weather Proof
●
PARTS INSTRUCTIONS
1. Ring Enclosure
2. Camera Holder
3. Base
4. Camera Lens
5. Wire Out Hole
6. Four install screws holes (on base)
DESCRIPTION
