Avue AVHD830IR Instructions

1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws or covers. There are no user serviceable
parts inside.Ask a qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged
by improper handling or storage.
3. Do not place the camera in the following locations:
Locations where temperature is lower than -20 C or higher than 55 C;
Locations where humidity is higher than 90%;
1. HD 1/3" 2M Pixels Sony Progressive CMOS
2. Dual Video outputs: HD-SDI 1080P & 960H CVBS
3. Real Time video compression
4. ATW, HLC/BLC, WDR, DNR, Defog
1
2
1
DomeEnclos eprotect scameralensandbod y
2 Glasscove rscrew hole
AVHD830IR
7
6
5
4

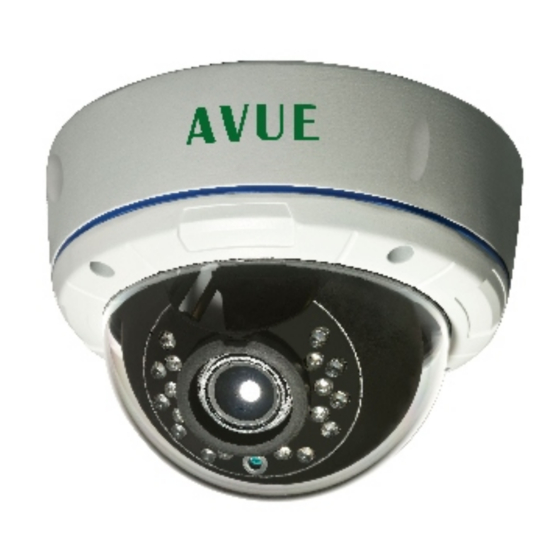

AVHD830IR uses a 1/3
frames per second. For the best possible recording solution, a 3 megapixels has been in
corporated into the 2.8-12mm lens. AVHD830IR includes a full range of adjustable imaging
functions such as Day & Night, 3DNR, White Balance, BLC/HLC, WDR, motion detection, and
privacy zones. This model uses 18 LED for an effective night vision of 100 feet..

PRECAUTIONS

4. Clean the faceplate with care
When cleaning the panel, do not use strong or abrasive detergents. Use a piece of lens
tissue or cotton tipped applicator and ethanol.
5. Do not attempt to aim the camera at the sun
Do not attempt to aim the camera at the sun or other extremely bright objects that cause smear
to appear irrespective of whether the camera is operating or not.This can damage the CMOS.
6. Do not put the camera in a place with interference.
When this camera is installed near the equipment like wireless communication device that
emits strong electromagnetic field,some irregularity such as noise on monitor screen may
happen.

FEATURES

5. True Day & Night ICR, Motion Detection, Privacy Zones
6. Digital Zoom up to 8.0X
7. IP66 Dust Proof, Weather Proof
8. 100 Feet Effective IR Range

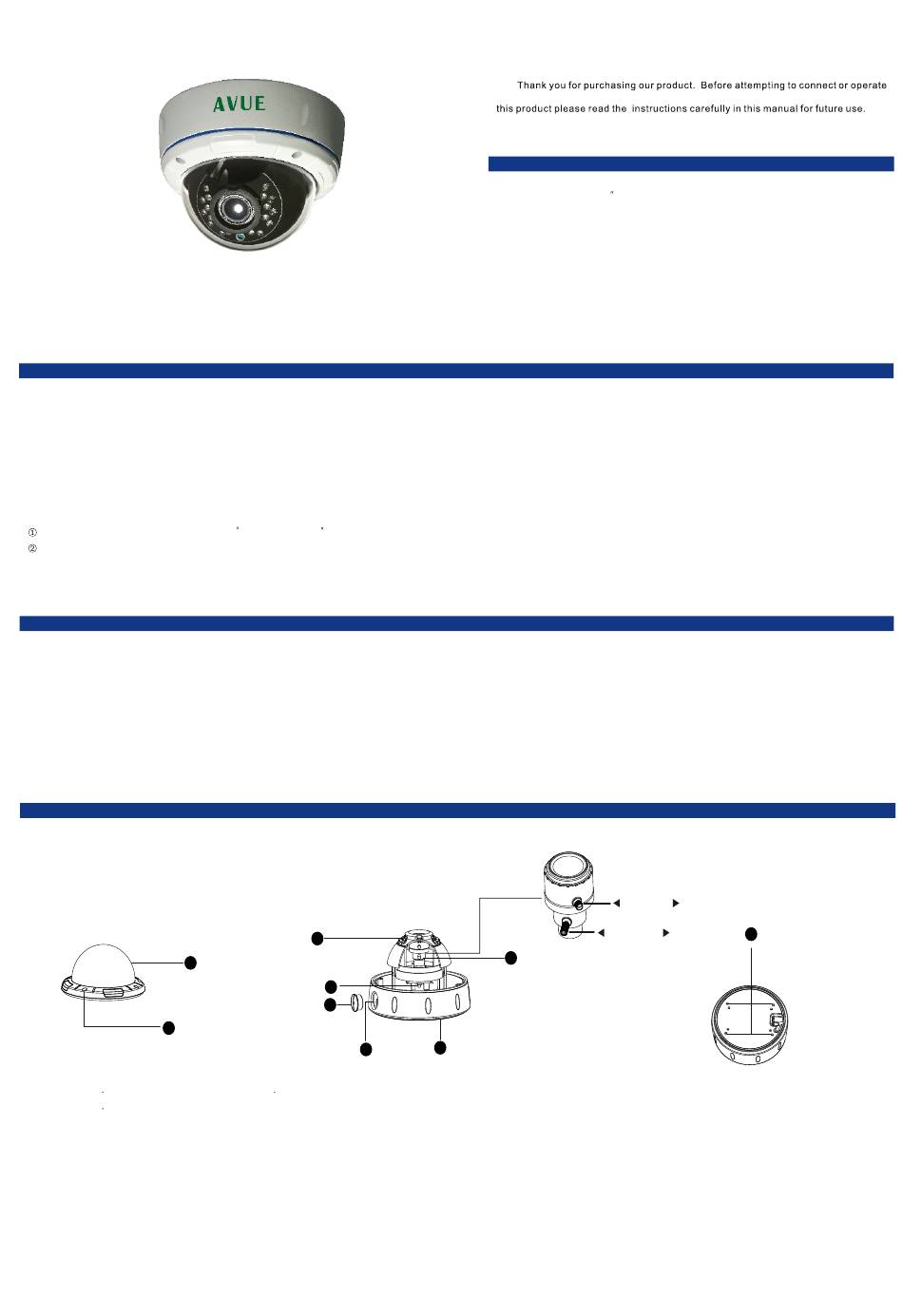

PARTS INSTRUCTION

8
3
3.Base
4.Wire out hole
5.Stages of a screw the lid
6.OSD
7.IR LED
8.Lens

DESCRIPTION

Progressive CMOS, it can capture 1080P Full HD video at 25/30
FAR NEAR
TELE WIDE
9
9. Fou r install screws holes
(At bott om of the ba se)
