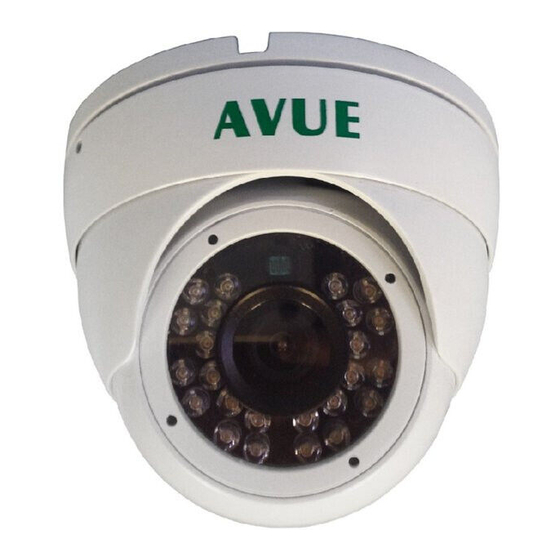

Avue AV665SCW28 Quick Manual

AV665SCW28
1. Use appropriate power supply.
The power input for AV665SCW28 is DC12V. Using wrong power
source will damage the camera permanently.
2. Do not attempt to disassemble the camera.
There is not serviceable parts.
3. Handle the camera with care.
Avoid abusing the camera by striking, shaking, or other improper
handling.
4. Do not place the camera in the following locations:
a. Where temperature is lower than -4 ℉ or higher than 131 ℉;
b. Where humidity is higher than 90%.
⅓" PixelPLus 1099K CMOS Sensor
●
High Resolution 700 TVL, true color
●
IR SMART control
●
www.avueinc.com
Thank you for purchasing our product. Before attempting to connect or
operate this product, please read the instructions carefully before use.
AV665SCW28 has advanced imaging technology with
resolution as high as 700 TVL, true color, IR SMART control,
waterproof housing, etc... to provide 24-hour continuous
monitoring.

PRECAUTIONS

5. Clean the CCD faceplate with care.
Do not use strong detergents. Use a piece of lens tissue or cotton
tipped applicator and ethanol.
6. Do not attempt to aim the camera at the sun.
Aiming at the sun or other extremely bright objects causes smear to
appear irrespectively of whether the camera is operating or not. This
can damage the CCD.
7. Do not put the camera in places with interference.
When this camera is installed near the equipment like wireless
communication device that emits strong electromagnetic field, some
irregularities such as noise on the monitor screen may happen.

FEATURES

Low power consumption (360mW), low heat dissipation
●
Ingress Protection Rated IP66: Dust & Weather Proof
●
Simple to operate
●

PARTS INSTRUCTIONS

1. Ring Enclosure
2. Camera Holder
3. Base
4. Camera Lens
5. Wire Out Hole
6. Four install screws holes (on base)

DESCRIPTION
