Avue AVHD830IR User Manual

01 SPECIFICATION
AVHD830IR
Video Output Mode AHD/CVI/TVI/CVBS - HD-SDI/EX-SDI 6 IN 1
Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Image Resolu�on 2MP 1080P/960H
Effec�ve Pixels 1920*1080
TV System PAL/NTSC
Electronic Shu�er 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ra�o ≥50dB
Scanning System Progressive Scan
Focus Length 2.8-12mm
Focus Control Manual
Lens Type Varifocal
Pixels 2M Pixels
Infrared LED 42µ x 4PCS
Infrared Distance 100 Feet
Starlight YES
IR Power On Smart IR control
Day/Night YES
Mul�ple language OSD YES
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduc�on 3DNR
Picture Adjustment YES
WDR YES
YES
OSD Support
UTC YES
Housing Metal, IP66
IR Cut Filter YES
Opera�on Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 550mA
Dimension 5.6x 5.6 Inch
Weight 2.6 LB
2

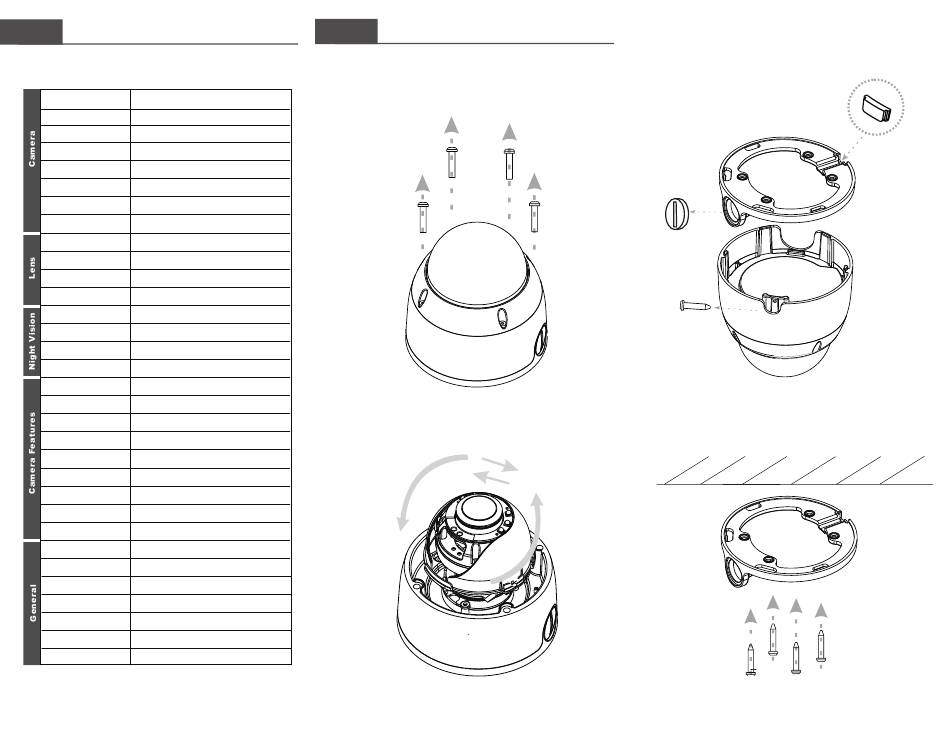

02 INSTALLATION
02. 1
The factory default is the best angle, if you need to adjust:
Loosen all 4 screws and remove the cover.
02. 2
Rotate the lens horizontally and vertically to adjust the angle.
3
02. 3
Remove the rubber plug and untighten the side screws to
detach the base from the house.
02. 4
Attach the base to the wall or ceiling with 4 screws.
