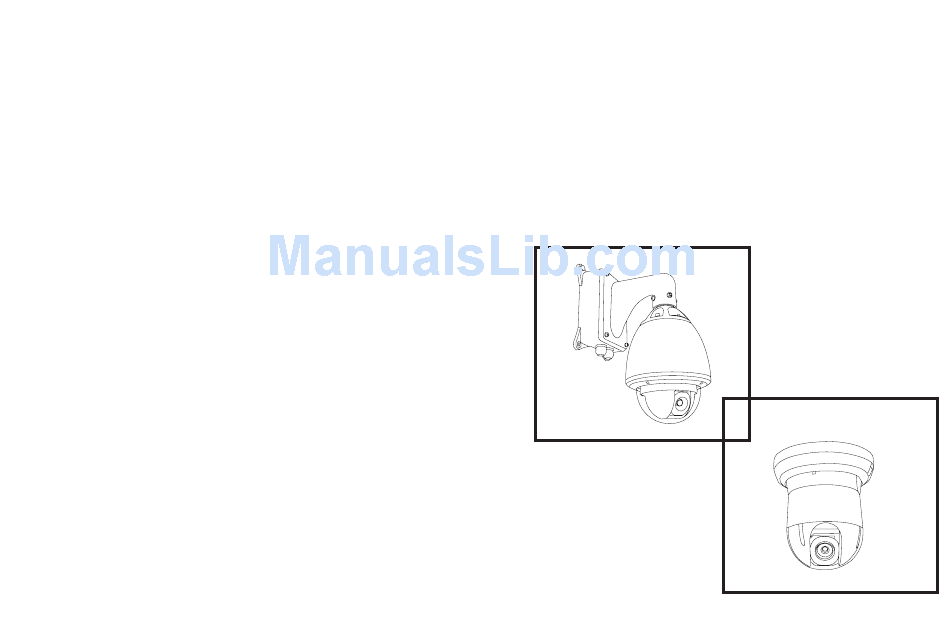

- Page 1 High Speed Dome Camera Series User Manual English v2.33...
-
Page 2: Table Of Contents
WARNING CONTENTS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN 1. Precaution............OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR 2. Features............OTHER OPENINGS ON THE EQUIPMENT. 3. -
Page 3: Precaution
2.FEATURES 1.PRECAUTION Refer all work related to the installaion of this product to qualified service The high speed dome camera series are designed for in- and outdoor video personnel or system installers. surveillance applications. The integrated, motorized pan-tilt mechanic allows users to maneuver the camera to any position (360°... -
Page 4: Packing List
3.PACKING LIST 4.INSTALLATION Safety Instructions before starting Indoor - Do not install and operate this appliance in a flammable and / or explosive environment. - Make sure that the installation is done according to the local electricity safety regulations of your country. - Before installation and maintenance, make sure that the appliance is disconnected Core unit Indoor Roof-Mount... - Page 5 4.INSTALLATION 4.INSTALLATION Connector description Using optional accessories The speed dome camera series can be connected to various optional accessories through the standard connector types, which simplifiy the cable handling and avoid possible mistakes. All accessories are tested for max. Compatibility and best performance.
- Page 6 4.INSTALLATION 4.INSTALLATION Star-Connection RS485 Termination The star-form connection is a popular way to connect different devices. It enables Devices using RS485 control are usually connected in daisy-chain which longer distance connection of different dome cameras. It is recommended to use reqiuers termination with 120 resistor on both ends.
-
Page 7: Operating The Speed Dome
4.INSTALLATION 5.OPERATING THE SPEED DOME Initial Screen Installing the core unit to base board. After powering up, the camera will enter into FIRMWARE V2.25 The core units and base boards are packed seperatly, in order to protect them during the self-test mode and display the status Protocol: PELCO transportation. -
Page 8: Osd
6.OSD 6.OSD - Map OSD Menu The speed dome are equipped with the new OSD Menu function. All operational functions and camera related settings can be controlled here. In order to use the OSD function, a telemetric controller device, such as keyboard, DVR or other devices with similiar functions, is required. -
Page 9: System Setting
6.OSD - System Setting 6.OSD - Motion, Clear, Password System Setting Motion control SYSTEM SETTING MOTI ON In the system setting menu, you can modify operation AUTO FLIP : Auto. image flip tilt range from 90° to EDIT DOME LABEL and display settings, such as dome label, temperature AUTO FLIP 180°. -
Page 10: Camera Setting
6.OSD - Camera Setting 6.OSD - Preset, Scan Camera Setting Function Setting F U NC T I O N S E T T I N G C A M E R A S E T T I N G In function setting menu, you can define and activate In the camera setting menu, you can access camera module ZOOM SPEED HIGH... - Page 11 6.OSD - Patterns, Tours 6.OSD - Zones and Privacy Mask Patterns Zones P ATT ERN S Z O NE S You can define the zones in the whole PT range up to Patterns record the user’s movement while ZONE NUMBER 8 zones.
-
Page 12: Protocol Setting
6.OSD - Alarm Setting 7.PROTOCOL SETTING Protocol Setting Alarms ALARMS This procedure is needed if a connection of the RESUME: Continues the previous function of the telemetric control with the keyboard device is RESUME camera before the alarm was activated. desired. -
Page 13: Address Id
8. Address ID, 1 to 67 8.Address ID, 68 to 135 Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 0 0 1 0 0 0 1 0 0 1 1 0 0 1 1 0... - Page 14 8. Address ID, 136 to 203 8. Address ID, 204 to 255 Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) Switchnumber (Sw1) (Bit)1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 Bit 1 2 3 4 5 6 7 8 (Bit)1 2 3 4 5 6 7 8 0 1 0 1 0 1 0 1 0 0 0 1 0 0 0 1...
-
Page 15: Specifications
9.SPECIFICATION NOTES Indoor18X Indoor18X Indoor Indoor Model Outdoor18X* Outdoor18X* Outdoor 26 * Outdoor36 * Day / Night Day / Night Day / Night Signal Format PAL / NTSC Progressive Scanning Image Sensor 1/4 inch Ex-View CCD 470 TVL / 530 TVL H.
