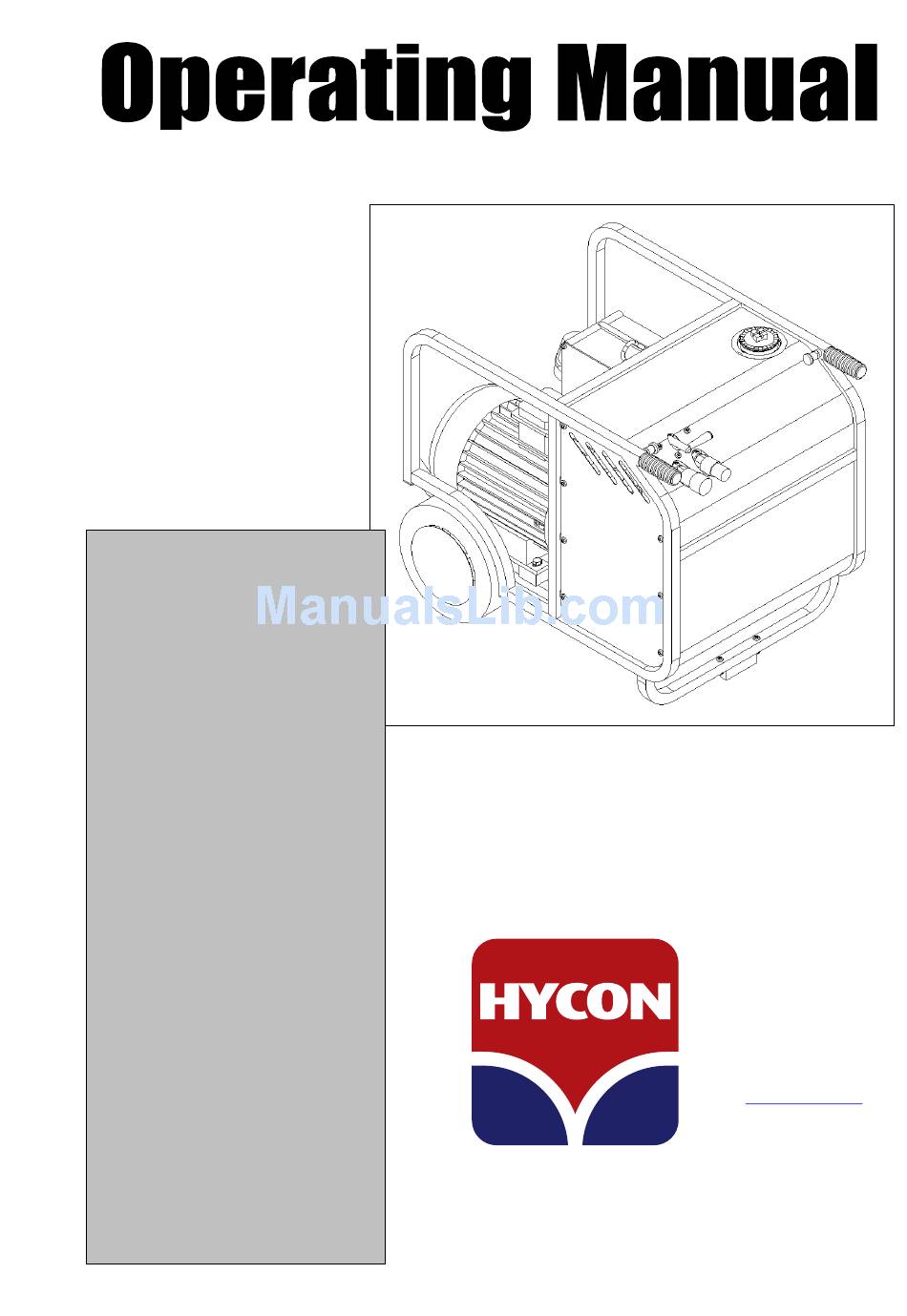

HPP18E
Hydraulic
Powerpack
30 l.p.m. from serial No. 4727
40 l.p.m. from serial No. 4676
Revised 13.04.2011
Prior to Operation
We thank you for choosing a
HYCON powerpack.
Please note that the power-
pack is delivered without hy-
draulic oil, and therefore it
must be filled up with hydrau-
lic oil prior to operation.
To ensure smooth operation
and long-lasting performance
of your new powerpack, we
recommend that you study
this operating manual carefully
and pay special attention to
the
Safety and Service
Precautions
We hope you will be satisfied
with your new HYCON power-
pack.
Best regards
HYCON A/S
HYCON A/S
Juelstrupparken 11
DK-9530 Støvring
Denmark
Tel: +45 9647 5200
Fax: +45 9647 5201
Mail
hycon@hycon.dk
www.hycon.dk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HYCON HPP18E
Summary of Contents for HYCON HPP18E
- Page 1 HYCON A/S Juelstrupparken 11 DK-9530 Støvring Denmark Safety and Service Precautions Tel: +45 9647 5200 Fax: +45 9647 5201 Mail hycon@hycon.dk We hope you will be satisfied www.hycon.dk with your new HYCON power- pack. Best regards HYCON A/S...
-
Page 2: Table Of Contents
Contents Page Safety precautions ....................2 Filling up hydraulic oil ................... 2 Technical data ...................... 3 Electrical circuit diagrams..................4 Starting instructions ..................... 6 Service, maintenance and hydraulic settings ............8 Oil types ......................8 EC-Declaration of Conformity ................9 Warranty conditions ....................10 Spare parts list ....................11... -
Page 3: Safety Precautions
Safety Precautions 1. Always use protective earplugs. The powerpack complies with the EC noise limits, but by daily long-lasting operation there is a risk of hearing defects. 2. Always connect hoses before starting. 3. Always keep the electrical box, cables and sockets clean. 4. -
Page 4: Technical Data
The HYCON HPP18E open centre hydraulic powerpack is designed in accordance with the EHTMA categories D and E, which prescribe a performance of minimum 30 l.p.m. or 40 l.p.m. at 138 bar. The HYCON powerpack is fully compatible with and sufficient for the common European tools. - Page 5 Electric Circuit Diagram - Components...
-
Page 6: Electrical Circuit Diagrams
Electric Circuit Diagram... -
Page 7: Starting Instructions
Starting Instructions Please observe the starting instructions on the electric box. Start: • • • • Check hydraulic oil level at sight glass • Connect hoses and tool • Press the green button • If the powerpack does not start, invert the phases in the socket by means of a screw driver •... - Page 8 Short Circuit If the motor stops due to a short circuit (water), malfunctioning etc., the fuse in the relay might need to be reset. 1. Open the electrical box 2. Open the clear doors on the relays (Q34 and Q35) 3.
-
Page 9: Service, Maintenance And Hydraulic Settings
If the pressure/oil flow is then still incorrect, the pump is defect and must be replaced. Oil Types The HYCON powerpack uses standard hydraulic oil, i.e. all types of mineral oil and biodegradable oil, which comply with the following values: Recommended viscosity... -
Page 10: Ec-Declaration Of Conformity
Fax: +45 9647 5201 Mail hycon@hycon.dk www.hycon.dk We hereby declare that HPP18E hydraulic powerpack 30 l.p.m. from serial No. 4727 (with 11 kW electric motor) 40 l.p.m. from serial No. 4676 is manufactured in conformity with the EC Directives: 2006/42/EC... -
Page 11: Warranty Conditions
Warranty Conditions We grant 12 months warranty from the first date of operation – however, not more than 18 months from the date of delivery. The warranty applies to faults that can be related to construction and production errors. Faults caused by incorrect operation, incorrect handling, lack of maintenance or the like will not be accepted as warranty.
