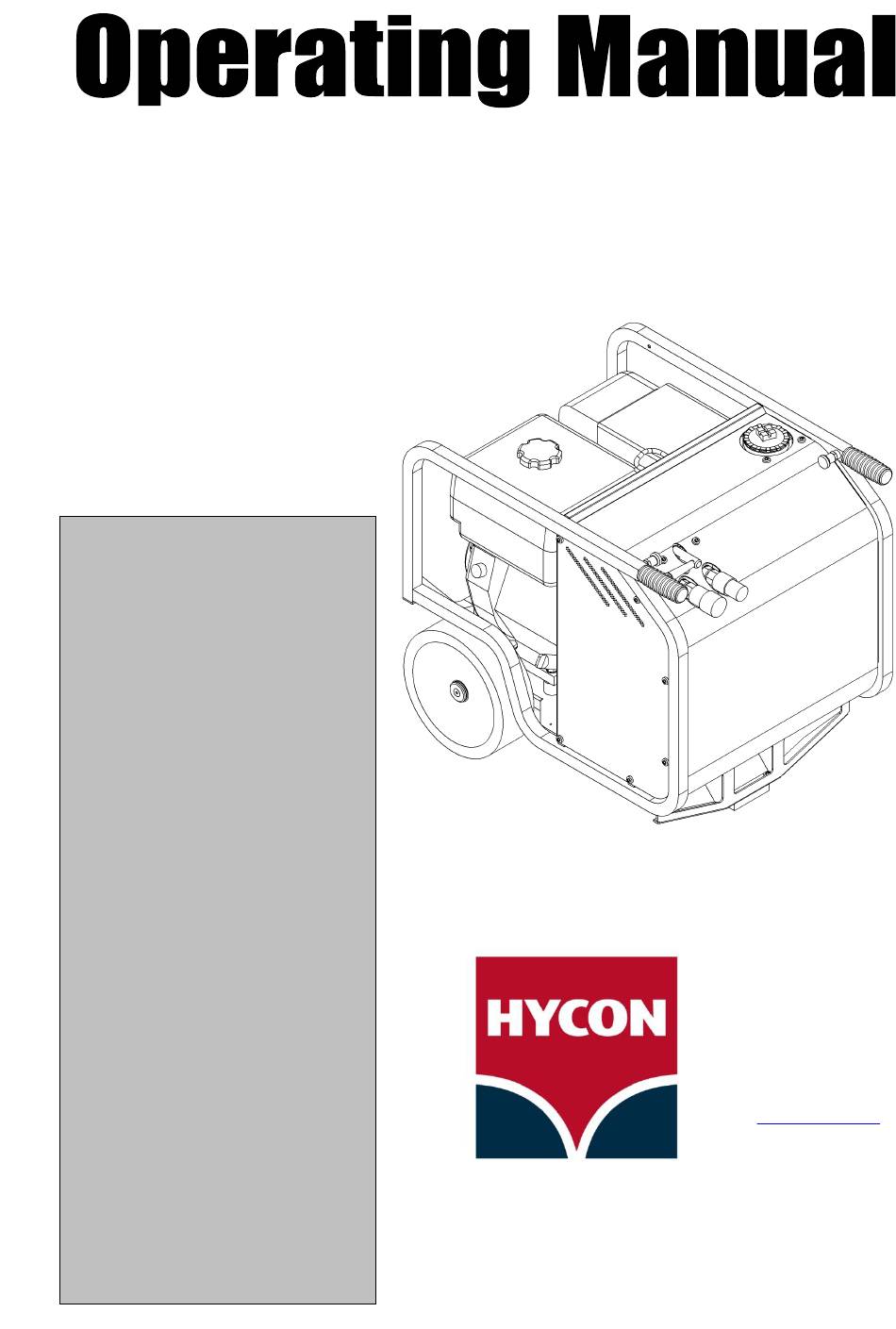

HPP14V FLEX
Hydraulic Power pack
From serial
number 17415
Prior to Operation
We thank you for choosing a
HYCON powerpack.
Please note that the power-
pack is delivered without hy-
draulic oil, and therefore it
must be filled up with hydrau-
lic oil prior to operation.
To ensure smooth operation
and long-lasting performance
of your new powerpack, we
recommend that you study
this operating manual carefully
and pay special attention to
the
Safety and Service
Precautions
We hope you will be satisfied
with your new HYCON power-
pack.
Best regards
HYCON A/S
HYCON A/S
Juelstrupparken 11
DK-9530 Støvring
Denmark
Tel: +45 9647 5200
Fax: +45 9647 5201
Mail
hycon@hycon.dk
www.hycon.dk
Advertisement
Table of Contents
Related Manuals for HYCON FLEX HPP14V
Summary of Contents for HYCON FLEX HPP14V
- Page 1 HYCON A/S Juelstrupparken 11 DK-9530 Støvring Denmark Safety and Service Precautions Tel: +45 9647 5200 Fax: +45 9647 5201 Mail hycon@hycon.dk We hope you will be satisfied www.hycon.dk with your new HYCON power- pack. Best regards HYCON A/S...
-
Page 2: Table Of Contents
Contents Page Safety Precautions .................... 2 Filling up Hydraulic Oil ..................2 Technical Data ....................3 Starting Instructions ..................4 Service, Maintenance and Hydraulic Settings ............5 Oil Types ......................6 Warranty Terms ....................6 EC-Declaration of Conformity................7 Warranty Terms…………………………………………………………………………………………….8... -
Page 3: Safety Precautions
Safety Precautions 1. Always use protective earplugs. The powerpack complies with the EU noise limits, but by daily long-lasting operation there is a risk of hearing defects. 2. Always connect hoses before starting. 3. Never add fuel and oil when the engine is running. 4. -
Page 4: Technical Data
Technical Data Hydraulics The HYCON HPP14V open centre hydraulic powerpack is designed in accordance with the EHTMA categories C and D, which prescribe a minimum performance of 20 l.p.m. at 138 bar and 30 l.p.m. at 138 bar, respectively. With manual flow adjustment. This powerpack can be set to 20 to 30 l.p.m. on the front of the powerpack. -
Page 5: Starting Instructions
Starting Instructions Please observe the starting instructions on the front of the powerpack. Start: • Check engine oil level • Check hydraulic oil level at sight glass • Connect hoses and tool • Switch fuel tap to “ON” • Activate choke •... -
Page 6: Service, Maintenance And Hydraulic Settings
Service, Maintenance and Hydraulic Settings Service/Maintenance Daily Weekly Yearly Engine oil Check 1 x replacement Hydraulic oil Check 1 x replacement Hydraulic oil filter *) 1 x replacement Check hoses (tighten up if needed) Air filter 1 x replacement Fuel filter 1 x replacement *) Use only filters with by-pass Hydraulic Settings... -
Page 7: Oil Types
Oil Types The HYCON powerpack uses standard hydraulic oil, i.e. all types of mineral oil and biodegradable oil, which comply with the following values: Below 10°C 10 … 30°C Above 30°C Ambient temperature range 50°F 50 … 86°F 86°F Recommended oil viscosity grade... -
Page 8: Ec-Declaration Of Conformity
EC-Declaration of Conformity HYCON A/S Juelstrupparken 11 DK-9530 Støvring Denmark Tel: +45 9647 5200 Fax: +45 9647 5201 Mail hycon@hycon.dk www.hycon.dk We hereby declare that HPP14V hydraulic powerpack – from serial No. 17415 (with 10.3 kW petrol engine) is manufactured in conformity with the EC Directives 2006/42/EC and 2000/14/EC. -
Page 9: Warranty Terms
Warranty Terms We grant 12 months warranty from the first date of operation – however, not more than 18 months from the date of delivery. The warranty applies to faults that can be related to construction and production errors. Faults caused by incorrect operation, incorrect handling, lack of maintenance or the like will not be accepted as warranty.
