Code 3 CODE 360 Installation & Operation Manual page 15

Multi-Functional Intersection Control System - This system allows multiple lighting options with a single pair of intersection lights. The
control center of the system is the Multi-Functional Control Module located in the lower section of the light bar. This combined with the
Sensing Lighthead Assemblies, located in the front lower section, allows the operator to select (4) four modes of operation - intersection,
driver side alley, passenger side alley and takedown positions.
WIRE FUNCTION
GRN ALLEY
BLK GROUND
YEL TAKEDOWN
RED POWER

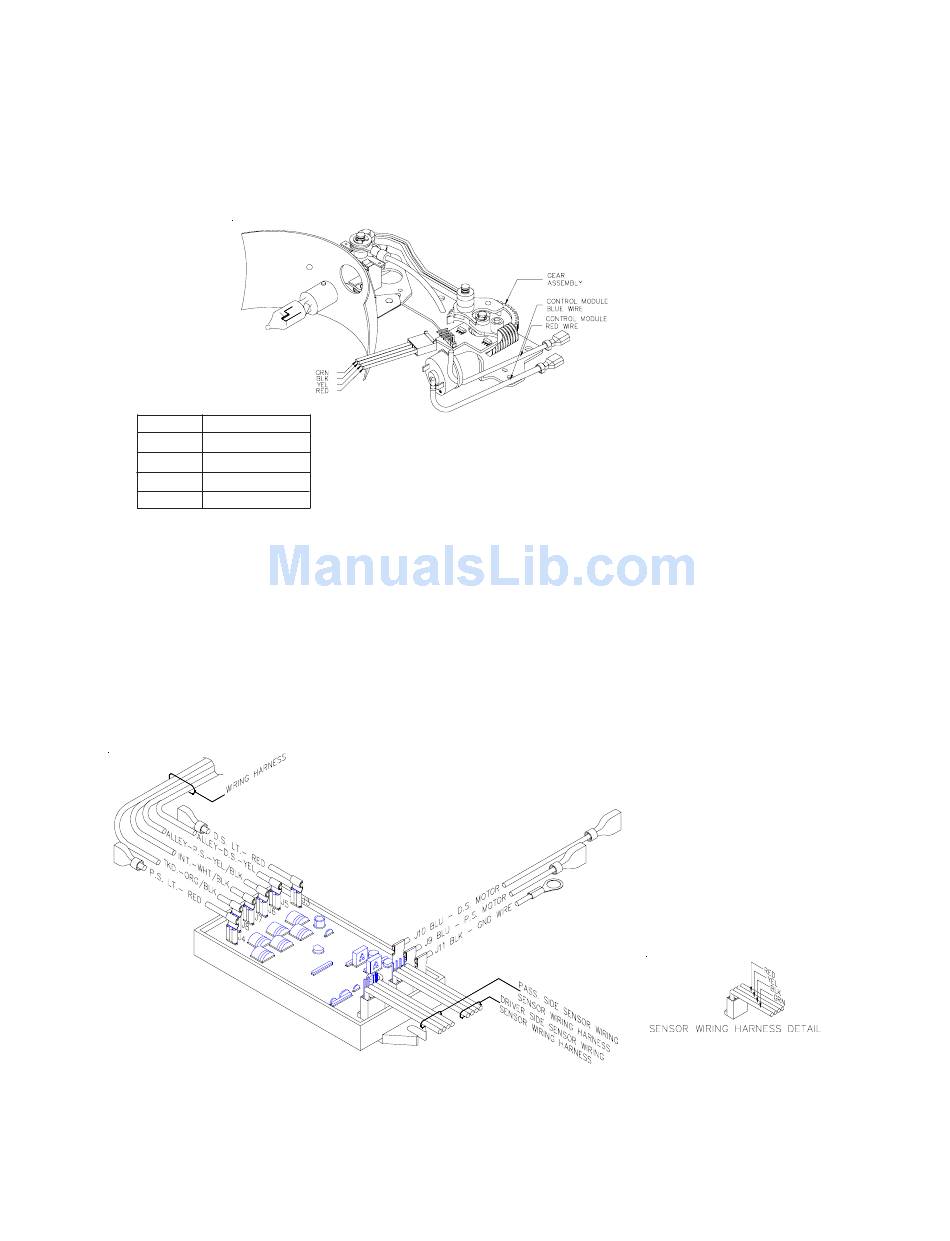

Sensing Lighthead Assembly - As with the standard intersection lights, these are high intensity 120 degree oscillating light assem-
blies. With addition of the Position Sensing module these lights can be placed in the takedown or alley positions. (Figure 11)
Note: If the gear assembly is replaced, care must be taken to insure that the flat nylon washer is seated between the gear and the
bottom plate to prevent premature wear and failure.
exact wire color code.
S55401 - Multi-Functional Control Module
Figure 12
* - see wire tag for
1 5
Figure 11
S50690 - Driver side assembly
S50691 - Passenger side assembly
Multi-Functional Control Module - Using
standard lighting controls the operator can select the
operation of the Lighthead assemblies.
