INSTALLATION
& OPERATION
MANUAL

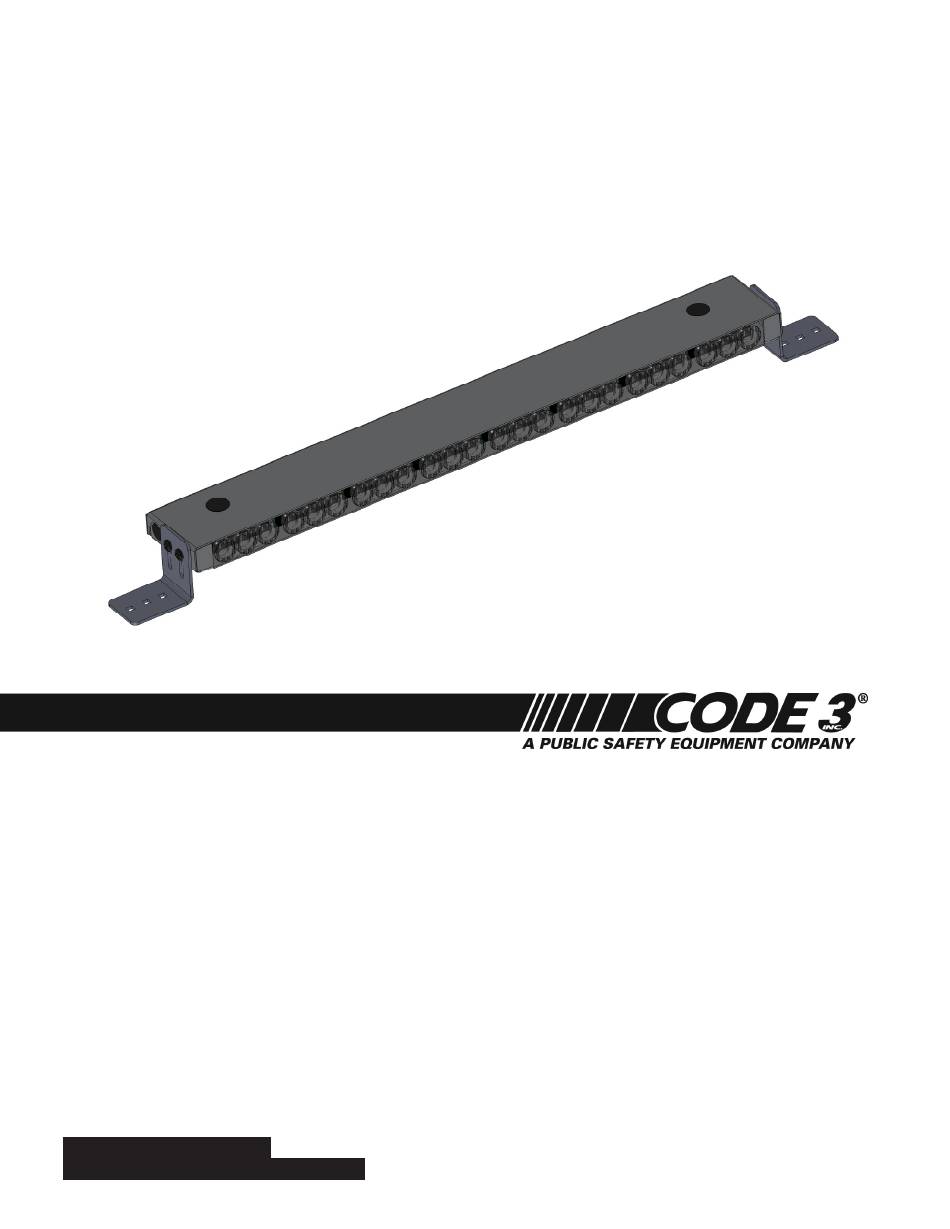

CommandStik™
CommandStik™
For future reference record your product's serial no. here __________________________________________
IMPORTANT:
with
Interior Lighting System
REAR DECK LIGHT BAR
CONTENTS:
Introduction .....................................................................................2
Unpacking & Pre-Installation ..........................................................2
Installation & Mounting ...................................................................3
Wiring Instructions .......................................................................3-4
Flash Pattern Selection .................................................................5
Troubleshooting .............................................................................5
Exploded View-Parts List ................................................................6
Notes ..............................................................................................7
Warranty .........................................................................................8
Read all instructions and warnings before installing and using.
This manual must be delivered to the end user of this equipment.
INSTALLER:
Torus™ Technology
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Code 3 CommandStik
Summary of Contents for Code 3 CommandStik
-
Page 1: Table Of Contents
INSTALLATION & OPERATION MANUAL CommandStik™ CommandStik™ Torus™ Technology with Interior Lighting System REAR DECK LIGHT BAR CONTENTS: Introduction ..................2 Unpacking & Pre-Installation ............2 Installation & Mounting ..............3 Wiring Instructions ...............3-4 Flash Pattern Selection ..............5 Troubleshooting ................5 Exploded View-Parts List ..............6 Notes ....................7... -
Page 2: Introduction
Unpacking & Pre-installation Carefully remove the CommandStik and place it on a flat surface, taking care not to scratch the lenses or damage the cable coming out of the top. Examine the unit for transit damage, broken lamps, etc. Report any damage to the carrier and keep the shipping carton. -
Page 3: Installation & Mounting
Using the CommandStik assembly as a template, locate the CommandStik in the desired location for the light bar in the vehicles rear deck area and mark the location of the customer supplied carriage bolts using the square holes in the CommandStik 90 degree mounting brackets. - Page 4 6 HEAD ARROWSTIK W (2) OUTER LIGHT HEADS FLASHING ALTERNATELY The CommandStik can be configured as a 6 or 8 head ArrowStik. To change the CommandStik from an 8 head ArrowStik to a 6 Light Head configuration with the (2) Outboard Light Heads flashing alternately, remove the mounting screws that attach the CommandStik's Cover to the Outer Panel to gain access to the printed circuit board inside (see the exploded view on page 6).
-
Page 5: Flash Pattern Selection
SIMULTANEOUS QUAD FLASH, 75 FPM, NFPA COMPLIANT Troubleshooting All CommandStik Products are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the factory technical help line at 314-996-2800. -
Page 6: Exploded View-Parts List
Outer Panel T15552 Chassis T15551 AS-10 Universal Mounting Bracket S50008 Torus™ Module *Contact Code 3, Inc for P/N Up to 8 .625 Diameter Cap T04797 Circuit Board Assembly T11568 Internal tooth starwasher .250 T06935 1/4-20 x 3/8" Phil Pan Hd, Black Zinc, Stl T89965 .750 Diameter Cap... -
Page 7: Notes
Notes... -
Page 8: Warranty
*Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.
