Code 3 CODE 360 Installation & Operation Manual page 14

Electronics Module Removal
In the event that the power supply or a strobe lamp assembly must be returned to the factory for service, mark each wire with a tag
to identify each function and note the proper location before disconnecting the wiring. Figure 9 can be used to mark the locations of
the individual connections as well.

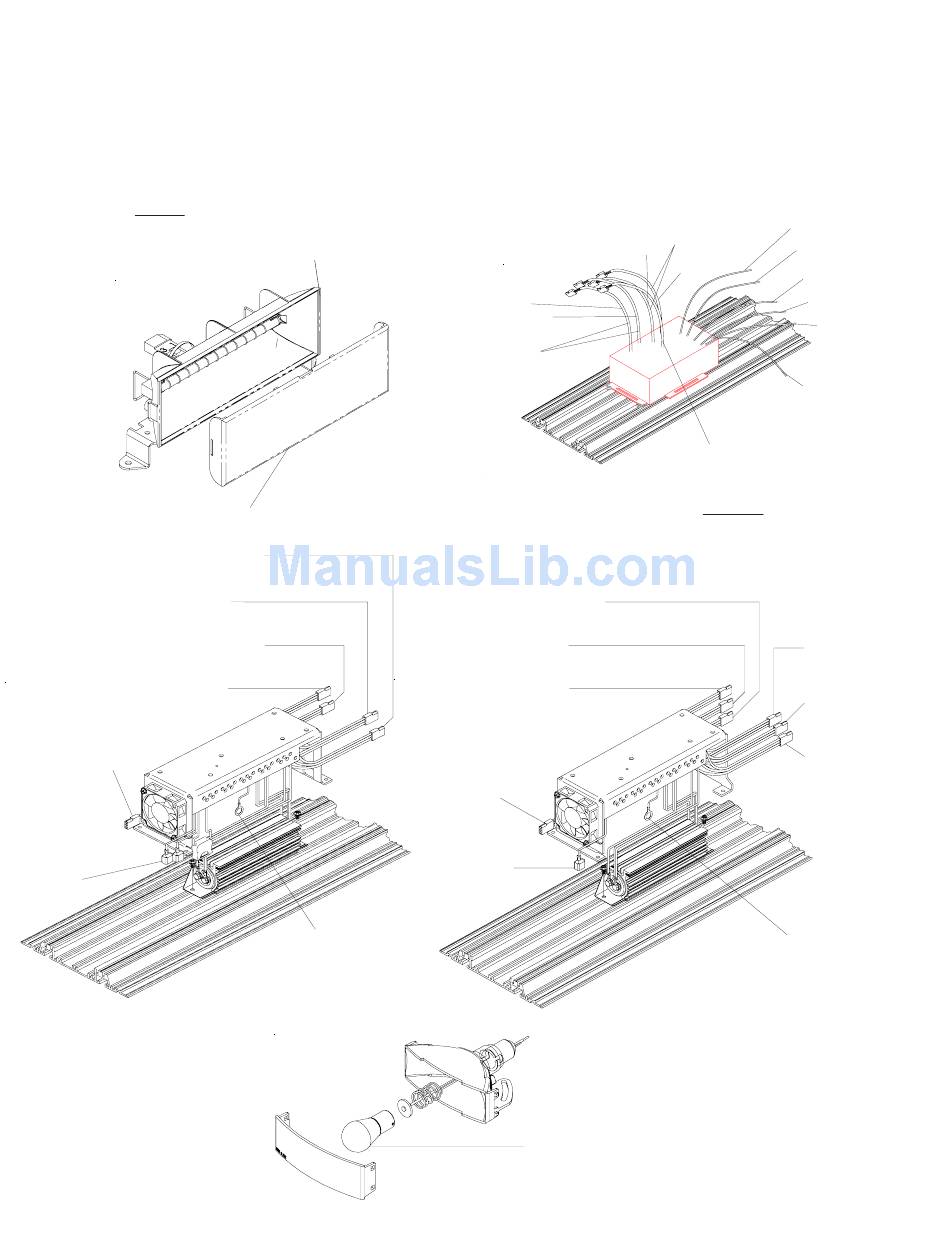

Refer to Figure 9 for power supply removal. Remove the four (4) screws holding the power supply. Disconnect the wire leads, and
move the power supply to the side. Remove the 2 screws holding the capacitor assembly and lift the strobe power supply/capacitor
assembly from the lightbar as a unit. To reinstall the power supply reverse the above steps.
Caution: Verify that wires are not pinched or damaged when reinstalling power supply.
