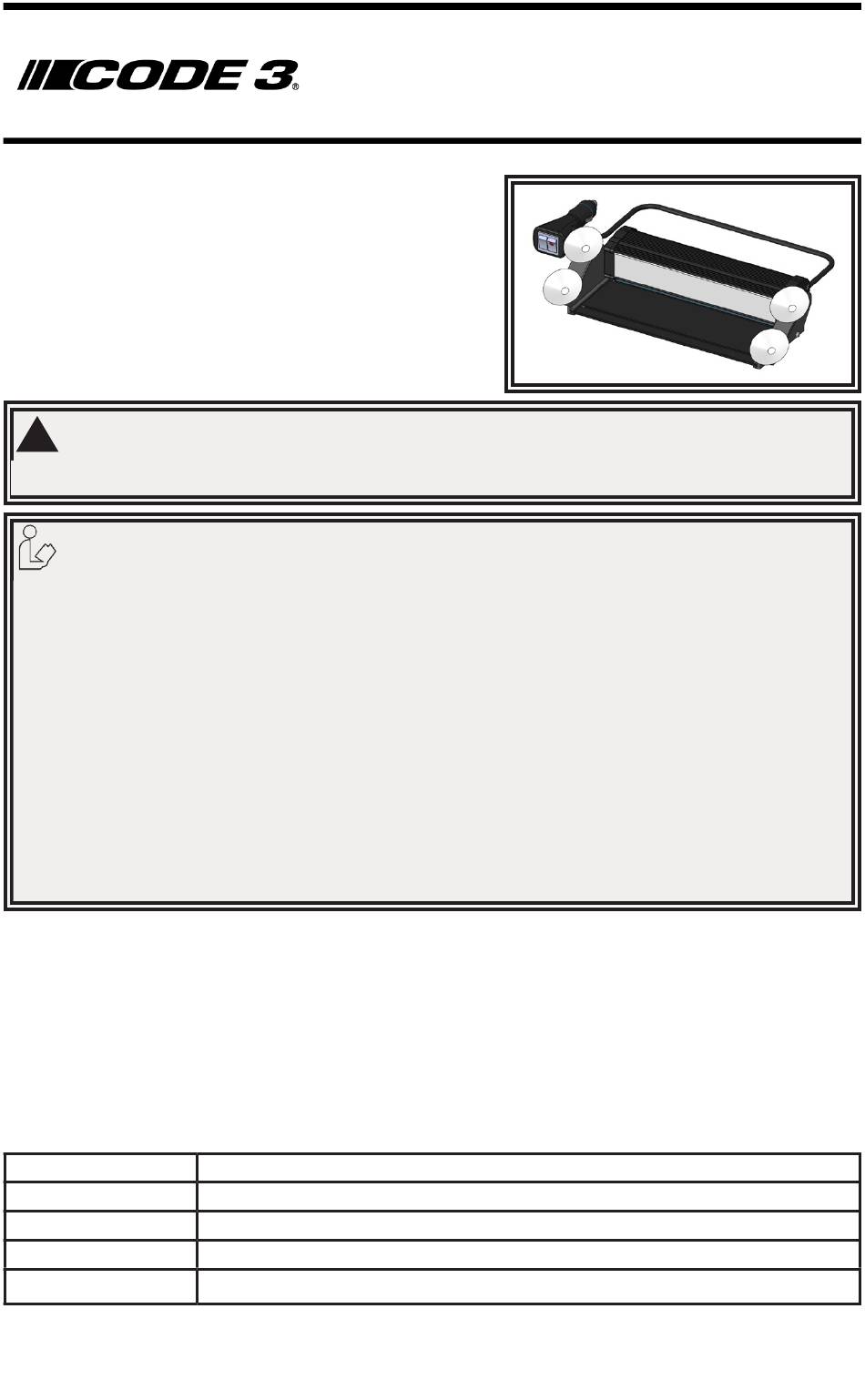

Code 3 CD8101 Series Installation And Operating

Code 3's CD8101 series LED heads are compact and versatile high intensity
directional LED warning lights suitable for mounting anywhere on a vehicle.
Colorless until illuminated, these discrete LED heads feature encapsulated
electronics offering a high degree of environmental and vibration protection. Each
model is supplied with temporary (window) mounting hardware. The CD8101
Series features 29 flash patterns.
!
WARNING!
Failure to install or use this product according to manufacturers recommendations may result in property damage, serious injury, and/or
death to those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understand the safety information
contained
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to
ensure the safety of you and those you are seeking to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current
arcing, which can cause personal injury and/or severe vehicle damage, including fire.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance
of the system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system
without losing eye contact with the roadway.
5. Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag
deployment area may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death.
Refer to the vehicle owner's manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suit-
able mounting location ensuring the safety of all passengers inside the vehicle particularly avoiding areas of potential head impact.
6. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle
operator should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment
doors), people, vehicles or other obstructions.
7. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal. Never take
the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against
traffic, responding at a high rate of speed, or walking on or around traffic lanes.
8. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws
regarding warning signal devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The
manufacturer assumes no liability for any loss resulting from the use of this warning device.
CONTENTS:
CD8101VDL2 DUAL HEAD STANDARD
1 - CD8101 Dual LED Head with windshield bracket
1- Universal Mounting Bracket
4 - Suction Cups
3 - Mounting Tape Strips
1 - Manual
4 - Screws M4 x 16mm
SPECIFICATIONS:
Input Voltage
Input Current
Size (W x L x H) Include Shield
Flash Patterns
920-1065-00 Rev. B
Installation and Operating Intructions
Grill/Deck/Dash LED Heads
CD8101VDL2
12-24VDC
1.0 Amps peak @ 12VDC, 0.4A AVG @ 12VDC
255.2 x 88.5 x 53.2mm
29
Page 1 of 4
