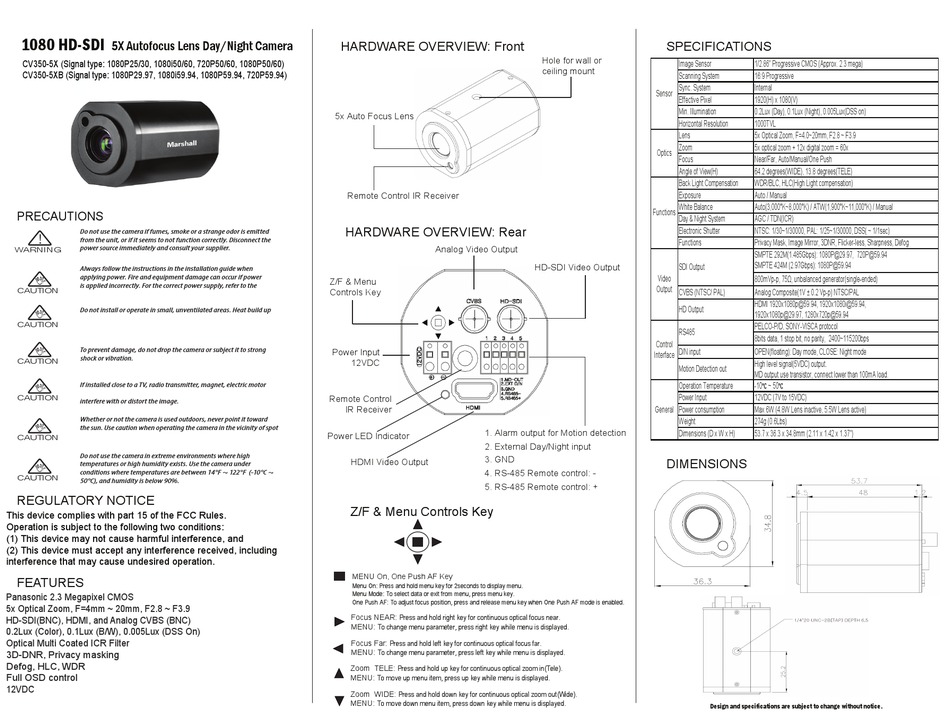

Marshall Amplification CV350-5X Manual

1080 HD-SDI

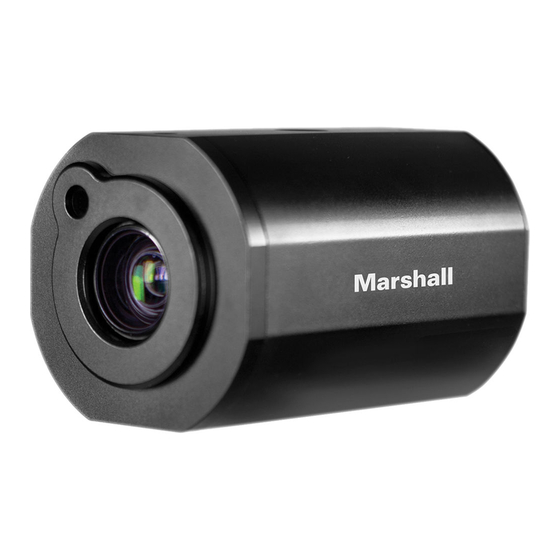

5X Autofocus Lens Day/Night Camera
CV350-5X (Signal type: 1080P25/30, 1080i50/60, 720P50/60, 1080P50/60)
CV350-5XB (Signal type: 1080P29.97, 1080i59.94, 1080P59.94, 720P59.94)

PRECAUTIONS

Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power

is applied incorrectly. For the correct power supply, refer to the
CAUTION
Do not install or operate in small, unventilated areas. Heat build up

CAUTION
To prevent damage, do not drop the camera or subject it to strong

shock or vibration.
CAUTION
If installed close to a TV, radio transmitter, magnet, electric motor

CAUTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward

the sun. Use caution when operating the camera in the vicinity of spot
CAUTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under

conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CAUTION
50°C), and humidity is below 90%.

REGULATORY NOTICE

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

FEATURES

Panasonic 2.3 Megapixel CMOS
5x Optical Zoom, F=4mm ~ 20mm, F2.8 ~ F3.9
HD-SDI(BNC), HDMI, and Analog CVBS (BNC)
0.2Lux (Color), 0.1Lux (B/W), 0.005Lux (DSS On)
Optical Multi Coated ICR Filter
3D-DNR, Privacy masking
Defog, HLC, WDR
Full OSD control
12VDC

HARDWARE OVERVIEW: Front

5x Auto Focus Lens
Remote Control IR Receiver

HARDWARE OVERVIEW: Rear

Analog Video Output
Z/F & Menu
Controls Key
Power Input
12VDC
Remote Control
IR Receiver
1. Alarm output for Motion detection
Power LED Indicator
2. External Day/Night input
3. GND
HDMI Video Output
4. RS-485 Remote control: -
5. RS-485 Remote control: +
Z/F & Menu Controls Key
MENU On, One Push AF Key
Menu On: Press and hold menu key for 2seconds to display menu.
Menu Mode: To select data or exit from menu, press menu key.
One Push AF: To adjust focus position, press and release menu key when One Push AF mode is enabled.
Focus NEAR: Press and hold right key for continuous optical focus near.
MENU: To change menu parameter, press right key while menu is displayed.
Focus Far: Press and hold left key for continuous optical focus far.
MENU: To change menu parameter, press left key while menu is displayed.
Zoom TELE: Press and hold up key for continuous optical zoom in(Tele).
MENU: To move up menu item, press up key while menu is displayed.
Zoom WIDE: Press and hold down key for continuous optical zoom out(Wide).
MENU: To move down menu item, press down key while menu is displayed.

SPECIFICATIONS

Hole for wall or
Image Sensor
ceiling mount
Scanning System
Sync. System
Sensor
Effective Pixel
Min. Illumination
Horizontal Resolution
Lens
Zoom
Optics
Focus
Angle of View(H)
Back Light Compensation
Exposure
White Balance
Functions
Day & Night System
Electronic Shutter
Functions
HD-SDI Video Output SDI Output
Video
Output
CVBS (NTSC/ PAL)
HD Output
RS485
Control
D/N input
Interface
Motion Detection out
Operation Temperature
Power Input
General
Power consumption
Weight
Dimensions (D x W x H)

DIMENSIONS

Design and specifications are subject to change without notice.
1/2.86" Progressive CMOS (Approx. 2.3 mega)
16:9 Progressive
Internal
1920(H) x 1080(V)
0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
1000TVL
5x Optical Zoom, F=4.0~20mm, F2.8 ~ F3.9
5x optical zoom + 12x digital zoom = 60x
Near/Far, Auto/Manual/One Push
64.2 degrees(WIDE), 13.8 degrees(TELE)
WDR/BLC, HLC(High Light compensation)
Auto / Manual
Auto(3,000°K~8,000°K) / ATW(1,900°K~11,000°K) / Manual
AGC / TDN(ICR)
NTSC: 1/30~1/30000, PAL: 1/25~1/30000, DSS( ~ 1/1sec)
Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog
SMPTE 292M(1.485Gbps): 1080P@29.97, 720P@59.94
SMPTE 424M (2.97Gbps): 1080P@59.94
800mVp-p, 75Ω, unbalanced generator(single-ended)
Analog Composite(1V ± 0.2 Vp-p) NTSC/PAL
HDMI 1920x1080p@59.94, 1920x1080i@59.94,
1920x1080p@29.97, 1280x720p@59.94
PELCO-P/D, SONY-VISCA protocol
8bits data, 1 stop bit, no parity, 2400~115200bps
OPEN(floating): Day mode, CLOSE: Night mode
High level signal(5VDC) output.
MD output use transistor, connect lower than 100mA load.
-10℃ ~ 50℃
12VDC (7V to 15VDC)
Max 6W (4.8W Lens inactive, 5.5W Lens active)
274g (0.6Lbs)
53.7 x 36.3 x 34.8mm (2.11 x 1.42 x 1.37")
