Atmor New Installation Instructions

3.5-9.5KW - Basic Only
1. Multi-pole switch
2. Terminal block
3. Thermostat
4. Microswitch
5. Switches
6. LED Light
7. Heating elements
8. Pressure switch

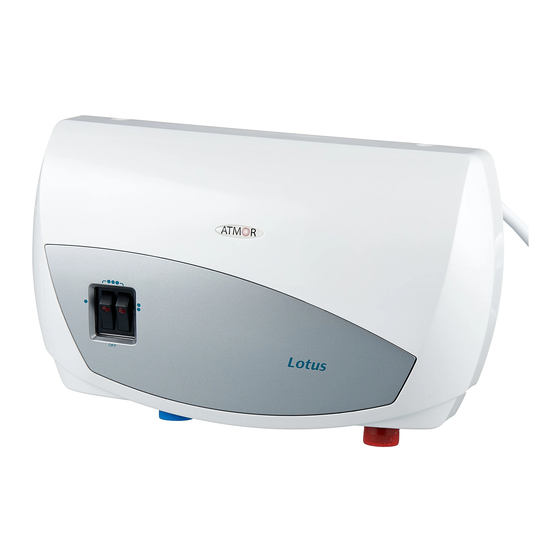

NEW / Lotus models
Up to 6.0kW (One Phase)
Also for 2x127V (2~) for Latin America
1. Multi-pole switch
2. Terminal block
3. Thermostat
4. Microswitch
5. Switches
6. LED Light
7. Heating elements
8. Pressure switch
Model Heating Setting
Model - 3.0 1.0;2.0 or 3.0kW
Model - 3.5 1.5;2.0 or 3.5kW
Model - 5.0 2.0;3.0 or 5.0kW
Model - 5.5 2.5;3.0 or 5.5kW
Model - 7.0 3.0;4.0 or 7.0kW
Model - 8.0 4.0;4.0 or 8.0kW
Model - 9.5 4.5;5.0 or 9.5kW
• Operating water pressure 0.3-7 BAR (5-100 psi) • Water pressure operating power switch
• Standard 1/2"Ø compression inlet connection • Top-left and right cable entry • Bottom-left water entry
UNIT DIMENSIONS: HEIGHT 185mm WIDTH 300mm DEPTH 110mm
7.0kW-9.5kW (One Phase)
Also for 127V up to 5.0kW
7.0kW-9.5kW (Two Phase)
kW Loading Recommended Recommended
Cable Size Fuse Rating
220V 230V 240V
3.0 3.3 3.6 2.5mm 2
3.2 3.5 3.8 2.5/4mm 2
5.0 5.5 6.0 4/6mm 2
5.5 6.0 6.6 4/6mm 2 25-32amps
7.0 7.7 8.3 6/10mm
2
7.3 8.0 8.7 6/10mm 2
8.7 9.5 10.3 10mm 2
New/Lotus/Basic
Instant Water Heater
16amps
20amps
25amps
40amps
40amps
45amps
Installation Instructions
