5X5 VGA Matrix Switch with Audio and

Ethernet Support

Model #: SW-VGA-5X5
© 2012 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
www.avenview.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-VGA-5X5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avenview SW-VGA-5X5

  • Page 1: Ethernet Support

    No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
  • Page 2: Table Of Contents

    Package Contents ........................6 Before Installation........................6 Panel Description ........................7 1.7.1 SW-VGA-5X5 .......................... 7 1.7.2 SW-VGA-5X5 Rear Panel ....................... 7 Software Control via RS232 or Ethernet Port ................ 8 Setting Button ........................9 IR Remote Control ........................ 15 1.10 Installation ...........................
  • Page 3: Section 1: Getting Started

    Removal, installation, and set-up service charges. Safety Instructions The SW-VGA-5X5 VGA Matrix with Audio and Ethernet support has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, SW-VGA-5X5 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 4: Regulatory Notices Federal Communications Commission (Fcc)

    Therefore, SW-VGA-5X5 offers the most convenient and cost effective means for swift switch of high quality PC graphics and HDTV videos with crystal clear audio in the market. With equipped audio matrix, SW-VGA-5X5 is ready to be as YPbPr (Component) matrix with stereo audio and ideally for boardroom, showroom, and exhibition.
  • Page 5 www.avenview.com...
  • Page 6: Package Contents

    Package Contents Before you start the installation of the converter, please check the package contents. SW-VGA-5X5 IR Remote Control Power Adapter (+5VDC) Mounting Brackets Software CD User’s Manual Before Installation  Put the product in an even and stable location. If the product falls down or drops, it may cause an injury or malfunction.
  • Page 7: Panel Description

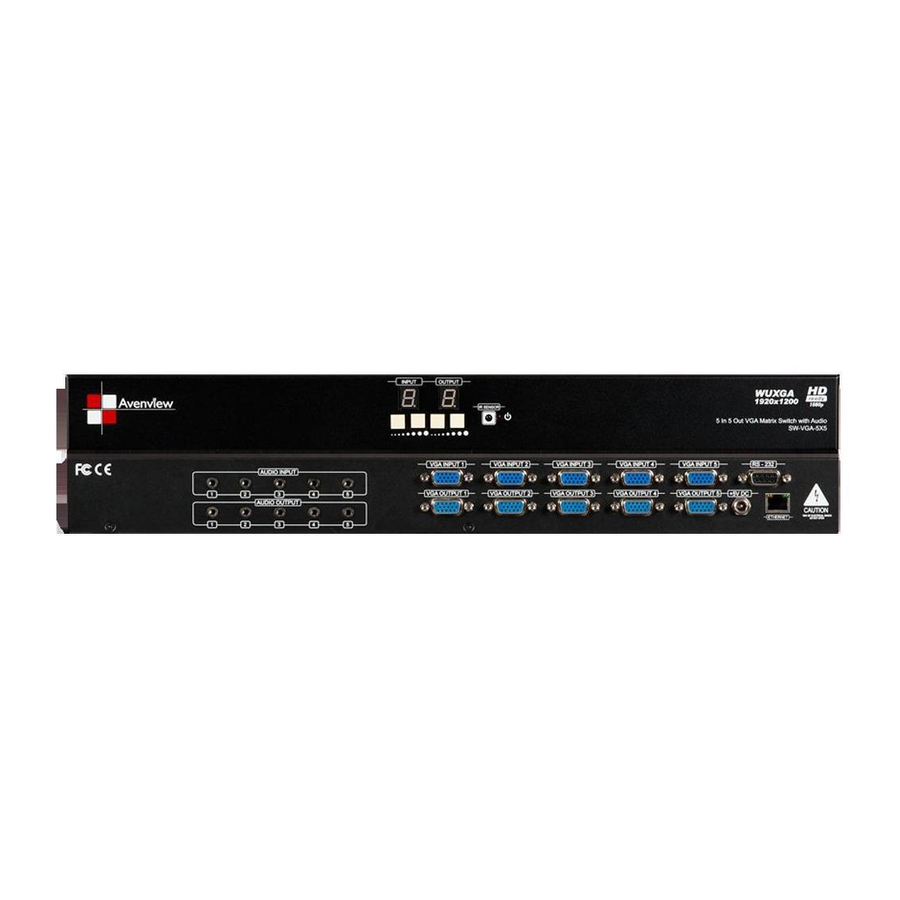

    2. Input Display LED 3. Select Output 4. Select Input 5. IR Sensor 6. Power Indication LED 7. Ext. IR: IR Receiver 1.7.2 SW-VGA-5X5 Rear Panel 12 14 8. Analog Audio Inputs 9. Analog Audio Outputs 10. VGA Inputs 11. VGA Outputs 12.
  • Page 8: Software Control Via Rs232 Or Ethernet Port

    Software Control via RS232 or Ethernet Port VGA input source selection area VGA output port selection area Status indicator Software Control Menu www.avenview.com...
  • Page 9: Setting Button

    Please notice that Ethernet control has a higher priority than RS-232. If RS-232 and Ethernet controls come from 2 different hosts, commands may coincide and in this case, commands from Ethernet will be effective immediately no matter whether commands from RS-232 are accurately sent and executed! www.avenview.com...
  • Page 10 And set device ID 255 is for all device. Only the same device id or 255 can get the command you sent. Click OK. Get the new status from the machine you select. 3. Linkage Button: Click Linkage button to read back all status. www.avenview.com...
  • Page 11 Unselect All Output Release output selection. Select Input1~5-Output Select Input Source. Then select the output port icon. For example Select input source 1. Select output port 1 and 2. The video and audio will be sent to port 1 and 2. www.avenview.com...
  • Page 12 Input two > Output Port two ….. Click Fast select pull down menu. Select Input Num-Output Num Input source #1 > Output port #1 Input source #2 > Output port #2 ….. Select Input* - All Output Send the same source to all output. www.avenview.com...
  • Page 13 The linking line will change to yellow. Group setting First select output ports one by one. Then select the input source. The selected output ports change the setting at the same time. By using Terminal: Baud rate: 9600 Data length: 8bit Parity check: Stop bit: www.avenview.com...
  • Page 14: Command Set

    Output E selects Input 4 Output B selects Input 5 Output E selects Input 5 Output C selects Input 1 Output C selects Input 2 Output C selects Input 3 Output C selects Input 4 Output C selects Input 5 www.avenview.com...
  • Page 15: Ir Remote Control

    VGA input port #4 INPUT 5 VGA input port #5 OUTPUT 1 VGA output port #1 OUTPUT 2 VGA output port #2 OUTPUT 3 VGA output port #3 OUTPUT 4 VGA output port #4 OUTPUT 5 VGA output port #5 www.avenview.com...
  • Page 16 www.avenview.com...
  • Page 17: Installation

    To setup Avenview SW-VGA-5X5, follow these steps: 1. Connect VGA enable equipment’s to the outputs of SW-VGA-5X5. 2. Connect the VGA input sources to the inputs of SW-VGA-5X5. 3. Plug power adapter cable into 5V DC power jack. Use IR Remote, Ethernet, RS-232 serial commands, or front panel push button to switch among inputs.
  • Page 18: Section 2: Specifications

    2 Section 2: Specifications Item Description Units SW-VGA-5X5 Unit Description VGA Matrix Switch with Audio and Ethernet Supported Input / VGA / Component Output Video Bandwidth 400 MHz Supported Resolutions 1080p 60, WUXGA (1920x1200 @ 60Hz) Audio Support Analog Stereo 5 x VGA 5 x 3.5mm...
  • Page 19 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
