Avenview

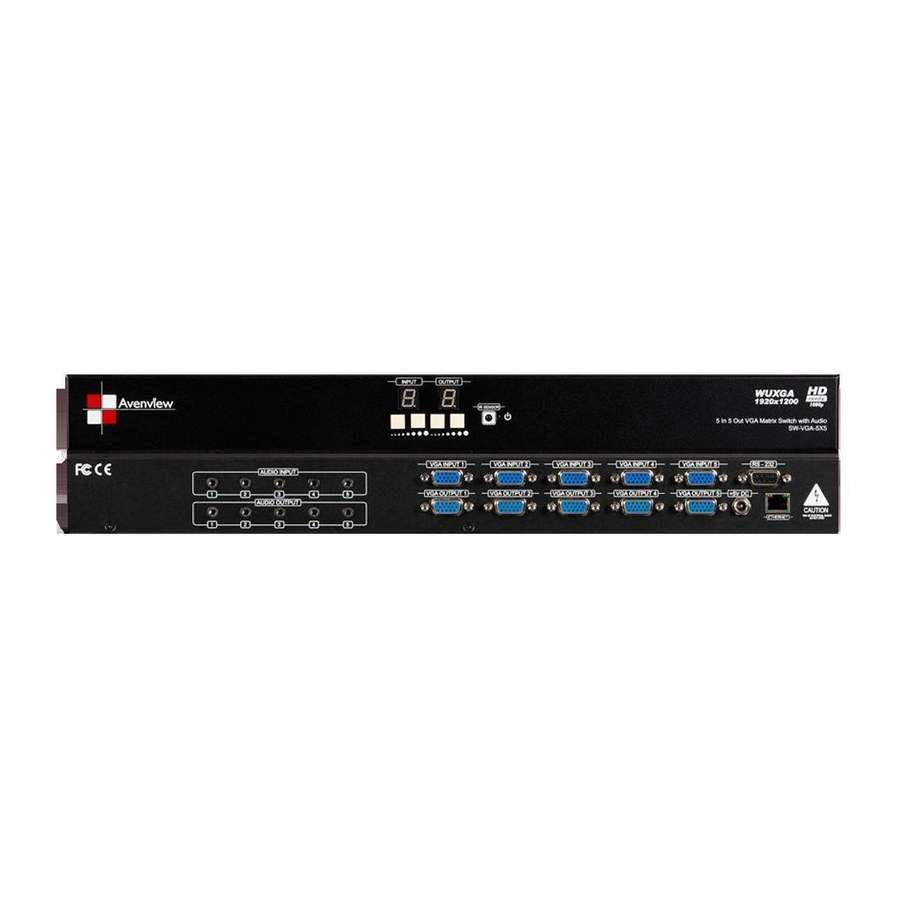

5 In 5 Out VGA Matrix Switch with Audio
Model #: SW-VGA-5X5
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no
representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the
right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied,
or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms
and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its
products of Avenview Inc. is strictly prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-VGA-5X5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avenview SW-VGA-5X5

Summary of Contents for Avenview SW-VGA-5X5

  • Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its...

  • Page 2: Table Of Contents

    Section 1: Getting Started ...1 Important Safeguards ...1 Safety Instructions ...1 Regulatory Notices Federal Communications Commission (FCC) ...2 Introduction ...2 Features ...2 Package Contents ...2 Before Installation ...3 Panel Description ...3 Channel Control ...4 Section 2: Installation ...8 Section 3: Specifications ...9 Table of Contents...

  • Page 3: Section 1: Getting Started

    Removal, installation, and set-up service charges. Safety Instructions The SW-VGA-5X5, Avenview 5 in 5 Out VGA Matrix Switch with Audio has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SW-VGA-5X5 should be used with care.

  • Page 4: Regulatory Notices Federal Communications Commission (Fcc)

    Introduction This SW-VGA-5X5 is a 5 input 5 output commercial VGA with audio matrix switcher. The SW-VGA-5X5 is one of the world's advanced matrix switchers. It is capable of being controlled though RS-232 via software included or via a third party control system. Switcher is designed to handle any resolution up to 1920x1200 or 1080p without any signal degradation.

  • Page 5: Before Installation

    7. Power Indicator REAR PANEL 9. Audio Inputs 11. Video Inputs 13. 5V DC Power Avenview 2 3 4 5 2. Decrease of Input Channels 4. Decrease of Output Channels 6. IR Receiver 8. Display of the Selected Input Channel 10.

  • Page 6: Channel Control

    VGA input port #1 VGA input port #2 VGA input port #3 VGA input port #4 VGA input port #5 VGA output port #1 VGA output port #2 VGA output port #3 VGA output port #4 VGA output port #5 www.avenview.com Avenview...
  • Page 7 Example Rename the Input1 to “Main PC”, Input2 to “Sub PC,” input3 to “PC-3,” … etc., and rename output1 to “Conf. RM1,” output2 to “Main monitor,” output3 to “Lobby,” output4 to “Main projector,” … etc. Avenview www.avenview.com...
  • Page 8 ….. From Fast Select pull down menu: Select Input Num-Output Num Input source #1  Output port #1 Input source #2  Output port #2 ….. Select Input - All Output Send the same source to all output www.avenview.com Avenview...
  • Page 9 Group setting First select output ports one by one. Then select the input source. The selected output ports change the setting at the same time. By using Terminal: Baud rate: 9600 Data length: 8bit Parity check: Stop bit: Avenview www.avenview.com...

  • Page 10: Section 2: Installation

    Follow these instructions for installation of SW-VGA-5X5: Connect VGA enable equipments to the outputs of SW-VGA-5X5. Connect the VGA input sources to the inputs of SW-VGA-5X5. Plug power adapter cable into 5V DC power jack. Use IR Remote, RS-232 serial commands, or front panel push button to switch among inputs.

  • Page 11: Section 3: Specifications

    VGA sockets. For S-Video inputs/outputs, please find a VGA-to-S-video adapter to connect to the VGA sockets. Avenview Description SW-VGA-5X5 (VGA Matrix Switch) VGA / Component / S-video / Composite* 400 MHz 1080p60, WUXGA (1920x1200@60) & UXGA (1600x1200@60) HD (720p/1080i) –...
  • Page 12 Avenview hardware, software, or other products and documentation provided herein. Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
