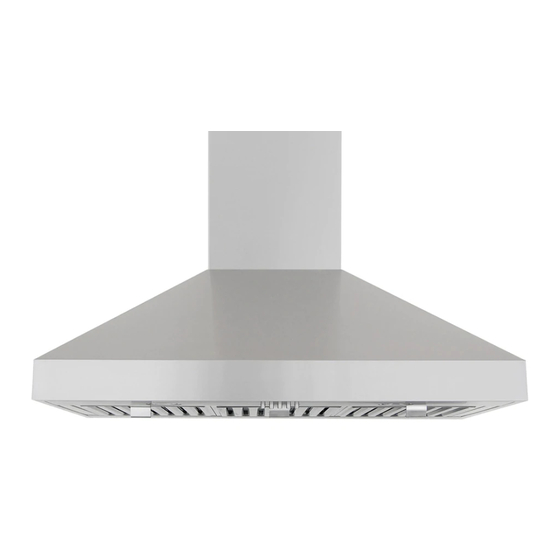

RA-60TB30SS
RA-60TB36SS
RA-60TB42SS
RA-60TB48SS
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7 DAYS
OF DELIVERY WILL BE DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
www.windsterhood.com
Advertisement
Table of Contents
Related Manuals for Windster RA-60TB30SS
Summary of Contents for Windster RA-60TB30SS
- Page 1 RA-60TB30SS RA-60TB36SS RA-60TB42SS RA-60TB48SS NOTE: PLEASE INSPECT HOOD IMMEDIATELY UPON RECEIVING. CLAIM OF DAMAGE AFTER 7 DAYS OF DELIVERY WILL BE DENIED. This unit is designed for indoor residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Safety Information .............. 2 Content Checklist ..............4 Measurements ................5 Preparation ................6 Installation ................7 Installation Diagram ..............9 Operation & Features ............. 10 Cleaning & Maintenance ............12 Troubleshooting ..............13 Part List / Replacement ............ -
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK, AND/OR INJURY OBSERVE THE FOLLOWING: Unit is intended for indoor residential use only. If you should have questions, contact the manufacturer at the address or telephone number listed in the warranty. - Page 4 SAFETY INFORMATION TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE. Regardless of heat level, never leave any surface materials unattended while operating an open flame. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
-
Page 6: Measurements
MEASUREMENTS... -
Page 7: Preparation
PREPARATION PREPARATION BEFORE YOU START **BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT** **DO NOT INSTALL IF DAMAGED** **RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED** Be sure you have all the content of your purchase and required tools for this installation. -
Page 8: Installation
INSTALLATION INSTALLATION 1. WALL MOUNT INSTALLATION Make sure all preparation steps are completed. Determine your ceiling height to see if you need an extension. i. Hood unit height = 12- ii. Duct cover minimumheight = 19 iii. Duct cover maximum height = 35-1/2 iv. - Page 9 INSTALLATION 3. COLD WEATHER INSTALLATION (OPTIONAL) Check with your local building codes to see if a CFM reducer is an acceptable alternative to make-up air. Remove the RA-60TBCFMR (CFM reducer) and inspect for any sign of defect or damage. (ie. Cracks, broken flips) AFTER COMPLETING Step A G of Section 1 WALL MOUNT INSTALLATION...
-
Page 10: Installation Diagram
INSTALLATION DIAGRAM INSTALLATION DIAGRAM... -
Page 11: Operation & Features
OPERATION & FEATURES OPERATION & FEATURES EASY ACCESS CONTROL SWITCH (from left to right) Button 1 Power ON / OFF Button 2 Low speed Button 3 Medium speed Button 4 High speed Button 5 Lights ON/OFF BAFFLE FILTERS (2) 14-7/8 10-5/8 (3) 14-7/8 10-5/8... -
Page 12: Cleaning & Maintenance
CLEANING & MAINTENANCE CLEANING& MAINTENANCE WARNING!!! To prevent the possibility of a fire and explosion, do not use flammable liquids or solvents to clean the unit or any of its parts. Check to make sure all power sources are disconnected before servicing or taking unit apart for cleaning. -
Page 13: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING WARNING!!! Check to make sure all power sources are disconnected before starting any troubleshooting. Safety gloves and glasses should be worn when working on the unit. Serious injury or death may occur if safety precautions are not followed. RA-60TB Series Light issue (All not New transformer/ driver replacement is required. -
Page 14: Part List / Replacement
PART LIST / REPLACEMENT PART LIST / REPLACEMENT Description Description Duct cover bracket Control Bracket Duct cover LED transformer Duct cover holder Capacitor Hood bracket Squirrel cage motor Hood body assembly Oil collector LED lights Baffle filters Switch... -
Page 15: Warranty / Contact Us
WARRANTY / CONTACT US WARRANTY / CONTACT US LIMITED WARRANTY Windster Hoods Inc. warrants its product against defects in material or workmanship as follows: Labor: For a period of one (1) year from the date of purchase, if the product is determined to be defective, Windster will attempt to repair the product, at its option, at no charge. - Page 16 WARRANTY / CONTACT US WHAT IS NOT COVERED BY MANUFACTURE WARRANTY Damages resulting from any of the following: Improper installation or maintenance Any repair, modification, alteration or adjustment not authorized by the manufacturer or an authorized service dealer Misuse and/or accidents Incorrect electric current, voltage or power supply Improper setting of any control (Pressing multiple selections at the same time)
