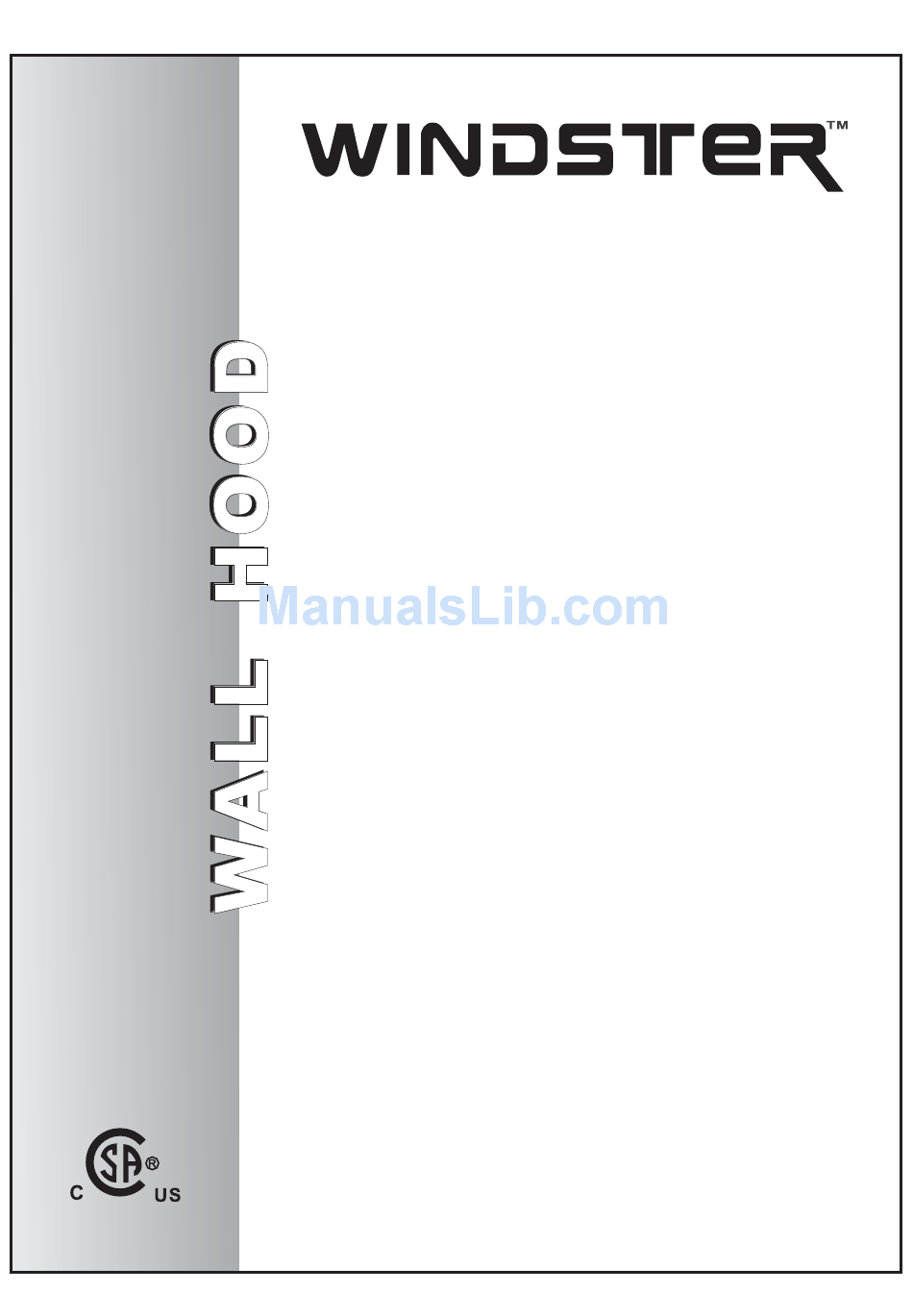

Page 1: Operation Manual
OPERATION MANUAL RA-1430C / RA-1490C Please read and save this guide through before using your range hood Store the guide away in a safe place so that you will know where it is when you want to refer to it... -
Page 2: Table Of Contents
Table of contents Important safety Instructions ---------------------------- Safety notes ------------------------------------------------------ Tools and materials required ---------------------------------- L E D l i g h t r e p l a c e m e n t - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Accessories ------------------------------------------------- Troubleshooting --------------------------------------------------... -
Page 3: Important Safety Instructions
A. IMPORTANT SAFETY INSTRUCTIONS Read and Save These Instructions 1. Make sure the power is off before installing, wiring or maintenance. 2. Please keep the range hood clean. 3. To get the best performance, the vertical clearance between the cook- top and the range hood should range from 28”... - Page 4 WARNING - To reduce the risk of fire, electric shock, or injury, observe the following: A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. B. Before servicing or cleaning the unit, switch the power for service panel and lock panel, to prevent power from being switched on accidentally.
-
Page 5: Safety Notes
WARNING- To reduce the risk of injury in the event of a range top grease fire, observe the following: SMOTHER FLAMES with a close- fitting lid, cookie sheet, or metal tray, then turn off the burner. Be careful to prevent burns. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. - Page 6 Wiring to Power Supply SAFETY WARNING RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
- Page 7 Installation and Maintenance must be carried out by qualified person only Body Mounting Fit the range hood body at the correct height , via the brackets to the mounting surface. (Refer Fig.4 for mounting screw measurements). Locate the hanging screw allowing a distance of 0.2 inch of the screw head to the wall. Chimney Ducting A.
-
Page 8: Tools And Materials Required
C. TOOLS AND MATERIALS REQUIRED ◆ One common screwdriver. ◆ Plier (for opening electrical knockout). ◆ Electrical wire and supplies to comply with local cords. ◆ Electrical power drill. D. REPLACEMENT LED LIGHT Note: Before replacing LED light ensure the unit is switched off, when you want to change the LED light, please always wear working gloves. -
Page 9: Accessories
MANUAL Manual Screws Ø4x32 RA-1430C Please read and save this guide through before using your range hood Store the guide away in a safe place so that you will know where it is when you want to refer to it Round Collar 6"... -
Page 10: Use And Care
I. USE AND CARE Note: Operate switches (Fig.7) ④ ③ ② ① Switch 1 : LED Fan speed indicator. Low speed - High speed Switch 2 : Speed switch (Three speed fan) Fig.7 Switch 3 : Light switch Switch 4 : Power switch and delay switch. Push once : Delayed shut off. -
Page 11: Parts Layout Diagram
J. PARTS LAYOUT DIAGRAM Model: RA-14 0C RA-1490C Duct cover-Mounting bracket Processor board Duct cover Capacitor support Plastic plate LED driver Hood-Mounting bracket Capacitor Rubber stand Squirrel cage Hood casing Aluminum filter LED Light 6”/7” round collar Control board... -
Page 12: Circuit Diagram
K. CIRCUIT DIAGRAM Fig.8 Details the internal electrical circuit of this range hood unit. Any faults with this unit should only be attended to by a qualified technician. Yellow Capacitor Brown White White Yellow Blue Motor Orange Gray Brown Yellow Black Brown White... -
Page 13: Specifications
* / 3.6 Vdc / 1500 maH Rotation Squirrel Cage Diameter Exhausting Duct 6" / 7" Round Outlets 120V / 60 Hz Voltage Appearance Treatment Brushed Stainless Steel * Specifications subject to change without prior notice. M. DIAGRAMS MODEL : RA-1430C / RA-1490C 35-3/4” 29-3/4”... -
Page 14: Limited Warranty
1) Labor: For a period of one (1) year from the date of purchase, if this product is determined to be defective, Windster will repair or replace the product, at its option, at no charge. After the warranty period, you must pay for all labor charges. - Page 15 EXCEPTIONS. Return Policy Windster offers only the best and highest quality products. If you are not satisfied with your purchase, please contact us within 3 business days of product arrival to obtain a Return Merchandise Authorization (RMA). Returns sent without a RMA will not be accepted.
- Page 16 . w i n d s t e r h o o d . c o m 2102 N. Seaman Ave., S. El Monte, CA 91733 TEL:(626)350-1015 (626)350-5215 FAX:(626)350-1254 © 2006-2008 Windster Hoods, Inc. Specifications subject to change without notice.
