8.

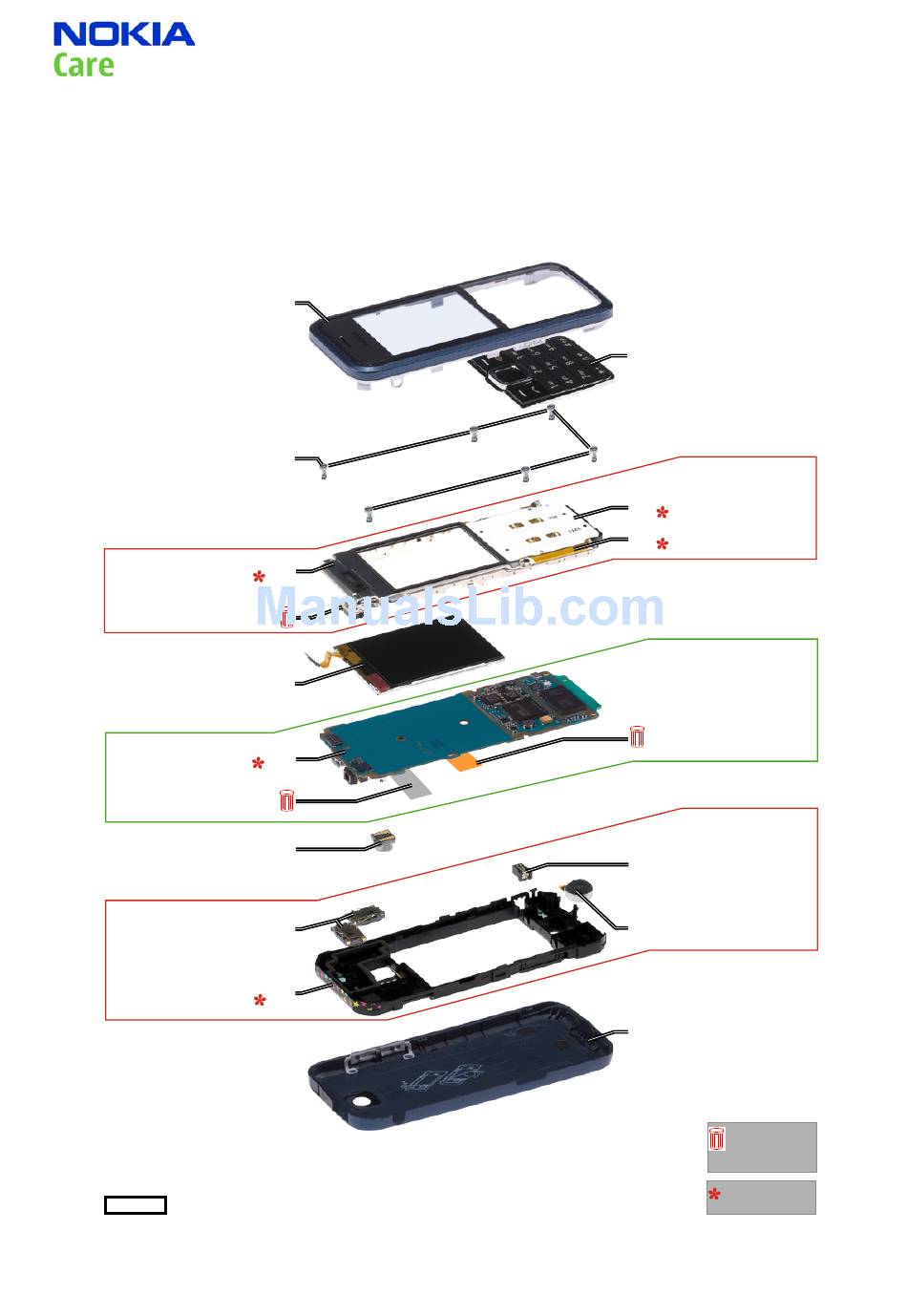

EXPLODED VIEW

See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
6xSCREW M1.4x5 REMFORM TORX PLUS 6IP
UI SHIELD ASSY (A1)
EARPIECE (A1)
LCD AM 240x320
LIGHT SWAP PWB (A2)
TYPE LABEL (A2)
(LEVEL 3&4 ONLY)
CAMERA MODULE 2MP SMIA65 UXGA
2xIHF SPEAKER 8x12 8R
REGTANGULAR (A3)
Ver. 3.0
Page 7 (14)
7310 Supernova RM-378/RM-379 EXPLODED VIEW
A-COVER ASSY
I0001
I0003
I0006
I0007
I0008
I0009
I0010
I0012
I0013
B-COVER (A3)
I0016
Copyright © 2008 NOKIA. All rights reserved.
CONFIDENTIAL
7310 Supernova RM-378/RM-379
Service Manual Level 1&2
KEYMAT
I0002
A1=UI ASSY
(I0004-I0007)
DOMESHEET (A1)
I0004
UI FLEX ASSY (A1)
I0005
A2=LIGHT SWAP PACKAGE
(I0009-I0011)
(LEVEL 3&4 ONLY)
ESD LABEL (A2)
(LEVEL 3&4 ONLY)
I0011
A3=B-COVER ASSY
(I0013-I0016)
CONN CHR DIA 2.0mm (A3)
I0014
VIBRA MOTOR JENNA (A4)
I0015
C-COVER ASSY
I0017
= These parts can
not be reused
after removal.
= only available as
assembly
ISSUE 1
