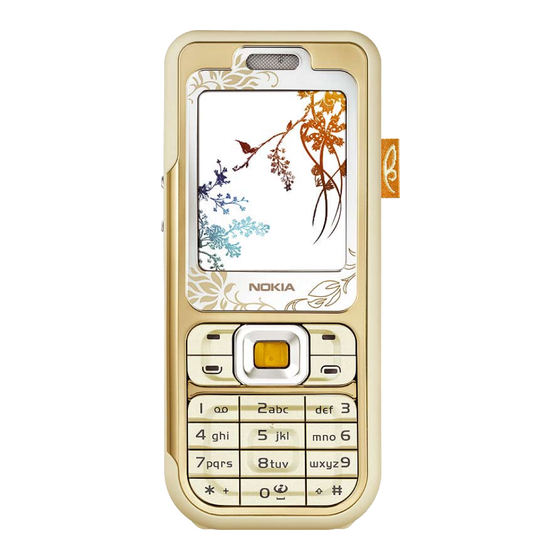

Nokia 7360 Service Manual

Hide thumbs Also See for 7360:
Table of Contents

Advertisement

Quick Links

See also: Service Schematics , User Manual
CMO Operations & Logistics
WW Competence Transfer
Multimedia Creation & Support
Service Manual 7360 RM-127
Page
CONFIDENTIAL
SERVICE MANUAL
Level 1&2
RM-127
1
(26)
Transceiver characteristics:
Band: Tri-band phone for GSM 900/1800/1900MHz
Camera: Integrated VGA camera
Display: Color display with 65,539 colors,
resolution 128 x 160 pixel
IRDA
FM radio
Connector: Pop Port™ connector
Transceiver with BL-5b 760mAh Li-Ion battery pack
Talk time
up to 4 h
Environmental characteristics:
•
Lead-free soldered
Copyright © 2005 NOKIA Corporation. All rights reserved.
Approved 1.0
21.11.2005
Standby
Note
Depends on network
up to 18 days
parameters
MGR

Advertisement

Table of Contents
loading

Related Manuals for Nokia 7360

Summary of Contents for Nokia 7360

  • Page 1 Transceiver with BL-5b 760mAh Li-Ion battery pack Talk time Standby Note Depends on network up to 4 h up to 18 days parameters Environmental characteristics: • Lead-free soldered Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 2: Table Of Contents

    CAMERA GONOGO TEST INFRARED TEST GONOGO TEST BATTERY TEST FORWARDING OF REPAIRS ESD PROTECTION REQUIREMENTS CHANGE HISTORY Status Version No. Date Comments Draft 11.11.2005 Initial draft Approved 21.11.2005 Approved Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 3: Introduction

    INTRODUCTION The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: General Repair Information

    There are several documents available on NOL, which have to be followed: • First, take care for the latest content pages of Service Bulletins, which are always available for each folder on NOKIA Online. This is also important to recognize, if existing documents have become invalid.

  • Page 5: Pathfinder For Workshop Staff

    NOKIA Online Care Services Training Phone Models Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the phone: Overview & Guides Disassembly & Assembly Troubleshooting Basic information about the phone,...

  • Page 6: Exploded View And Component Disposal

    A1= UI SHIELD ASSY A2= UI MODULE ASSY A3= B-COVER ASSY incl. A4 A4= IHF LID ASSY = only available as assembly PLASTIC COVER ELECTRO SILICON METAL Ver. 2.0 Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 7: Spare Parts Overview

    A4= IHF LID ASSY = only available as assembly TYPE LABEL SCREWS RF (LEVEL 3/4 ONLY) Ver. 2.0 TRIM PAINTED 1.8X7.4 T6+ C-COVER ASSY I038 I034 I036 I037 Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 8: Spare Parts List

    (spare parts, SWAP units and service tools) from NOL! This will ensure, that you are using up-to-date order codes only. Therefore Service Bulletins have to be checked from NOL on daily basis. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 9: Service Tools

    Inserted under the back cover, this Li-Ion 760 mAh battery provides power in a lightweight package. Headset HS-31 The Nokia Fashion Stereo Headset provides a convenient handsfree facility and the pleasure of listening to your compatible Nokia phone’s FM radio or MP3 player in stereo. SS-42 Camera removal tool.
  • Page 10 Wetec tweezers 13 SA-SMD ESD • Wetec tweezers PSF SA-ESD • Wetec ESD brush E1211 • Kaiser Fototechnik airbrush 6315 • Wetec dental tool DEM83266/0 • Components Scissors 323-5732 Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 11: Sw-Update

    To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 12: Disassembly Instruction

    7. Now place the SRT-6 between TRIM PAINTED and B-COVER ASSY 8..unlock it in the same way before on the other side. on the opposite side and ... Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 13 ASSY. 15. Note the four snaps of the UI PWB HOLDER. 16. Use a slotted screwdriver and release all four snaps by carefully sticking in to the holes. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 14 23. Slightly bend the UI SHIELD ASSY and press out the LCD 24. .Remove the ENGINE MODULE from the B-COVER ASSY MODULE. Prevent deforming the UI SHIELD ASSY Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 15 30. Remove the MICROPHONE. 31. Remove the DC-JACK with a DC PLUG. 32. Press the SIM-GRIP in the shown direction, and lift one side of it out of the B-COVER ASSY. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 16 Use always a new IHF SPEAKER slotted screwdriver as a lever to open the CAMERA SHIELD. ADHESIVE when assembling. assembling note the guide pin. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 17 42. Use the back side of the SS-42 to remove the CAMERA connector to release the snaps. MODULE. For assembling note the guide pin of the CAMERA MODULE and slot of the connector (white fingers). Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 18: Legend For Quick Trouble Shooter

    Page Approved 1.0 (26) CMO Operations & Logistics WW Competence Transfer 21.11.2005 Multimedia Creation & Support CONFIDENTIAL LEGEND FOR QUICK TROUBLE SHOOTER Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 19: Quick Trouble Shooter Part

    Page Approved 1.0 (26) CMO Operations & Logistics WW Competence Transfer 21.11.2005 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 1 Will be implemented soon! Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 20: Quick Trouble Shooter Part

    Page Approved 1.0 (26) CMO Operations & Logistics WW Competence Transfer 21.11.2005 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 2 Will be implemented soon! Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
  • Page 21 Page Approved 1.0 (26) CMO Operations & Logistics WW Competence Transfer 21.11.2005 Multimedia Creation & Support CONFIDENTIAL QUICK TROUBLE SHOOTER PART 3 Will be implemented soon! Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 22: Camera Gonogo Test

    • Select Options • Select Delete • Select Yes • Press the End button to reach the Home Menu If the test is failed see Quick Trouble Shooter. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 23: Infrared Test

    Test was successful, if you get the message “Business card received” on the Reference unit. You will not get a confirmation on sender device. • Press the End button to reach the Home Menu Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 24: Gonogo Test

    After the optical check, a GoNoGo test has to be carried out if the unit has been unscrewed to guarantee the functionality of the phone. Please refer to the actual information on NOKIA Online. When using delivered tester support files, take care of the right setup according to the tester type and product type.

  • Page 25: Forwarding Of Repairs

    Add repair documentation e.g. filled-in service note into the Fold the swap carton as shown in Spare Parts SB-004. swap carton. There are two different sizes of swap cartons for common mobile phones. Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.

  • Page 26: Esd Protection Requirements

    Grounded service equipment, i.e. soldering station Normal pressured air for cleaning modules/ ESD clothes such as coat or frock displays The video covers general issues concerning Electro-Static Discharge (ESD) Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
