SERVICE MANUAL
Level 1&2
RM-378
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.

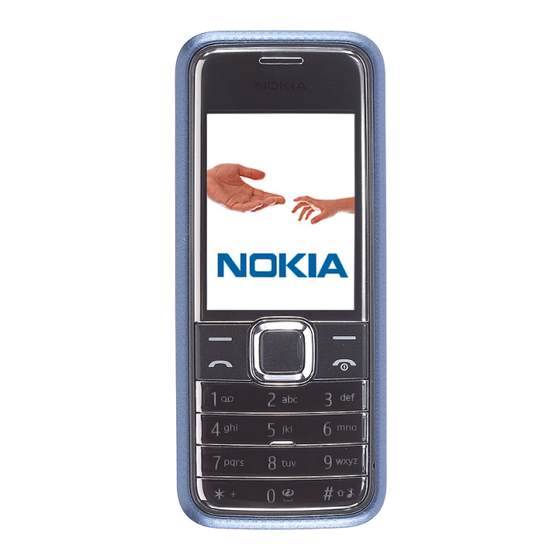

7310 Supernova RM-378/RM-379
RM-379
Transceiver characteristics:
Band:
RM-378: EGSM: Tri-band 850/1800/1900MHz
RM-379: GSM: Tri-band 900/1800/1900MHz
Display:
LCD: 5.08cm QVGA (2.0") (240x320 pixel); 16M colors
Camera:
Camera: 2.0 Megapixel SMIA65
Operating System:
Series 40
Connections:
Wireless: Bluetooth
Connector: Micro USB Connector; 2.5mm AV Connector
Memory:
MicroSD™ (max 4GB)
Transceiver with BL-4CT Li-Ion battery pack
Talk time
up to 3h
Service Manual Level 1&2
Standby
Note
Depends on network
up to 10days
parameters and
phone settings
ISSUE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7310 supernova and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nokia 7310 supernova

Summary of Contents for Nokia 7310 supernova

  • Page 1: Disassembly Instruction

    Connector: Micro USB Connector; 2.5mm AV Connector Memory: MicroSD™ (max 4GB) Transceiver with BL-4CT Li-Ion battery pack Talk time Standby Note Depends on network up to 3h up to 10days parameters and phone settings Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 2: Table Of Contents

    WARNINGS AND CAUTIONS ESD PROTECTION CARE AND MAINTENANCE BATTERY INFORMATION PRODUCT CONTROLS & INTERFACES OVERVIEW EXPLODED VIEW LEVEL 2 SOLDER COMPONENTS SERVICE DEVICES SW-UPDATE DISASSEMBLY INSTRUCTION ASSEMBLY HINTS Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 3: Change History

    Approved The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential.

  • Page 4: Warnings And Cautions

    5. Ensure all cables and wires are repositioned correctly. ESD PROTECTION Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone. Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

  • Page 5: Care And Maintenance

    Batteries’ performance is particularly limited in temperatures well below freezing. Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 6: Product Controls & Interfaces Overview

    ― Volume up key ― Volume down key ― Nokia AV connector (2.5mm) ― Camera lens ― Loudspeaker ― Battery cover release button ― Strap holder Ver. 2.0 Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 7: Exploded View

    VIBRA MOTOR JENNA (A4) REGTANGULAR (A3) I0015 I0013 B-COVER (A3) I0016 C-COVER ASSY I0017 = These parts can not be reused after removal. = only available as Ver. 3.0 assembly Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 8: Level 2 Solder Components

    Service Manual Level 1&2 LEVEL 2 SOLDER COMPONENTS 7310 Supernova RM-378/RM-379 Components overview Solder components only for LEVEL 2 X1001 G2200 E6000 F2000 E2911 E2910 X1002 E2165 E2164 Ver. 1.0 Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 9: Service Devices

    Service Bulletin (SB-011) on NOKIA On- line. Supplier or manufacturer contacts for tool re-order can be found in “Recom- mended service equipment” docu- ment on NOKIA Online. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 10: Sw-Update

    To use FLS-5 Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on NOKIA Online. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 11: Disassembly Instruction 1

    4. Remove the C-COVER. SRT-6. 5. Open the clips of the A-Cover beginning on the shown side. 6. Continue on the other side. 7. Remove the A-COVER. 8. Remove the Keymat. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.
  • Page 12 13. Remove the IHF Speakers using the SS-93. 14. Ensure that no adhesive remanis. 15. Take special care to the spring contacts on the PWB. 16. Carefully open the UI flex connector. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.
  • Page 13 19. Carefully open the LCD connector. 20. Use the SS-88 to remove the Camera Module. 21. Remove the Earpiece and discard it. 22. Ensure that no adhesive remains. Page (14) ISSUE 1 CONFIDENTIAL Copyright © 2008 NOKIA. All rights reserved.

  • Page 14: Assembly Hints 1

    7310 Supernova RM-378/RM-379 Service Manual Level 1&2 ASSEMBLY HINTS 1. Nokia 7310 Supernova Assembly Hints. 2. You will need the Standard Tool Kit v2 and the Camera Removal Tool SS-88. 3. Pay attention to the correct position when fitting the Camera 4.
