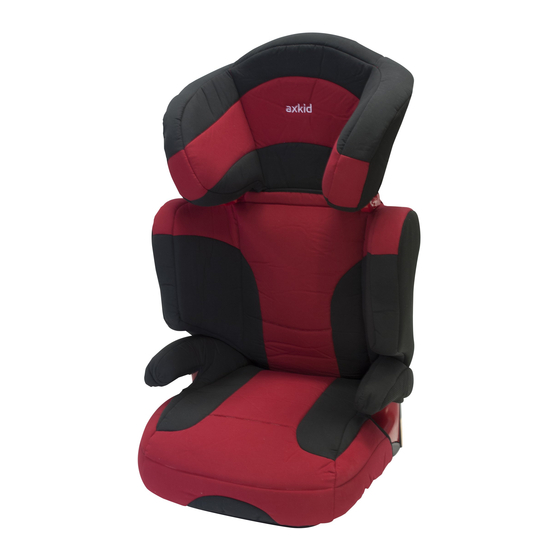

- Page 1 Instruction manual Keezone Child seat 15-25 kg Car booster cushion 15-36 kg Tested and approved according with ECE R44 / 04...
- Page 2 Important information Thank you for choosing a child seat from Axon Kids. The team developing Keezone has more than 30 years of experience in child safety products in the team totally. We have done our outmost to make this baby seat as safe as possible. The Axon Kids child seat has of course also been tested and certified according to ECE R/44 04, the latest European standard for child safety.
- Page 3 The child seat’s parts 1. Adjustable headrest 2. Backrest 3. Seat cushion 4. Belt guide for the shoulder belt of the car 5. Pass-through for belt 6. Handle used for adjusting height of headrest 7. Adjustable lever 8. Handle used for adjusting the angle of the seat 9.
- Page 4 Installation of the backrest To assemble the child seat follow these steps. A) Position the backrest in the rear attachments of the seat cushion, the backrest should then be put in a horizontal position. B) Push the guiding pin as far as possible into the seat cushion attachment. C) Fold up the backrest to an upright position, you know that the assembly is correctly performed when you receive a “click”...
-
Page 5: Height Adjustment Of Headrest
Height adjustment of headrest A properly adjusted headrest ensures that the diagonal belt gives your child the right protection and comfort. There are eleven possible positions of the vertical headrest. You shall adjust the headrest so that you can fit two fingers between your child’s shoulders and neck support (D). - Page 6 Adjusting angle of the backrest The backrest of the child seat is adjustable to fit your car seat in the best way. Please note: Before adjusting the angle of the backrest please beware that the best possible protection can only be achieved if the car seat is in upright position. To adjust the angle of the backseat, follow these steps;...
- Page 7 Mounting the child seat WARNING! Do not use the child seat when it is not mounted. The child seat can in this position tip backwards and therefore you should always fit the child seat in your vehicle before you put the child in it. The child seat does not require any special installation in the car other than the settings that has been described earlier in this user guide.
- Page 8 Put the lap belt through the belt guide on the other side of the child seat (J). PLEASE NOTE! Make sure that the lap belt is fitted as close as possible to the child’s hips. Put the shoulder belt through the red belt guide in the child seat´s neck rest until it slips in to the guide and is secured by the belt guide locking mecha- nism (K).
-
Page 9: Safety Checklist
Safety checklist Please check the following points: • The lapbelt (M1) is running through both the red belt guides on the child seat´s sides. • The shoulder belt (M2) is running through the red belt guide on the side of the child seat where the vehicle´s belt buckle is located. - Page 10 Cleaning the child seat If the child seat´s cover is replaced make sure only to use original products from Axon Kids. If not the safety system could be compromised and may lead to death or injury of your child in case of an incident. • The child seat´s cover can be taken off and washed in the laundry.
- Page 11 Warranty and handling Do not do any repairs or any adjustment to the child seat other then those described in this user guide. Our warranty policy is inline with your local consumer agency. Make sure to save your receipt and bring it to your dealer if you have any warranty issues.
