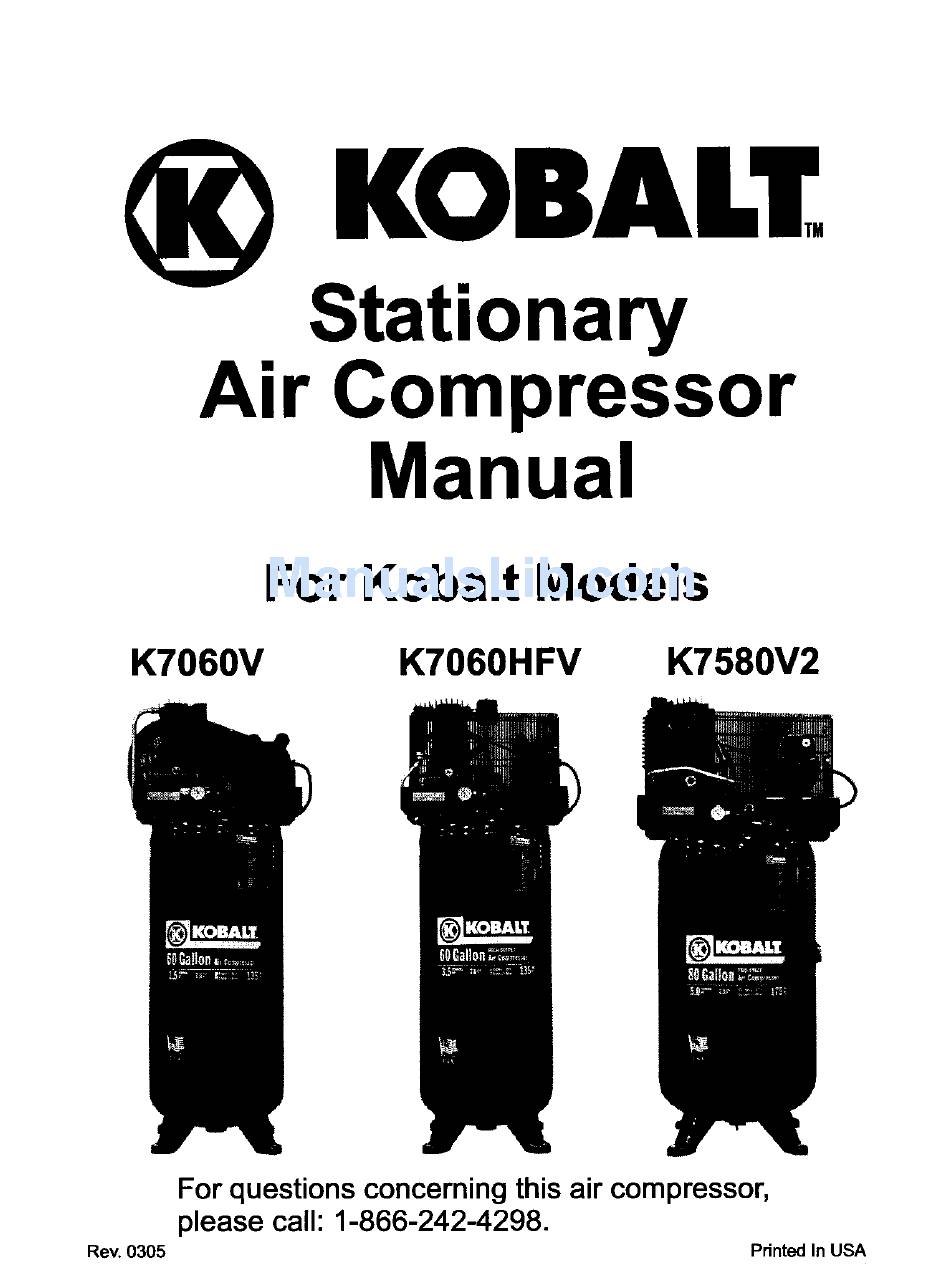

- Page 1 Stationary Air Compressor Manual For Kobalt Models K7060HFV K7580V2 K7060V For questions concerning this air compressor, please call: 1-866-242-4298. Rev. 0305 Printed In USA...
- Page 2 PAGE Safety Guidelines - Definitions Before Using the Air Compressor When Installing or Moving the Compressor Before Each Use Follow Safety Precautions for Electrical Connection Plan Ahead to Protect Your Eyes, Hands, Face & Ears When Operating Spraying Precautions Perform These Maintenance Operations...
- Page 3 Improper operation or maintenance of this product could result in serious injury and property damage. Read and understand all warnings and operation instructions before using this compressor. Before using the air compressor Things you should know Air compressors are utilized in a variety of air system applications.
- Page 4 This compressor is not intended for outdoor installation. Never install a shut off valve between the compres- sor pump and tank. Personal injury and/or equipment damage could occur. for Models K7060V and K7060HFV 314" NPT for Model K7580V2 Before each use Inspect your compressor 1.
- Page 5 Follow the safety precautions 1. Follow all local electrical and safety codes, as well as the National Electric Code (NEC) and the Occupational Safety and Health Act (OSHA). 2. Wiring and fuses should follow electrical codes, current capacity and be properly grounded.
- Page 6 Be careful not to over tighten belts during adjustment. Remove and check air filter, replace if necessary. Change oil every 3 months or 300 hours. A compressor grade non-detergent oil should be used. (40 wt for K7060V/K7060HFV for K758OV2). Page 4 and 30wt...
- Page 7 Find and read all warning labels found on the air compressor. r7i ¸ Air Filter Porous element contained within a metal or plastic housing attached to the compressor cylinder head which removes impurity from the intake air of the compressor.
- Page 8 Make sure the electdcal pressure switch propedy switches off the compressor according to the setting desired. (135 psi for K7060V/K7060HFV and 175 psi for K7580V2) Make sure the pressure in the tank does not exceed its rating. Single stage comp-...
- Page 9 1. Compressor too small for Low discharge pressure application 2. Air leaks 3. Restricted intake air 4. Blown gasket(s) i. Broken or misaligned valves Excessive noise 1. Loose drive pulley or flywheel 2. Low on oil "knocking" 3. Worn connecting rod or connecting 4.
- Page 10 Pressure switch un- 1. Malfunctioning check valve loader constantly leaking air Pressure switch not 1. Malfunctioning switch unloading Excessive vibration 1. Improper installation 2. Loose belts 3. Misaligned flywheel or drive pulley Overheating 1. Compressor too small for application 2. Cooling surfaces dirty 3.
- Page 11 KOBALT. Model K7580V2 Shown Here as an Example Illustration Part Description Number Compressor Pump Air Filter Electric Motor Safety Valve Pressure Switch Tank Gauge Tank Drain Check Valve Discharge Tube Belt Guard Drive Belts Drive Pulley *Part Numbers Subject to Change Without Notice...
- Page 12 B3800 and NS18S Single Stage Compressor Pumps Filter for NS18S Filter for B3800! Page 10...
- Page 13 B3800 and NS18S Single Stage Compressor Pumps PART ILLUSTRATION NUMBER NUMBER 3660100 3630000 3860400 3860401 3660200 3660160 2840050 1421100 3610100 9140040 9020011 9020041 9020071 FS008 2281000 2060690 2060590 9170030 9024021 9163010 9110014 9004008 3650100 3650201 2850300 2850400 2050500 3670200 9101594 9101144 9101094 9107254...
- Page 14 B5900 Two Stage Compressor Pump Page 12...
- Page 15 B5900 Two Stage Compressor Pump Illustration Number Description Crankcase Cylinder Head Crankshaft Crankcase Bottom Valve Assembly Conrod Insert (Half Bearing) Conrod Conrod Nut HP Piston LP Piston HP Wrist Pin LP Wrist Pin Circlip HP Step Ring HP Compression Ring HP Oil Ring LP Step Ring LP Compression Ring...
- Page 16 KobaifModels KT060V and K7_o0HFV are usedfor commercialor indusb'iai p urposesthe warrantywill apply for ninety(90) days from the date of purchase.Kobalt Model IO'580V2 is not limited to a ninety (90) day warrantywhen used in commercialor indusataiappFications.
