Kobalt 138336 Parts Manual

Kobalt 138336 Parts Manual

Single stage, belt drive, electric air compressor

Advertisement

Quick Links

Parts Manual / Manuel de pièces / Manual de piezas
Single Stage, Belt Drive, Electric Air Compressor
D'une seule étape, actionnement pour courroie, compresseur d'air électrique
De una sola etapa, accionamiento por correa, compresor de aire eléctrico
Specification Chart____Tableau des spécifications___Cuadro de especificaciones
ITEM #
RUNNING
(ARTICLE)
H.P.
(ARTÍCULO)
(CV)
138336
3.7
?
Questions? See back pages.__Questions ? Consultez la pages final.__¿Preguntas? Vea la páginas final.
Printed in U.S.A.
TANK CAPACITY
GALLONS
(CAPACITÉ DU
RÉSERVOIR - LITRES)
(CAPACIDAD DEL
TANQUE - LITROS)
60 (227,1)
Item # / Article / Artículo
VOLTAGE/
KICK-IN
AMPS/PHASE
PRESSURE
(TENSION/
(PRESSION
AMPS/PHASE)
D'OUVERTURE)
(VOLTAJE
(PRESION DE
AMP/FASE)
CONEXION)
240/15/1
(8,62 bar)
138336
KICK-OUT
PRESSURE
(PRESSION DE
FERM.)
(PRESION DE
DESCONEXION)
125
155
(10,69 bar)
200-2631_ Rev A_12-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 138336 and is the answer not in the manual?

Questions and answers

Mark
April 20, 2025

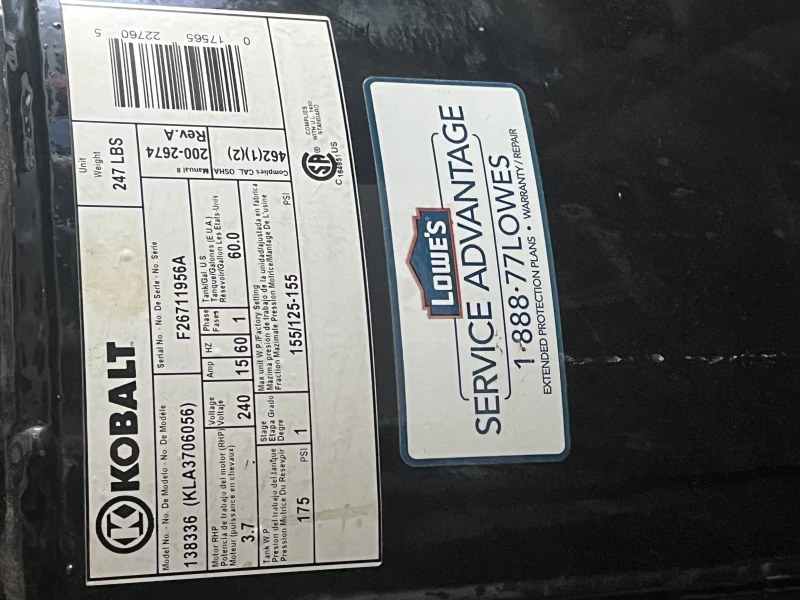

Will any 125/155 pressure switch work for my Kobalt air compressor

User image 68045bb9a77b4
1 comments:
Mr. Anderson
May 10, 2025

Yes, a 125/155 PSI pressure switch is compatible with the Kobalt air compressor model 138336.

This answer is automatically generated

Mark
April 20, 2025

What pressure switch fits

User image 680458d8b0e4d
1 comments:
Mr. Anderson
May 10, 2025

The compatible pressure switches for Kobalt part number 138336 include:

- Pressure switch rated at 125/155 PSI, 240V, with a 4-port manifold.
- Pressure switch rated at 115/150 PSI, with a 4-port (1/4" NPT) manifold, Unloader Valve, and On/Off lever.

This answer is automatically generated

Summary of Contents for Kobalt 138336

  • Page 1 Item # / Article / Artículo 138336 Parts Manual / Manuel de pièces / Manual de piezas Single Stage, Belt Drive, Electric Air Compressor D’une seule étape, actionnement pour courroie, compresseur d’air électrique De una sola etapa, accionamiento por correa, compresor de aire eléctrico Specification Chart____Tableau des spécifications___Cuadro de especificaciones...
  • Page 2 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 85-90 lb-in. Serrez de 85 À 90 lbs-in. Torsión hasta 9,6-10,2 N•m Note: Tighten compression nut handtight plus 1 full turn. Note: Serrez l'écrou de compactage solide plus 1 plein tour.
  • Page 3 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 125-0151 Beltguard (outer).........Garant ..........Protector 061-0114 Plastite screw........Vis ...........Tornillo Bolt, 5/16-18 x 1/2.......Boulon ..........Perno 125-0152 Beltguard (inner) .........Garant ..........Protector Setscrew ..........Vis d’arrêt ........Tornillo fajador 146-0016 Key............Clé...........Chaveta...
  • Page 4 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: 755H Pump Torque to 25-27 lb-ft. Assembly Serrez de 25 À 27 lbs-ft. Torsión hasta 33,9-36,6 N•m Torque to 14-16 lb-ft. Serrez de 14 À 16 lbs-ft. Torsión hasta 19,0-21,7 N•m Torque to 9-12 lb-ft.
  • Page 5 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS 755H Pump Assy -- Ensemble du pompe -- Conjunto de bomba Item Part No Qté Núm / P Cant Description Description Descripción Screw, M4 x 8 ........Vis ...........Tornillo Lock washer, M4.........Rondelle ..........Arandela 042-0112 Inlet cover ...........Couvercle ........Tapa 118-0032...
  • Page 6 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 17-24 lb-in. Serrez de 17 À 24 lbs-in. Torsión hasta 1,9-2,7 N•m Torque to 125-150 lb-in. Serrez de 125 À 150 lbs-in. Torsión hasta 14,1-17,0 N•m Note: Tighten compression nut handtight plus 1 full turn.
  • Page 7 PARTS AND SERVICE Replacement parts and service are available from your Attach your sales receipt at bottom right. nearest authorized Service Center. If the need arises, contact Product Service as listed at right. When needing service, please contact the nearest authorized Service Center or call: When consulting with a Service Center or Product Service, refer to the model number and serial number...
  • Page 8 DO NOT RETURN TO STORE! CALL US FIRST! IMPORTANT - Please Read Thank you for purchasing this product. This compressor was built to meet the highest quality standards and factory tested to assure satisfactory use. If you have any questions which are not addressed in the owner’s manual, or need service information, call us toll free at 1-866-307-4104.
