Chart/Sonar Combo View; Chart/Side Imaging® Combo View (898C Si And 998C Si Only) - Humminbird 858c Combo Operation Manual

Chart/Sonar Combo View

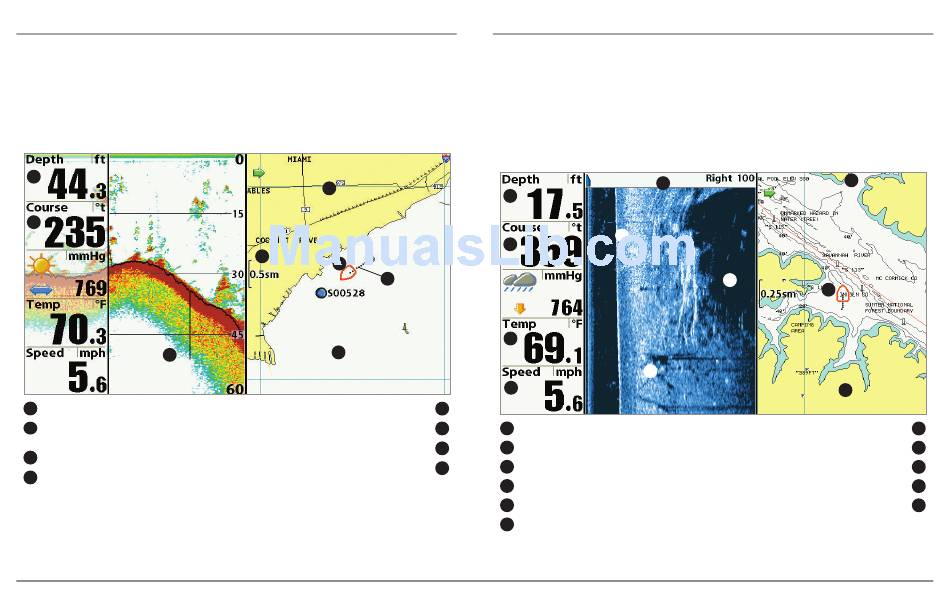

Chart/Sonar Combo View shows both the Chart and Sonar views in a
combination split screen, where the Sonar View is displayed on the left and
the Chart View is displayed on the right. For more information about each
side of this combo view, see Chart View and Sonar View.
Chart/Sonar Combo View
1
2
7
1
Depth
2 Course: Direction the boat is traveling
relative to North Reference
3
Track (Breadcrumb Trail)
4 Map Scale
Combo Views
6
4
5
3
8
Boat Icon
Cartography
Sonar Window
Chart Window
Chart/Side Imaging
Chart/Side Imaging® Combo View shows chart information and Side
Imaging® sonar information in a combination split screen, where the Side
Imaging® View is displayed on the left and the Chart View is displayed on the
right. For more information about each side of this combo view, see Chart
View and Side Imaging® View.
1
8
2
3
4
5
6 1 Depth
2
7 Course: Bearing of Boat with Respect to North Reference
3
8 Water Surface Temperature
4
Speed of Boat
5
Side Imaging® View Window
6 Shadows
44
Combo View
®
(898c SI and 998c SI only)
Chart/Side Combo View
5
6
7
9
10
11
Topography Changes 7
8
Bottom Return
9
Chart View Window
10
Boat Icon
Cartography 11
