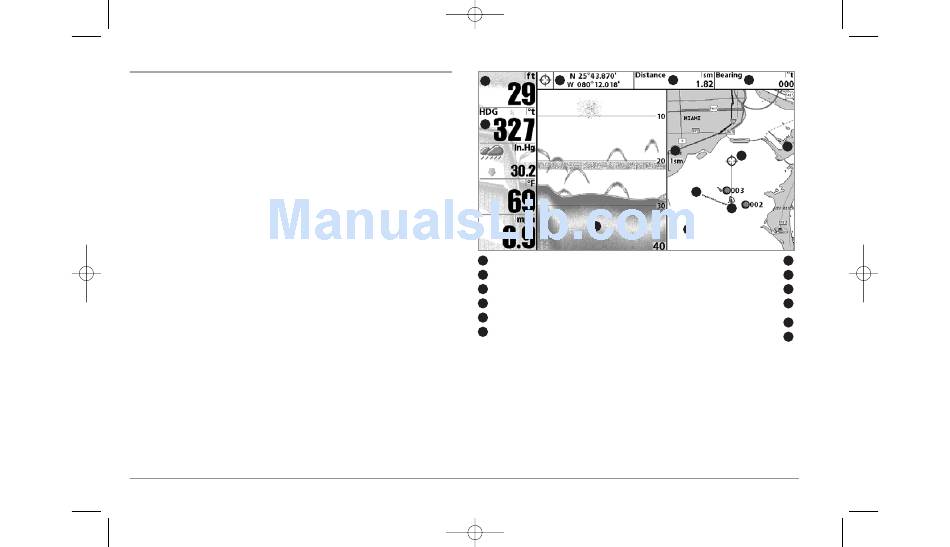

CHART/SONAR COMBO VIEW

Chart/Sonar Combo View shows both the Chart and Sonar views in a combination
split screen. You can perform any of the functions for either of these views, but only
when the view you want to control is selected as the active side (see Sonar X-Press™
Menu: Active Side or Navigation X-Press™ Menu: Active Side for more information). A
green arrow points to the side that is active. You can also adjust the size of the left side
of a split screen (see Sonar X-Press™ Menu: Split Position or Navigation X-Press™ Menu:
Split Position for more information).
Note: See Sonar View and Chart View for more information about each side of this view.
11:12 AM Page 42

(937c DF Combo and 937c Combo models only)

1
10
1
2
3
4
5
6
37
Chart/Sonar Combo View
5 6
11
Depth
Boat Icon
Track (Breadcrumb Trail)
HDG: Direction that boat is travelling relative
Map Scale
Latitude and Longitude Position of Cursor
Distance to the Cursor
7
8
4
9
3
2
12
7
Bearing to Cursor
Cartography 8
Active Cursor 9
10
to North Reference
11
Sonar Window
12
Chart Window
