Trolling Grid Rotation; Trackpoint Interval; Track Min Distance (Advanced); Track Color Range - Humminbird 858c Combo Operation Manual

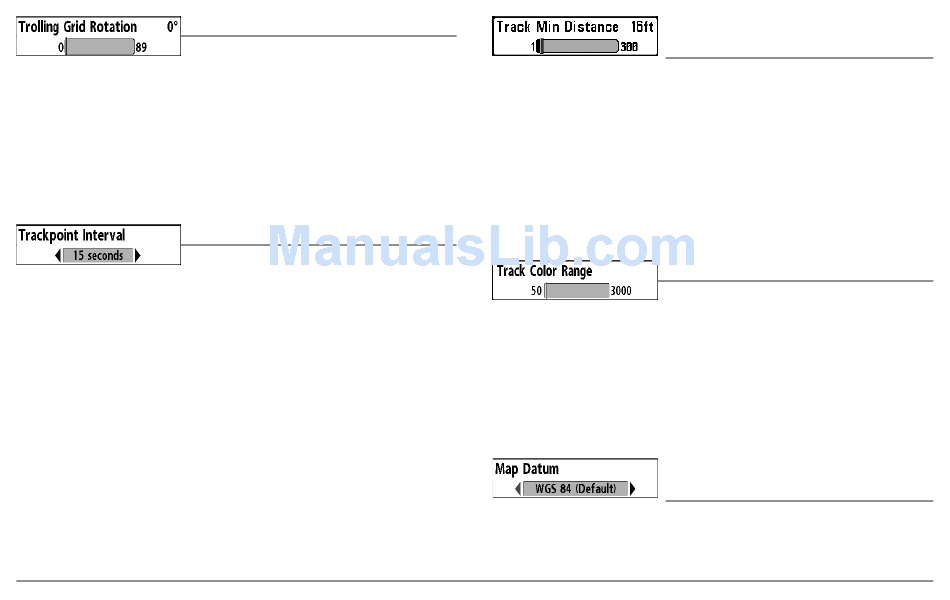

Trolling Grid Rotation

Settings: 0° to 89°, Default = 0°
Trolling Grid Rotation allows you to set the orientation of the trolling grid in
degrees, where a setting of 0° displays a standard North, South, East, West
alignment. See Introduction to Navigation: Add a Waypoint Target or
Trolling Grid for information.
NOTE: This feature may appear as either Trolling Grid Rotation or Grid Rotation,
depending on your model.

Trackpoint Interval

Settings: 1 second, 5 seconds, 10 seconds,
15 seconds, 30 seconds, or 60 seconds;
Default = 1 second
Trackpoint Interval allows you to select the time period between
trackpoints. The current track can only contain up to 20,000 trackpoints, so
longer time periods cause the track to extend back further in time, but will
be less detailed.
Trackpoint Interval works in conjunction with Track Min Distance. Both
conditions must be met before a trackpoint is added to the current track.
During slow travel or drift, setting both Trackpoint Interval and Track Min
Distance to small values will allow you to increase the track resolution.
Track Min Distance allows you to set a minimum distance of travel before a
trackpoint is added to the track.
Track Min Distance works in conjunction with Trackpoint Interval. Both
conditions must be met before a trackpoint is added to the current track.
During slow travel or drift, setting both Trackpoint Interval and Track Min
Distance to small values will allow you to increase the track resolution.
Track Color Range allows you to set the depth range that will be displayed
as black, the deepest depth, when Color By Depth is selected as the style for
the current track (see Navigation Menu Tab: Current Track).
*NOTE: Only an optional-purchase transducer with a 50 kHz frequency will allow
you to track to 3000 feet.
Map Datum allows you to change the map coordinate system used by the
Fishfinder to match those of a paper map.
93
Track Min Distance
(Advanced)
Settings: 1 to 300 feet, or 1 to 100 meters
[International Units only]; Default = 16 ft, 5 m

Track Color Range

Settings: 50 to 3000* feet or 20 to 1000 meters
[International Units only], Default = 50 ft, 20 m
Map Datum
(Advanced)
Settings: Various, Default = WGS 84
Navigation Menu Tab
