Humminbird 858c Combo Operation Manual page 49

Classic layout: The top portion of the display presents a historical log of
sonar returns from the 200 kHz down-looking sonar beam. New information
in the down beam panel scrolls from right to left. The bottom portion of the
display presents a historical log of sonar returns from the 455 kHz right- and
left-looking sonar beams. New information appears at the top and scrolls
down the display.

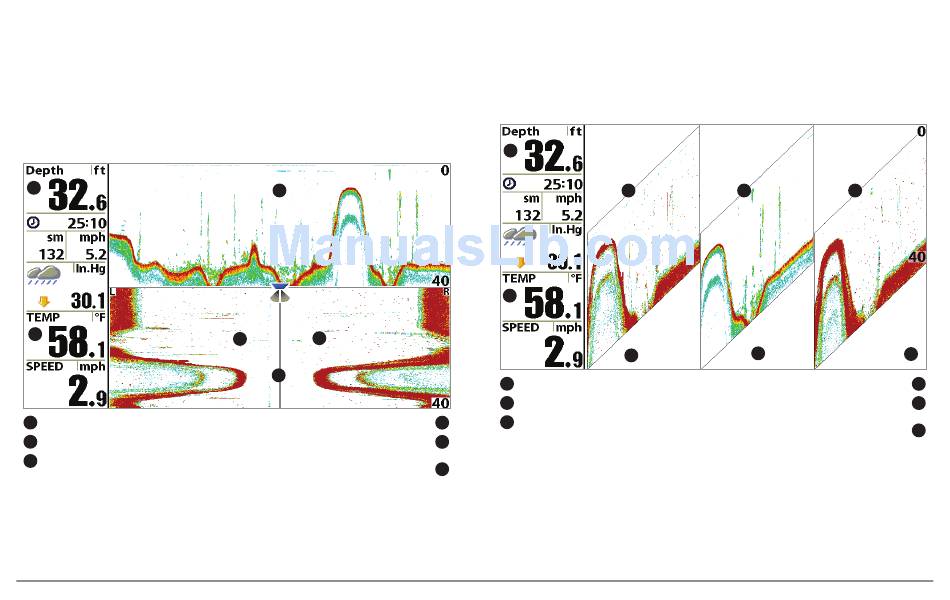

Side Beam View, Classic Layout
1
2
1 Depth
2
Temperature
3
Left Side 455 kHz Sonar History Window
4
6
3
5
200 kHz Sonar History Window
Water Surface Line for 455 kHz
Sonar History Windows
Right Side 455 kHz Sonar History Window
Slanted layout: This layout presents the two 455 kHz side sonar beams and
the 200 kHz down-looking sonar beam as three panels of historical data. This
layout is presented as three slanted panels. New information appears on the
right and scrolls to the left.
1
2
1
Depth
2
Temperature
3
4 Left Side 455 kHz Sonar History Window
5
6
39
Side Beam View, Slanted Layout
5 5
4
3
200 kHz Sonar History Window
Water Surface Line for 455 kHz
Right Side 455 kHz Sonar History Window
5
6
4
5
Sonar History Windows
6
Views
