Appendix A

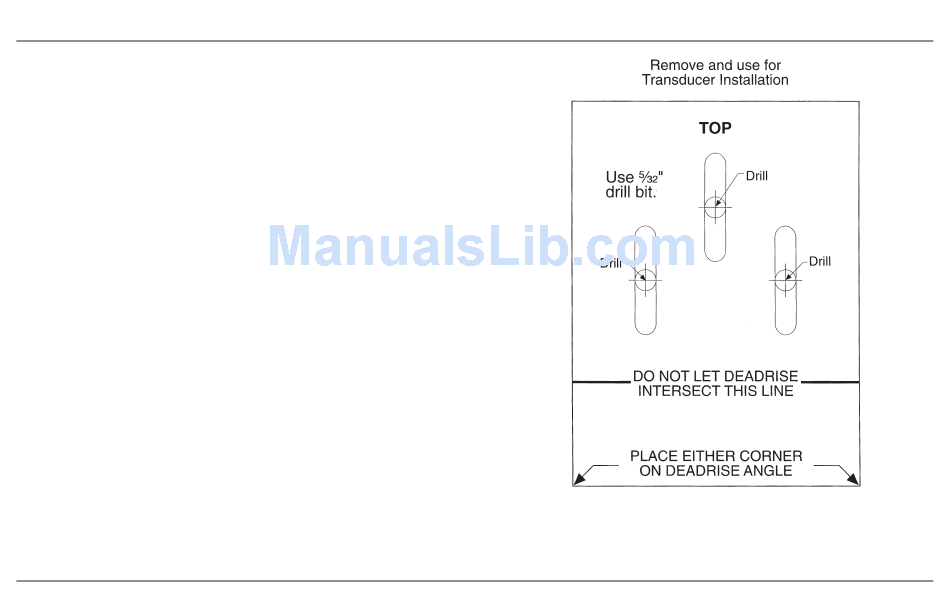

Side Imaging® Transducer Mounting Template (XHS 9 HDSI 180 T)
NOTE: If you are reproducing or printing this template from an electronic file,
start with the following print settings: Scale = None, Paper = 8.5 x 11 inches,
Layout = Landscape. Confirm that the template matches the transducer bracket
slots and adjust the print as needed.
