Down Imaging™/Sonar Combo View
(858c DI, 958c DI, 898c SI, and 998c SI only)

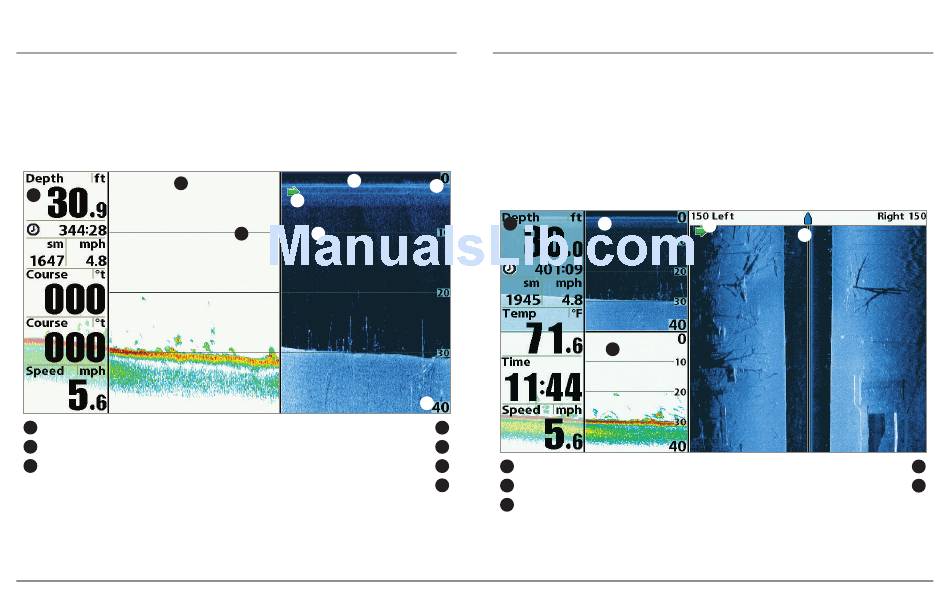

Down Imaging™/Sonar Combo View shows traditional Sonar information
on the left and Down Imaging™ sonar information on the right. For more
information about each side of this combo view, see Down Imaging™ View
and Sonar View.
Down Imaging™/Sonar Combo View
2
1
1
Digital Readouts
2
Sonar View Window
3
Down Imaging™ View Window
Combo Views
3
4
5 5
Green Arrow: Active Side
Depth Lines
Upper Depth Range
Lower Depth Range
Down Imaging™/Side Imaging®/Sonar Combo View
(898c SI and 998c SI only)
Down/Side Imaging®/Sonar Combo View shows Down Imaging™ and
traditional Sonar information on the left side of the screen, and Side
Imaging® on the right side of the screen. If you use the active cursor on the
left side of the screen, a cursor will appear in both the Sonar and Down
Imaging™ views. For more information about each side of this combo view,
see Down Imaging™ View, Side Imaging® View, and Sonar View.
6
Down Imaging™/Side Imaging®/Sonar Combo View
1 2
7
4
5
6
1 Digital Readouts
7 2
Down Imaging™ View Window
3
Green Arrow: Active Side
46
3
5
4
Side Imaging® View Window 4
5
Sonar View Window
