Split Sonar View

Split Sonar View displays sonar returns from each down beam frequency on
separate sides of the screen. You can use the Split Sonar View to make side
by side comparisons between the sonar returns from both beams.
• DualBeam PLUS™ models (858c, 958c, 898c SI, 998c SI) display
sonar returns from the 83 kHz wide beam on the left side of the
screen and sonar returns from the 200 kHz narrow beam on the right
side of the screen.
• Down Imaging™ models (858c DI, 958c DI) display traditional 2D
sonar returns from the 455 kHz narrow beam on the left side of the
screen and sonar returns from the 200 kHz wide beam on the right
side of the screen.
• Depth is displayed in the upper left hand corner.
• The Digital Readouts in the Split Sonar View cannot be customized;
therefore, information such as water temperature and voltage are
unavailable in the Split Sonar View.
• Freeze Frame: Use the 4-WAY Cursor Control key to freeze the
display and move the cursor over a sonar return. The depth of the
sonar return will be displayed at the top of the screen in the cursor
dialog box.
Views

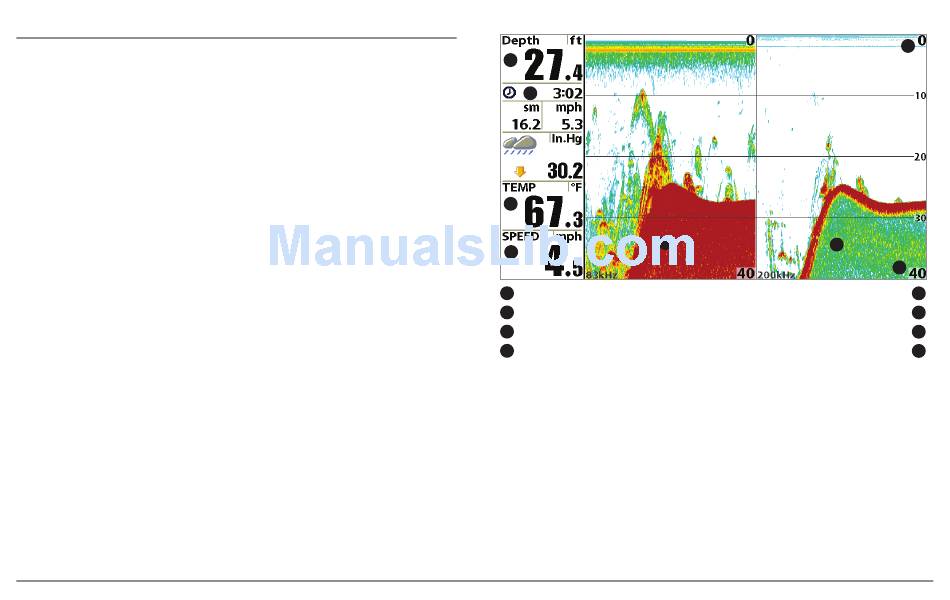

Split Sonar View (858c, 958c, 898c SI, and 998c SI)
1
2
7
8
1
Depth
2 Triplog
3
Upper Depth Range
4
Lower Depth Range
32
6
5
200 kHz Sonar History Window
83 kHz Sonar History Window
3
4
5
6
7
Temperature
8
Speed
