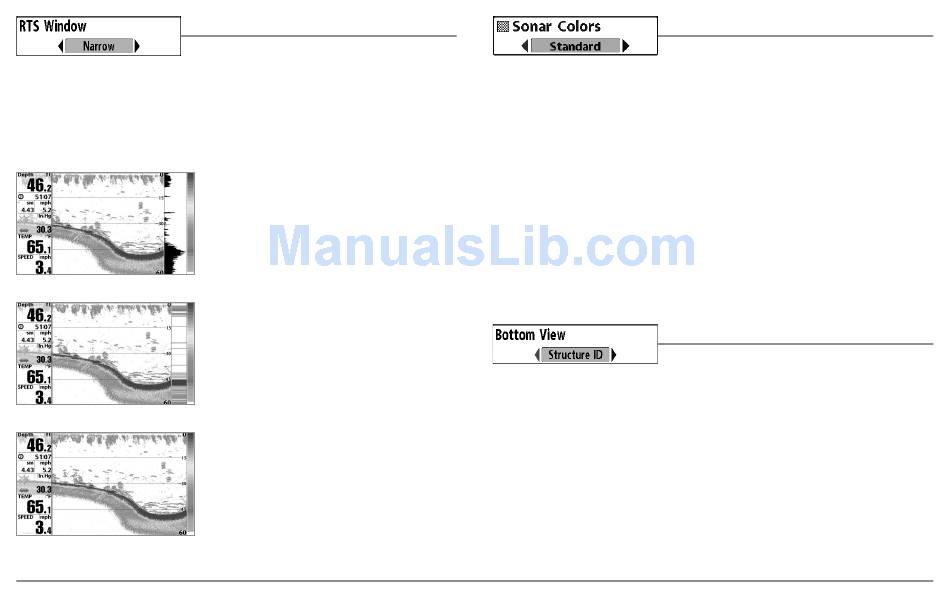

Real Time Sonar (RTS™) Window
Settings: Wide, Narrow, Off; Default = Narrow
RTS Window™ sets the RTS Window™ to Wide or Narrow, or turns it off in
the Sonar View. The RTS Window™ always updates at the fastest rate
possible and only displays returns that are within the transducer beam. See
What's on the Sonar Display for more information.
RTS Window™ (Wide)
RTS Window™ (Narrow)
RTS Window™ (Off)
NOTE: The Wide RTS Window™ does not use
grayscale.
Sonar Colors allows you to select which color palette you would like to use
for the display. The palette you choose will be applied to the Sonar Views.
• Gray: Light Gray (weak) to Black (strong)
• Green: Dark Green (weak) to Light Green (strong)
• Inverse: Black (weak) to White (strong)
• Original Palette: Cyan (weak) to Red (strong)
• Palette 1: Navy Blue (weak), Purple (medium), Yellow (strong)
• Palette 2: Navy Blue (weak), Green (medium), Yellow (strong)
• Palette 3: Navy Blue (weak) to Red (strong)
Bottom View selects the method used to represent bottom and structure on
the display. See What's on the Sonar Display: Sonar Bottom Presentation
for more information.
85

Sonar Colors

Settings: Gray, Green, Inverse, Original Palette,
Palette 1, Palette 2, Palette 3; Default = Original

Bottom View

Settings: Structure ID, WhiteLine; Default =
Structure ID
Sonar Menu Tab
