Planning Information

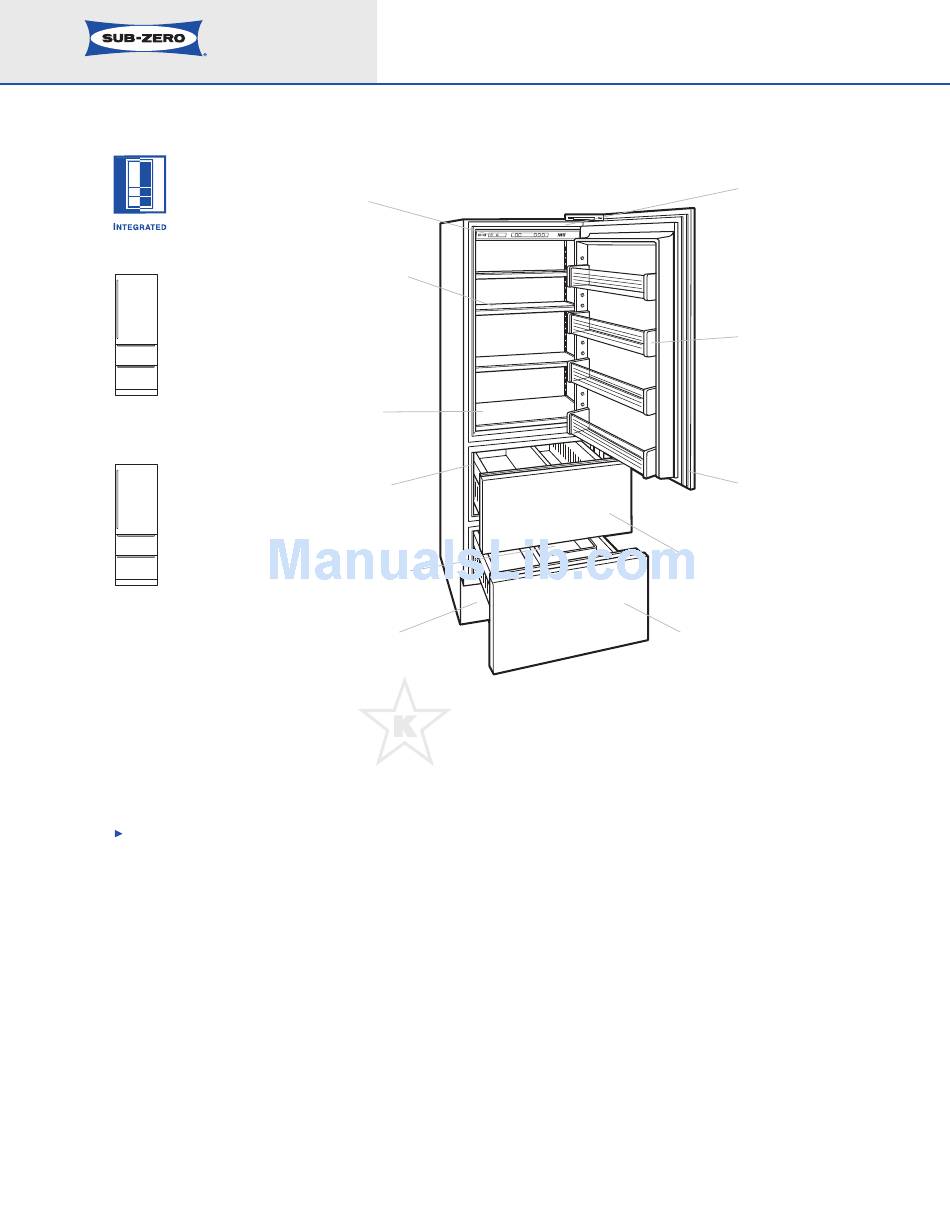

Model 700TF(I)
All Freezer
Electronic digital
control panel
Adjustable spill-proof
glass shelves
Stationary shelf
Model 700TF
Location of serial
number
Automatic ice maker
(Model 700TFI)
Model 700TFI
with Ice Maker
Front venting with
removable kickplate
The Sub-Zero Model 700TF and
700TFI integrated design accepts custom
wood or stainless steel door and drawer
panels. Stainless steel panels and handles
are available as sales accessories in three
finishes—classic, platinum and carbon.
Dimensions in parentheses are in
millimeters unless otherwise specified.
10/05
With the installation of a harness kit, these appliances are Star-K
compliant to meet strict religious regulations in conjunction with
specific instructions found on star-k.org. You may purchase this
harness kit through your Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of our website, subzero.com.
E
rgonomically, this unit works—doors above the
counter and drawers below counter level. The shallow
depth enables you to view everything quickly and you
can grab those items and be out of the unit quickly.
The drawers have full extension and are a nice way to
bring the items to you and not have to bend down and
look inside for your package.
As with the two drawer freezer this tall cousin can be
ordered with or without the automatic ice maker.
The door swing must be specified when ordering this
unit.
Seamless
molding
Adjustable door
shelves
Magnetic door /
drawer gaskets
Upper freezer
storage drawer
Lower freezer
storage drawer
1
