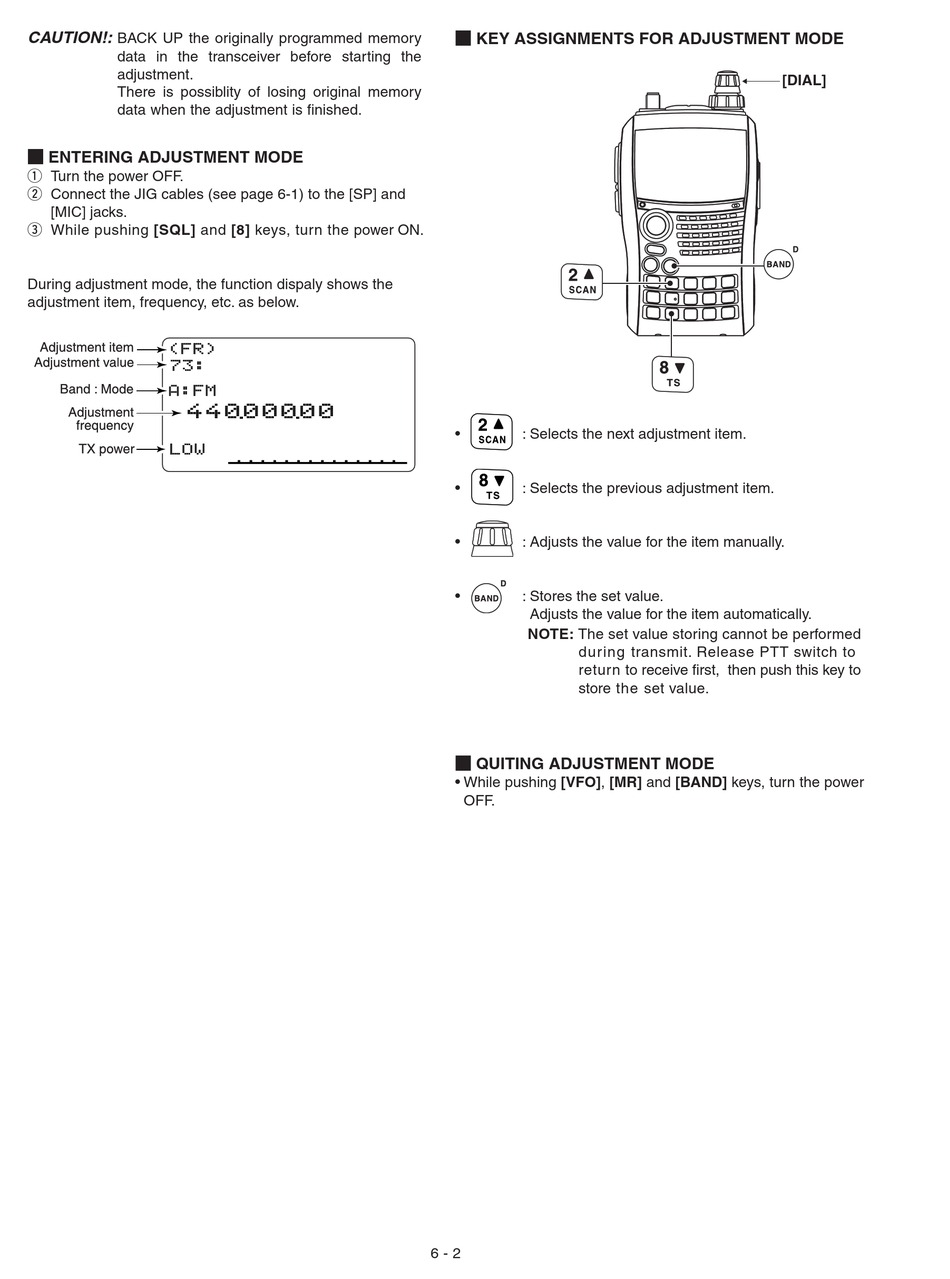

Icom IC-91A Service Manual page 19

CAUTION!:
BACK UP the originally programmed memory
data in the transceiver before starting the
adjustment.
There is possiblity of losing original memory
data when the adjustment is finished.
¤ ENTERING ADJUSTMENT MODE
q Turn the power OFF.
w Connect the JIG cables (see page 6-1) to the [SP] and
[MIC] jacks.
e While pushing [SQL] and [8] keys, turn the power ON.
During adjustment mode, the function dispaly shows the
adjustment item, frequency, etc. as below.
¤ KEY ASSIGNMENTS FOR ADJUSTMENT MODE
• : Selects the next adjustment item.
• : Selects the previous adjustment item.
• : Adjusts the value for the item manually.
• : Stores the set value.
Adjusts the value for the item automatically.
NOTE: The set value storing cannot be performed
during transmit. Release PTT switch to
return to receive first, then push this key to
store the set value.
¤ QUITING ADJUSTMENT MODE
• While pushing [VFO], [MR] and [BAND] keys, turn the power
OFF.
6 - 2
[DIAL]
