AT&T U-verse Self-Installation Manual page 2

Set up
1
Approximate time: 10 minutes
Customers without traditional phone service can skip steps A and B, and start with step C.
A
If you have traditional phone service, install
single-port filters in wall jacks that have devices
such as phones, fax machines, satellite receivers,
or modems.
B
The dual-port filter is used when you want to
connect a phone or other piece of equipment,
such as a fax machine, to the same wall jack as
your Wireless Gateway.
Phone, cordless base Dual-port filter
station, or other phone
Wall jack
device (e.g., fax).
D
Connect the yellow Ethernet cable from
the Wireless Gateway's Local Ethernet
port to your computer's Ethernet port.
Ethernet cable
Computer Ethernet port
Note: Initial setup requires physically
connecting the Ethernet cable to
your computer. After registering
your service in step 3, you can
enable wireless connectivity.
Questions?
Go online:
Visit att.com/uversesupport.
Broadband
Service
3600HGV

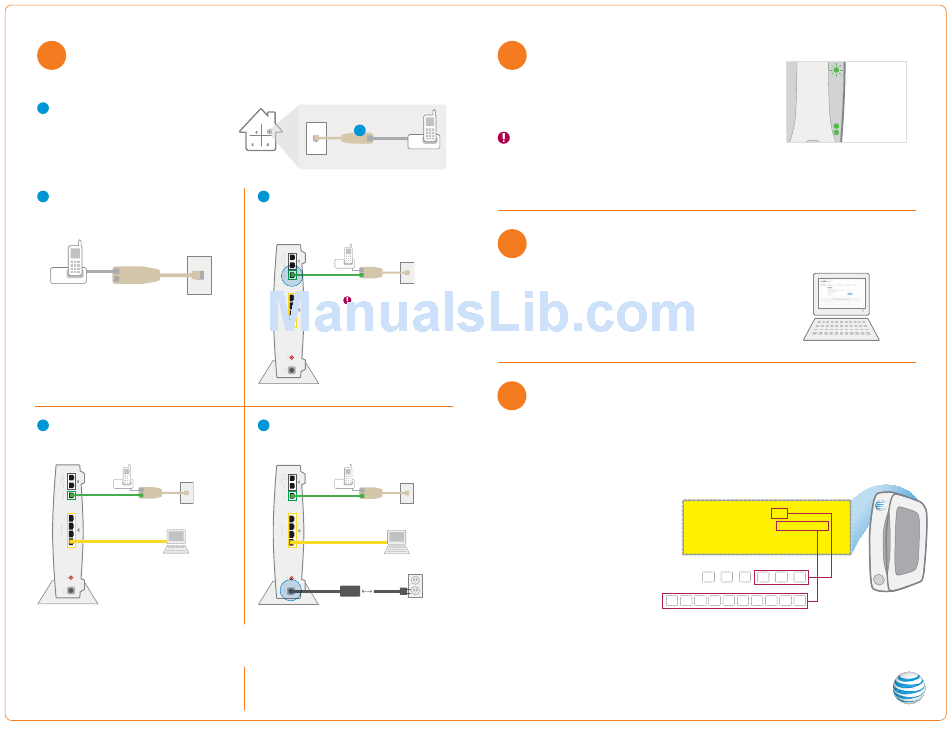

Installing phone filters
A
Single-port filter
Phone device
Wall jack
C
Connect the green data cable from the Wireless
Gateway's Phone Line port to the dual-port filter's
DSL port (or directly to the wall if you do not have
traditional phone service).
Wall jack
Data cable
Dual-port filter
A dual-port filter is only
necessary if you have
traditional phone service
and want to share the
wall jack with a phone
device; otherwise, plug
the data cable directly
into the wall jack.
SN:
For Advanced Configuration: http://192.168.1.254
System Password:
Mac Address:
E
Combine the two-part power cord (P1, P2), and then
Wireless Network Key:
connect one end to the Wireless Gateway's Power
port and the other end to an electrical outlet.
P1 P2
Power cord Electrical outlet
To learn more about the benefits and
features of your AT&T U-verse service,
visit att.com/u-verse/newcustomer.
Power up
2
Approximate time: 5 minutes
Your Wireless Gateway is now powering up. During this time, the Broadband
light will turn red. Wait up to five minutes for the indicator lights for
Broadband and Service to turn solid green and the Local Ethernet indicator
light to start blinking green.
During this time, do not unplug the power cord or green
data cable, as this can damage the Wireless Gateway.
If the Broadband and Service lights do not turn solid green or continue
to blink after 10 minutes, see the "Having trouble?" section on the back
of this guide.
Mandatory registration
3
• Open your Internet browser (e.g., Internet Explorer, Safari, etc.). The online
registration process will start automatically to assist you in activating your
service. If it does not, enter att.net/uverse into your address bar.
• Continue with online registration using the 4-digit passcode you created when
you placed your order—it was mailed to you separately for your reference.
Go Wi-Fi
4
(optional)
Write down the Wi-Fi Network Name (SSID) and Wi-Fi Password (Wireless Network
Key) to configure additional Wi-Fi devices. This information is on the side of your
Wireless Gateway. The Network Name consists of "ATT" plus the last three digits
of the Wireless Gateway's serial number. Be sure to record this information in the
form below.
Now configure your wireless network:
• Go to your computer's "Wireless Network
Settings" and refresh the network list.
• Select your Network Name (SSID) from the
list. You may need to scroll through the list to
find your SSID.
Network Name (SSID)
• Enter the 10-digit Wireless Network Key
(WPA) in the Password field to connect to
10-digit Wireless Network Key (WPA)
your network.
Congratulations! You should now be wirelessly connected to the Internet.
Stay connected on the go!
AT&T Wi-Fi Basic is included with your AT&T U-verse High Speed Internet service, so
you can access the Internet at thousands of AT&T Wi-Fi Hot Spots across the country.
Visit attwifi.com to learn more.
Local Ethernet Blinking green
Wireless
Phone 1
Phone 2
Solid green
Broadband
Service Solid green
Note: During the power up sequence,
the Power light may turn amber
and the Wireless Gateway may reset,
3600HGV
which is a normal part of the power
up sequence.
Approximate time: 20 minutes
Approximate time: 10 minutes
SN:
For Advanced Configuration: http://192.168.1.254
System Password:
Mac Address:
Wireless Network Key:
SSID: ATTXXX
Wireless Network Key: XXXXXXXXXX
For help: att.com/support
