1.3
Link Settings for Stand-Alone, 1 or 2 Channel Only Network
Operation
•
This procedure is required when the VAR8 is fitted with an ANIC8 Network Interface
!
!
Card, and stand-alone operation, or 1 or 2 network channel only operation is required
instead of the default 3 channel network operation.
•
If any difficult is found in accessing the links, then please refer to Application Solutions
Limited.
1. Remove the unit's lid by undoing the
screws located on the top of the unit.

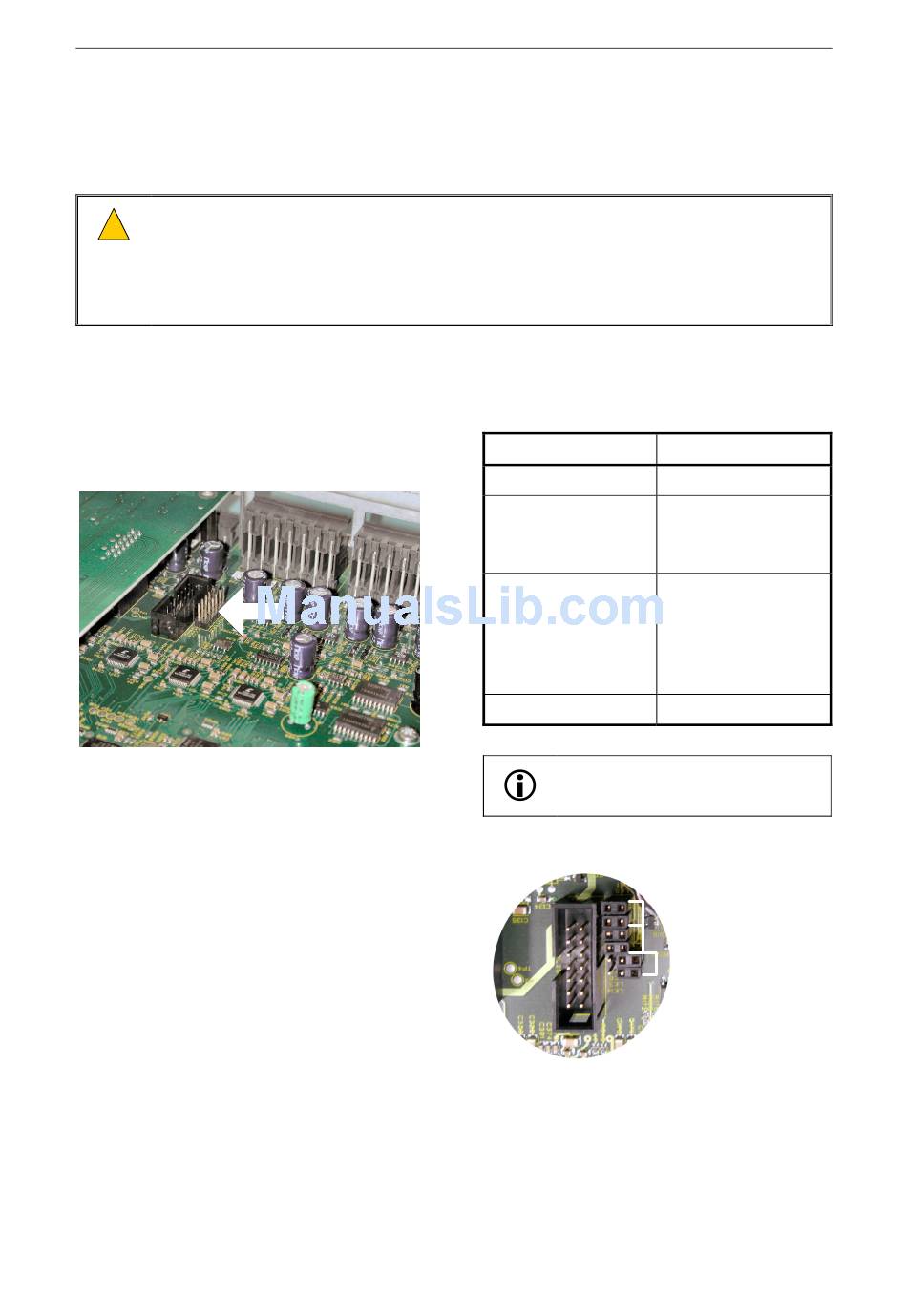

The link position is shown in the next
figure.
NETWORK CARD
LINKS
ROUTER BOARD
VAR8 / Variants - Installation Guide
REAR PANEL
Issue: 01 complete, approved
Page 11 of 22
2. Configure the links as follow:
Operation
Stand-alone
1 Channel only
2 Channels only
3 Channels (default)
Unfit the jumpers as shown in the
next figure, to avoid losing them.
LINK SETTING EXAMPLE
3. Refit the lid.
Links
No links fitted
CH1 – both fitted
CH2 – both not fitted
CH3 – both not fitted
CH1 – both fitted
CH2 – both fitted
CH3 – both not fitted
Shown
in
the
following example.
All links fitted
CH1 - FITTED
CH2 - FITTED
CH3 - NOT FITTED
