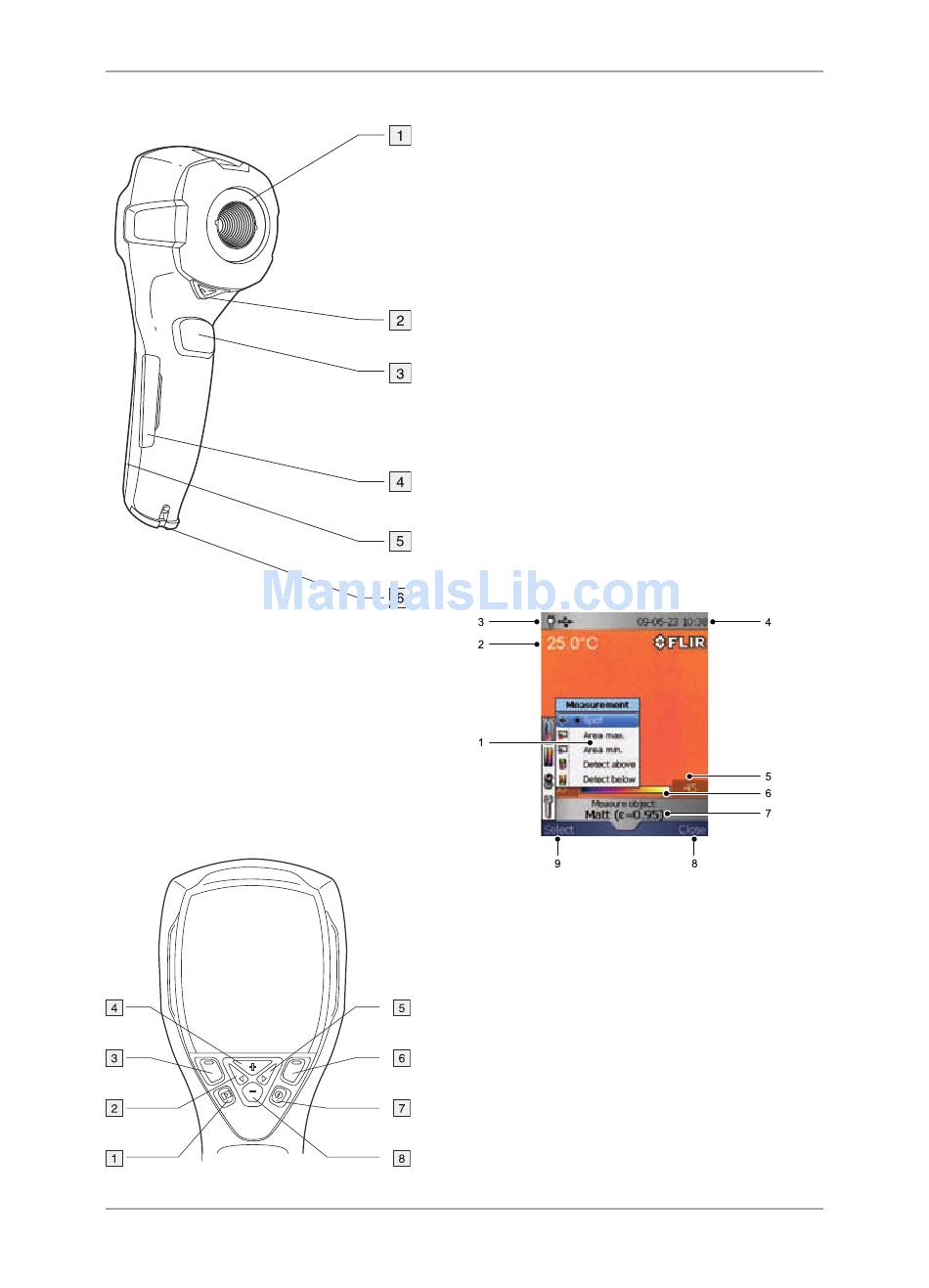

Camera parts

1. Infrared lens
2. Lever to open and close the lens cap
3. Trigger to save images
4. Cover for the connectors and the
miniSD™ memory card slot
5. Cover for the battery compartment
6. Attachment point for the hand strap

Keypad buttons

© 2010, FLIR Systems AB. All rights reserved worldwide.
Publ. no. T559169, rev. 003
1. Archive button
2. Left arrow button (on the navigation
pad)
3. Left selection button. This button is
context-sensitive, and the current
function is displayed above the
button on the screen.
4. + button (on the navigation pad)
5. Right arrow button (on navigation
pad)
6. Right selection button. This button is
context-sensitive, and the current
function is displayed above the
button on the screen.
7. On/off button
8. – button (on the navigation pad)
Note: See the User Documentation
CD-ROM for a complete description of
button functionality.

Menu system

1. Menu system
2. Measurement result
3. Power indicator
4. Date and time
5. Limit value for the temperature scale
6. Temperature scale
7. Currently set emissivity value or
material properties
8. Current function for the right selection
button
9. Current function for the left selection
button
