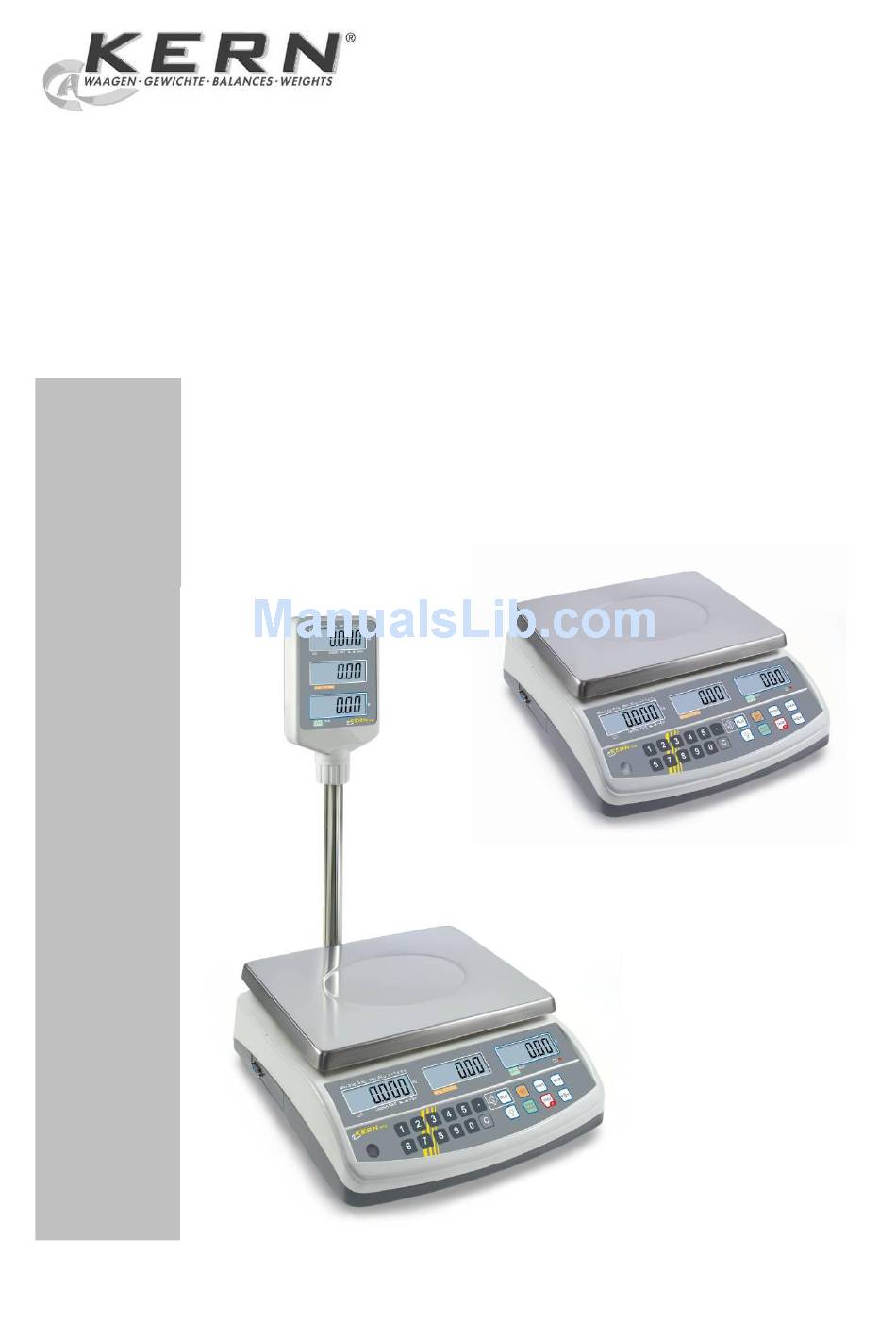

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Instruction Manual Price computing scales KERN RPB_D Version 2.4 04/2013 RPB_D-BA-e-1324...
-
Page 2: Table Of Contents
KERN RPB_D Version 2.4 04/2013 Instruction Manual Price computing scales Contents Technical data ....................4 Dimensions ..........................5 Appliance overview ..................6 Overview of display ........................7 Keyboard overview ........................9 Basic Information (General) ................ 10 Proper use ..........................10 Improper Use .......................... - Page 3 Service, maintenance, disposal ..............30 10.1 Cleaning ............................ 30 10.2 Service, maintenance ....................... 30 10.3 Disposal ............................ 30 Instant help ....................31 11.1 Error messages ........................31 Declaration of -Conformity ................32 RPB_D-BA-e-1324...
-
Page 4: Technical Data
Mains adapter 220 V – 240 V AC 50 Hz Electric Supply balance 12 V, 500 mA Rechargeable battery 6 V, 4 Ah (Option) Operating time – background lighting on 40 hrs. Operating time – background lighting off 80 hrs. Loading time approx. 12 hrs. RPB_D-BA-e-1324... -
Page 5: Dimensions
Mains adapter 220 V – 240 V AC 50 Hz Electric Supply balance 12 V, 500 mA 6 V, 4 Ah Rechargeable battery (Option) Operating time – background lighting on 40 hrs. Operating time – background lighting off 80 hrs. Loading time approx. 12 hrs. 1.1 Dimensions RPB_D-BA-e-1324... -
Page 6: Appliance Overview
Models without vertical display: Models with post-mounted display: 1. Weighing plate / rechargeable battery compartment (under weighing plate) 2. Bubble level 3. Post-mounted display 4. Not documented 5. Foot screws 6. ON/OFF switch 7. Mains adapter connection 8. Adjustment switch RPB_D-BA-e-1324... -
Page 7: Overview Of Display
2.1 Overview of display Operator and secondary display (standard on the backside of models without post-mounted display): Weight Basic price Sales price Storage battery status display Post-mounted display for models with tripod: Weight Basic price Sales price RPB_D-BA-e-1324... - Page 8 Here the sales price is displayed in Euro [€]. Indicator next to symbol displays: Set basic price is deleted automatically when AUTO CLEAR balance is unloaded Calculating the change (see chap. 8.2) Storage battery status display Charging storage battery green Battery is completely discharged RPB_D-BA-e-1324...
-
Page 9: Keyboard Overview
Calculating the change, see chap. 8.2 Taring, see chap. 7.3 Storing settings Background illumination of the display, see chap. 9.2 If function is activated, the set basic price is automatically deleted when the balance is unloaded, see chap. 9.1 Zeroing Back to weighing mode RPB_D-BA-e-1324... -
Page 10: Basic Information (General)
Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. -
Page 11: Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. Versions in other languages are non-binding translations. The only binding version is the original document in German. -
Page 12: Unpacking, Setup And Commissioning
If electro-magnetic fields or static charge occur, or if the power supply is unstable major deviations on the display (incorrect weighing results) are possible. In that case, the location must be changed. 6.2 Unpacking Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. RPB_D-BA-e-1324... -
Page 13: Transport Screw
To loosen the transportation lock, unscrew transportation screw [1] anti-clockwise. For transport , transport screw gently until it stops turning clockwise and then secure with lock nut. 6.3.1 Placing Level balance with foot screws until the air bubble of the water balance is in the prescribed circle. RPB_D-BA-e-1324... -
Page 14: Scope Of Delivery / Serial Accessories
6.4 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN. 6.5 Battery power supply (option) The rechargeable battery is charged via the delivered power supply. -
Page 15: Adjustment
1. Switch-on balance and during the selftest press 2. Use the numeric keys to enter „0000“ for a password and confirm by pressing 3. The adjustment function „CAL F0“ is displayed. Press the adjusting switch and confirm by pressing RPB_D-BA-e-1324... - Page 16 6. The adjustment process has been successfully completed. Take away adjustment weight. 7. Press and the scales will return to weighing mode. In case of an adjustment error or incorrect adjusting weight the display will show an error message ( ), repeat adjustment process. RPB_D-BA-e-1324...
-
Page 17: Verification
Balances with obligation to verify must be taken out of operation if: The weighing result of the balance is outside the error limit. Therefore, in regular intervals load balance with known test weight (ca. 1/3 of the max. load) and compare with displayed value. The reverification deadline has been exceeded. RPB_D-BA-e-1324... -
Page 18: Adjustment Controls And Seals
For the adjustment, the balance must be switched over to service mode. In the service mode the parameters of the balance can be modified. If this happened accidentally, please contact KERN. In calibrated scales the service mode is locked individually for each switch. To disable the access lock, destroy the seal and confirm the swatch. -
Page 19: Service Mode
(i.e. for F0 or 2 for F2). Change / save settings: Confirm selected function by pressing . Select desired setting by pressing and confirm by pressing or cancel by pressing Exit menu: Using the balance returns into the weighing mode. RPB_D-BA-e-1324... - Page 20 CAPA RPB 15K2DM, RPB 15K2DHM Factory setting CAPA RPB 30K5DM, RPB 30K5DHM Position decimal point ”weight display“ Factory setting 0.000 Point RPB 6K1DM, RPB 6K1DHM, RPB 15K2DM, RPB 15K2DHM Factory setting 0.00 Point RPB 30K5DM, RPB 30K5DHM Point Point RPB_D-BA-e-1324...
- Page 21 4800* bAUd rAtE 9600 bAUd rAtE 19200 Not documented rS-232 mode 8 n 1* rS-232 mode 7 E 1 rS-232 mode 7 o 1 Not documented PErCnt tArE PErCnt tArE off* Always use this setting Not documented rAte X.XXXX RPB_D-BA-e-1324...
-
Page 22: Operation Mode
Overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. This could cause damage to the balance. Exceeding maximum load is indicated by the display of “„-OL-“, and an audio sound. Unload balance or reduce preload. RPB_D-BA-e-1324... -
Page 23: Weighing With Price Determination
The set basic price is deleted by switch over basic price from € / kg to € / 100g (see chapter Using 8.1.1). Calculating the change, see chap. 8.2 RPB_D-BA-e-1324... -
Page 24: Unit Switch Over €/Kg To €/100 G
8.1.1 Unit switch over €/kg to €/100 g The following parameters should be set for this: To carry out these settings please proceed as follows: Switch-on balance and during the selftest press (should „oFF“ not be displayed, press RPB_D-BA-e-1324... - Page 25 (should „on“ not be displayed, press Press again (should „on“ not be displayed, press Confirm by After a short acoustic signal the balance returns automatically into weighing mode. button to switch over between €/kg and €/ 100g. The function is activated. Use RPB_D-BA-e-1324...
-
Page 26: Memory For Basic Price (Plu = Price Look Up)
The basic price is saved at the entered PLU. Retrieve / show sales price: Place goods to be weighed Press Press desired PLU and the saved basic price as well as the sales prices computed from it will be shown. RPB_D-BA-e-1324... - Page 27 (e.g. 2.25 €). Enter the given amount of money, e.g. 5.00 € using the numeric keys . The balance calculates the change and displays it, e.g. 2.75 €. Using the balance returns into the weighing mode. RPB_D-BA-e-1324...
-
Page 28: Additional Useful Functions
Background illumination on Background illumination off Automatic background illumination on when weighing pate is Auto loaded Either save by pressing or cancel by pressing . The balance returns to weighing mode. RPB_D-BA-e-1324... -
Page 29: Auto Power Off
Automatic switch off deactivated Automatic switch off after 3 min Automatic switch off after 5 min Automatic switch off after 10 min Either save by pressing or cancel by pressing . The balance returns to weighing mode. RPB_D-BA-e-1324... -
Page 30: Service, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 10.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 10.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 31: Instant Help
Should other error messages occur, switch balance off and then on again. If the error message remains inform manufacturer. 11.1 Error messages ERR 4 Zero range exceeded ERR 5 Invalid entry ERR 6 Damaged electronics RPB_D-BA-e-1324... -
Page 32: Declaration Of -Conformity
EN 60065:2002+A1:2006 Datum 08.04.2013 Signatur Date Signature 72336 Balingen Albert Sauter Ort der Ausstellung Place of issue KERN & Sohn GmbH Geschäftsführer Managing director KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0 Fax +49-[0]7433/9933-149, E-Mail: info@kern-sohn.com, Internet: www.kern-sohn.com RPB_D-BA-e-1324...
