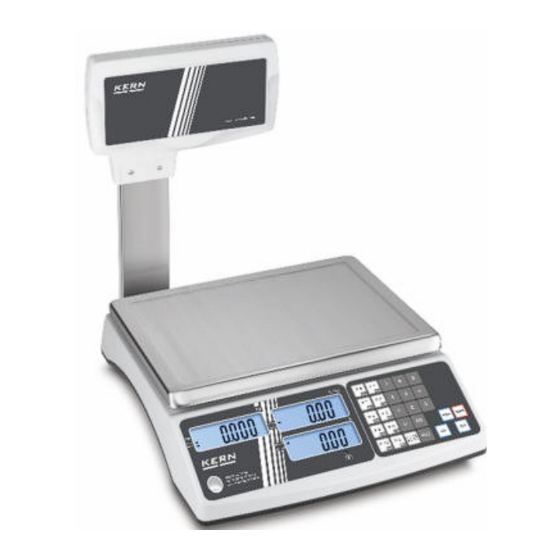

- Page 1 Operating instructions Price calculating balance KERN RIB Version 1.1 2020-07 RIB-HM RIB-M RIB-BA-e-2011...
-
Page 2: Table Of Contents
KERN RIB Version 1.1 2020-07 Operating instructions Price calculating balance Contents Technical data ....................4 Dimensions ..........................5 Appliance overview ..................6 Overview of display ........................8 Keyboard overview ........................10 Basic Information (General) ................ 12 Intended use ..........................12 Improper Use .......................... - Page 3 Servicing, maintenance, disposal .............. 31 11.1 Cleaning ........................... 31 11.2 Servicing, maintenance ......................31 11.3 Disposal ............................ 31 Instant help ....................32 12.1 Error messages ........................32 RIB-BA-e-2011...
-
Page 4: Technical Data
1 Technical data Models without vertical display: KERN RIB 6K-3M RIB 10K-2M RIB 30K-2M Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g... -
Page 5: Dimensions
Models with post-mounted display: KERN RIB 6K-3HM RIB 10K-2HM RIB 30K-2HM Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g... -
Page 6: Appliance Overview
2 Appliance overview Models without post-mounted display: Operating side Rear Models with post-mounted display: Operating side Rear 1. Weighing plate / rechargeable battery compartment (under weighing plate) 2. Bubble level 3. Post-mounted display RIB-BA-e-2011... - Page 7 Bottom of the balance 4. Tripod holder (only H models) 5. Battery compartment 6. Adjustment switch 7. Footscrews 8. Mains adapter connection RIB-BA-e-2011...
-
Page 8: Overview Of Display
• Balance display and post-mounted display (only for models with tripod) Weight Basic price Sales price Bubble level Lighting green for power supply via power supply unit • Display on backside of balance (only for models without tripod) Weight Basic price Sales price RIB-BA-e-2011... - Page 9 Battery very low ◄ Range €/kg Basic price in €/kg Display sale price Here the sales price is displayed in Euro [€]. ◄ PLU´s • Memory location 1-10 • Memory location 11-20 Display mains operation green for connection to power supply RIB-BA-e-2011...
-
Page 10: Keyboard Overview
• PLU keys • Numeric keys • Delete basic price In menu: Exit function / back to weighing mode. • Store basic price • In menu: Confirm entry • Change between the memory locations 1-10 and 11-20 • Calculate sales price RIB-BA-e-2011... - Page 11 Move decimal point to the left In menu: • Call menu together with • Taring • Change forward in menu For numeric entry: • Move decimal point to the right • Switch on balance • Switch off the balance RIB-BA-e-2011...
-
Page 12: Basic Information (General)
(www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. -
Page 13: Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 4.2 Personnel training The appliance may only be operated and maintained by trained personnel. -
Page 14: Unpacking, Setup And Commissioning
If electro-magnetic fields or static charge occur, or if the power supply is unstable major deviations on the display (incorrect weighing results) are possible. In that case, the location must be changed. 6.2 Unpacking Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. RIB-BA-e-2011... -
Page 15: Placing
6.3 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN. 6.4 Storage battery operation (optional) The optionally supplied battery is charged with the supplied power supply. -
Page 16: Assembly Of Tripod (Only H Models)
Connection cable - on the balance - and on the tripod Fix the tripod on the balance as described below: Loosen the side screws from the tripod holder of the balance Plug together the both connections. Ensure that the cables are not twisted. RIB-BA-e-2011... - Page 17 Fix the tripod using the two side screws of the tripod holder. Switch on the balance and check if the tripod display works. Should this not be the case, detach the tripod from the balance and check the connections. RIB-BA-e-2011...
-
Page 18: Initial Commissioning
3 when turning on the scale. For position of adjusting switch, see chap. 6.8.1 Attention: After destruction of the seal the balance must be re-verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification. RIB-BA-e-2011... - Page 19 The value of the adjustment weight appears. The first digit is flashing. Either Take over the displayed adjustment weight, use the numeric keys to enter a new adjustment weight Put adjustment weight in the centre of the weighing plate and confirm by RIB-BA-e-2011...
- Page 20 The weight value of the adjustment weight on the weighing plate will be displayed. Now the process of adjustment has been finished successfully. In case of an adjustment error or incorrect adjusting weight the display will show an error message; repeat adjustment process. RIB-BA-e-2011...
-
Page 21: Verification
The weighing result of the balance is outside the error limit. Therefore, in • regular intervals load balance with known test weight (ca. 1/3 of the max. load) and compare with displayed value. The reverification deadline has been exceeded. • RIB-BA-e-2011... -
Page 22: Adjustment Switch And Seals
For the adjustment, the balance must be switched over to service mode. In the service mode the parameters of the balance can be modified. If this happened accidentally, please contact KERN. In calibrated scales the service mode is locked individually for each switch. -
Page 23: Service Mode
Press and keep pressed and press additionally Keyboard test Adjustment weight internal value Software version (example) Battery voltage internal value bAt 6.7 AD converter value Press and keep pressed and press xxxxxx additionally RIB-BA-e-2011... -
Page 24: Menu
Select menu block • Use to change menu item backward • Use to change menu item forward Set parameter • Using numeric key Confirm setting Press Back to weighing mode / exit function without saving Press RIB-BA-e-2011... -
Page 25: Menu Overview
Background illumination, see chap. b Lit 10.1 Background illumination (example) automatically off Background lighting off rS232 not documented (example) bAUd not documented 9600 1200, 2400, 4800, 9600 (example) bEEP Signal tone when pressing button Signal tone off (example) Signal tone on RIB-BA-e-2011... -
Page 26: Operation
The weight of the weighing container will be displayed as a minus number after removing the weighing container. To delete the TARE value unload the weighing plate and press , the ◄ indicator [ ] next to [NET] extinguishes. RIB-BA-e-2011... -
Page 27: Overload Warning
, see chap. 8.3. Place weighing good A and enter basic price via the numeric keys (example) The sales price will be automatically calculated. (example) • The set basic price is deleted by • Calculating the change, see chap. 9.2 RIB-BA-e-2011... -
Page 28: Memory For Basic Price (Plu = Price Look Up)
The basic price is saved at the entered PLU. Retrieve / show sales price: Place goods to be weighed Press the desired PLU The basic price saved under this PLU will be displayed and the sales price automatically calculated. (example) RIB-BA-e-2011... -
Page 29: Additional Useful Functions
To save battery power Background illumination Backlighting automatically switched off 10 seconds after achieving stable weighing value automatically off to save battery power Select desired setting by (example) Then the balance changes automatically into weighing mode. The selected setting has been accepted. RIB-BA-e-2011... -
Page 30: Signal Tone
UF4 appears. Use the numeric keys for the (example) required setting. Signal tone off Signal tone on Select desired setting by (example) Then the balance changes automatically into weighing mode. The selected setting has been accepted. RIB-BA-e-2011... - Page 31 Spilled weighing goods must be removed immediately. 11.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 11.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used.
- Page 32 12 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause • The balance is not switched on. The displayed weight does not glow.
