Operating instructions
Price calculating balance
KERN RIB
Version 1.0
01/2016
GB
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
RIB-HM
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Importør:
Impex Produkter AS
Gamle Drammensvei 107
1363 HØVIK
Tel. 22 32 77 20
info@impex.no
www.impex.no
RIB-M
RIB-BA-e-1610
Advertisement
Table of Contents
Related Manuals for KERN RIB Series
Summary of Contents for KERN RIB Series
- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Importør: Impex Produkter AS Price calculating balance Gamle Drammensvei 107 1363 HØVIK Tel. 22 32 77 20 info@impex.no KERN RIB www.impex.no Version 1.0...
-
Page 2: Table Of Contents
KERN RIB Version 1.0 01/2016 Operating instructions Price calculating balance Contents Technical data ....................4 Dimensions ..........................5 Appliance overview ..................6 Overview of display ........................8 Keyboard overview ........................10 Basic Information (General) ................ 12 Intended use ..........................12 Improper Use .......................... - Page 3 Weighing with price determination ............27 Basic price entry via keyboard ....................27 Memory for basic price (PLU = Price look up) ................28 Additional useful functions ................. 30 10.1 Display background illumination ....................30 10.2 Signal tone ..........................31 Servicing, maintenance, disposal ..............
-
Page 4: Technical Data
1 Technical data Models without vertical display: KERN RIB 6K-3M RIB 10K-2M RIB 30K-2M Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g... -
Page 5: Dimensions
Models with post-mounted display: KERN RIB 6K-3HM RIB 10K-2HM RIB 30K-2HM Weighing range (max) 3 kg / 6 kg 6 kg / 15 kg 15 kg / 30 kg Readability (d) 1 g / 2 g 2 g / 5 g... -
Page 6: Appliance Overview

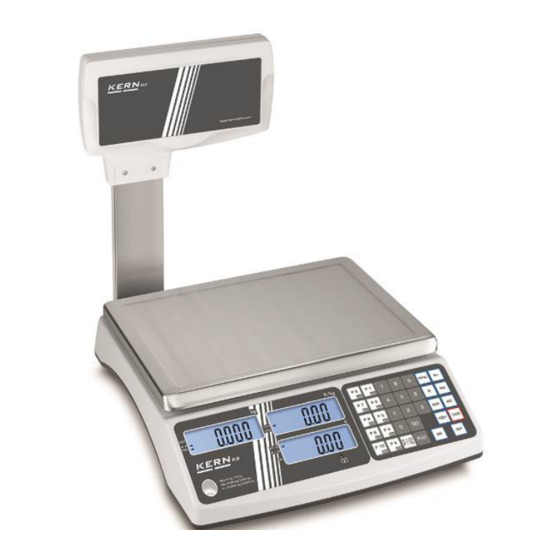

2 Appliance overview Models without post-mounted display: Operating side Rear Models with post-mounted display: Operating side Rear 1. Weighing plate / rechargeable battery compartment (under weighing plate) 2. Bubble level 3. Post-mounted display RIB-BA-e-1610... - Page 7 Bottom of the balance 4. Tripod holder (only H models) 5. Battery compartment 6. Adjustment switch 7. Footscrews 8. Mains adapter connection RIB-BA-e-1610...
-
Page 8: Overview Of Display
2.1 Overview of display • Balance display (for all models) • Balance display and post-mounted display (only for models with tripod) Weight Basic price Sales price Bubble level Lighting green for power supply via power supply unit • Display on backside of balance (only for models without tripod) Weight Basic price Sales price... - Page 9 Display weight Here, the weight of your goods is displayed. ◄ Battery very low ◄ Weighing unit g/kg� ◄ Net weight ◄ Stability display � ◄ Zeroing display Display basic price ◄ Battery very low ◄ Range €/kg Basic price in €/kg Display sale price Here the sales price is displayed in Euro [€].
-
Page 10: Keyboard Overview
2.2 Keyboard overview Selection Function • PLU keys • Numeric keys • Delete basic price In menu: Exit function / back to weighing mode. • Store basic price • Change between the memory locations 1-10 and 11-20 • Calculate sales price RIB-BA-e-1610... - Page 11 • Addition in sum memory In menu: Confirm entry • Call up total memory • Delete summation memory • Delete current counting • Calculating the change, see chap. 9.2 • Zeroing Change back in menu For numeric entry: Move decimal point to the left In menu: •...
-
Page 12: Basic Information (General)
In KERN's accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. RIB-BA-e-1610... -
Page 13: Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 4.2 Personnel training The appliance may only be operated and maintained by trained personnel. -
Page 14: Unpacking, Setup And Commissioning
6 Unpacking, Setup and Commissioning 6.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. On the installation site observe the following: •... -
Page 15: Placing
6.3 Mains connection Power is supplied via the external mains adapter. The stated voltage value must be the same as the local voltage. Only use KERN original mains adapter. Using other makes requires consent by KERN. 6.4 Storage battery operation (optional) The optionally supplied battery is charged with the supplied power supply. -
Page 16: Assembly Of Tripod (Only H Models)
6.5 Assembly of tripod (only H models) - and on the tripod Connection cable - on the balance Fix the tripod on the balance as described below: Loosen the side screws from the tripod holder of the balance Plug together the both connections. Ensure that the cables are not twisted. - Page 17 Plug the tripod carefully into the tripod holder of the balance. Ensure that the cables are not squeezed. Align the display on the tripod towards the customer (see. fig. below). Fix the tripod using the two side screws of the tripod holder. Switch on the balance and check if the tripod display works.
-
Page 18: Initial Commissioning
6.6 Initial Commissioning In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. During this warming up time the balance must be connected to the power supply (mains, accumulator). The accuracy of the balance depends on the local acceleration of gravity. - Page 19 Procedure when adjusting: Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing pan. Arrange adjustment weight, details see chap.1 „Technical data“ In weighing mode press and keep pressed;...
- Page 20 „--------“ will be displayed shortly, the balance will be adjusted and after that changes automatically into weighing mode. The weight value of the adjustment weight on the weighing plate will be displayed. Now the process of adjustment has been finished successfully.
-
Page 21: Verification
6.8 Verification G eneral hints: According to EU directive 90/384/EEC balances must be officially verified if they are used as follows (legally controlled area): a) For commercial transactions if the price of goods is determined by weighing. b) For the production of medicines in pharmacies as well as for analyses in the medical and pharmaceutical laboratory. -
Page 22: Adjustment Switch And Seals
For the adjustment, the balance must be switched over to service mode. In the service mode the parameters of the balance can be modified. If this happened accidentally, please contact KERN. In calibrated scales the service mode is locked individually for each switch. -
Page 23: Service Mode
6.9.1 Service mode This overview of the service parameters is merely for checking the parameters set by the appropriate Bureau of Standards. No changes may be made. Buttons Display Description in weighing mode Gravity Press and keep pressed and press x.xxxxx additionally Press... -
Page 24: Menu
7 Menu 7.1 Navigation in the menu Call up menu In weighing mode press and keep pressed; additionally press The first menu item UF1 (background illumination) will be displayed Select menu block • Use to change menu item backward • Use to change menu item forward Set parameter •... -
Page 25: Menu Overview
7.2 Menu overview Description Function Settings Background illumination, see chap. b Lit 10.1 Background illumination automatically (example) Background lighting off rS232 not documented (example) bAUd not documented 1200, 2400, 4800, 9600 9600 (example) bEEP Signal tone when pressing button Signal tone off (example) Signal tone on... -
Page 26: Operation
8 Operation 8.1 Turn on/off To switch on, press . The balance will carry out a self-test As soon as the weight display shows "0" in all the three display windows your balance is ready to weigh. To switch off, press and keep pressed. -
Page 27: Overload Warning
8.4 Overload warning Overloading exceeding the stated maximum load (max) of the balance, minus a possibly existing tare load, must be strictly avoided. This could cause damage to the balance. Exceeding maximum load is indicated by the display of „hhhhhh“ and a signal tone (if it before in the menu has been set to „on“). -
Page 28: Memory For Basic Price (Plu = Price Look Up)
9.2 Memory for basic price (PLU = Price look up) The balance is able to store up to 40 basic prices. Save: Unload weighing plate Enter basic price via the numeric keys (example) Press , „PLU 00“ will be displayed shortly. During this display enter the desired memory location using buttons... - Page 29 Calculating the change: In the display press sales price (e.g. 3.00 €) enter the given amount e.g. 10.00 € using the numeric keys. (example) The change will be calculated and displayed. Given amount Change Sales price Using the balance returns into the weighing mode. RIB-BA-e-1610...
-
Page 30: Additional Useful Functions
10 Additional useful functions 10.1 Display background illumination In weighing mode press and keep pressed; additionally press The menu item UF1 (background illumination) will be displayed (example) Use the numeric keys for the required setting. (example) Background lighting off To save battery power Background illumination Backlighting automatically switched off 10 seconds after achieving stable weighing value... -
Page 31: Signal Tone
10.2 Signal tone There exists the possibility to activate a signal which sounds by pressing a key or with overload. For this purpose proceed as follows: In weighing mode press and keep pressed; additionally press The menu item UF1 (background illumination) will be displayed (example) Press... -
Page 32: Servicing, Maintenance, Disposal
Spilled weighing goods must be removed immediately. 11.2 Servicing, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Before opening, disconnect from power supply. 11.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 33: Instant Help
12 Instant help In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning. Fault Possible cause • The balance is not switched on. The displayed weight does not glow.
