- Page 1 CABINET PARTS 42" BUILT IN For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 REFRIGERATOR (Black) (White) (Etched Aluminum) 10−05 Litho In U.S.A. (mek) Part No. 8214574...
-
Page 2: Cabinet Parts

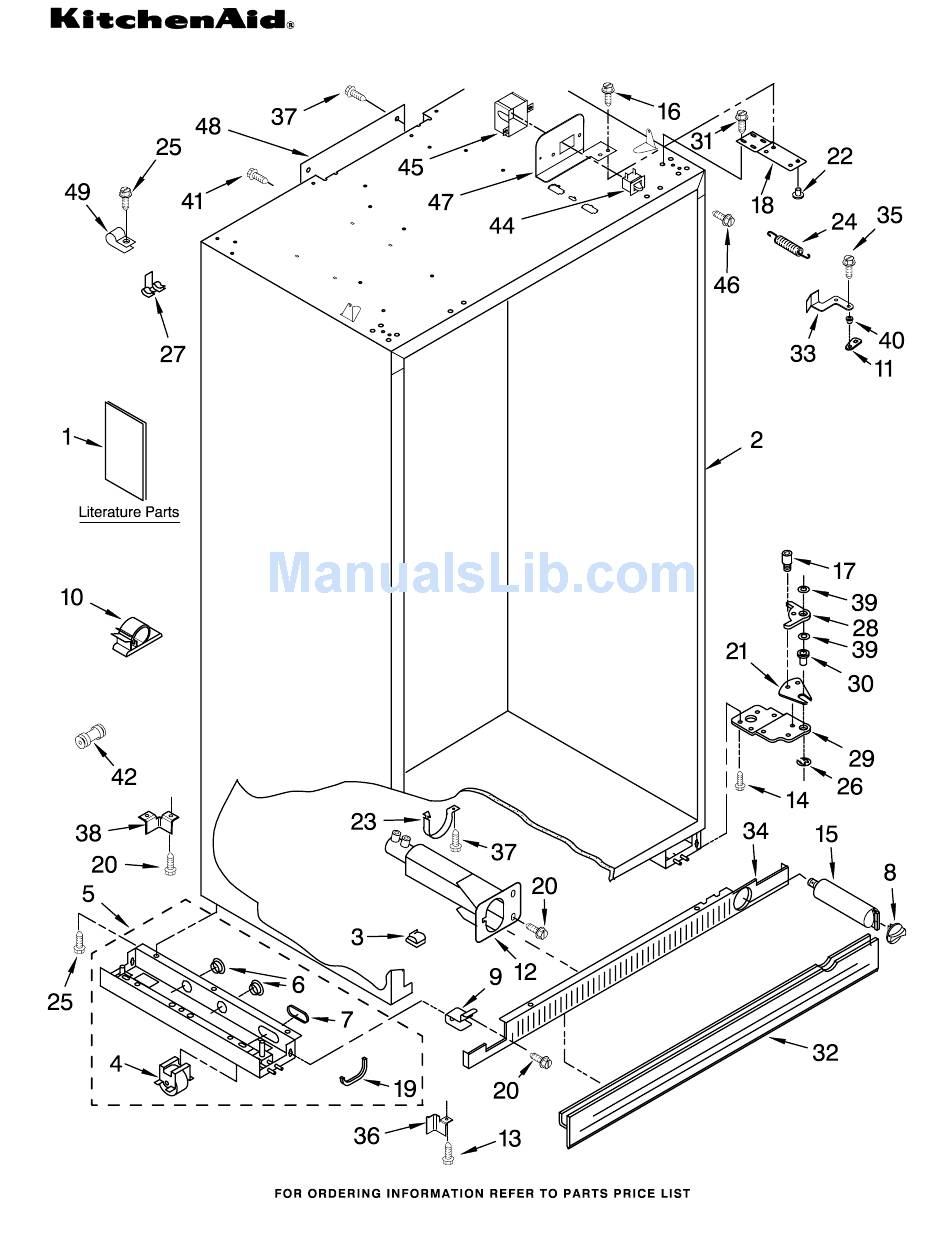

For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 Illus. Part DESCRIPTION Literature Parts 2317086 Use & Care Guide 2307358 Energy Label 2306332 Service & Wiring Sheet 2306424 Icemaker and Ingredient Care Center Service Sheet 2302865 Main Control Service Sheet 2309069 Installation Instructions Cabinet (Not A... - Page 3 For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 8214574 CABINET TRIM PARTS (Black) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552W White 2222552B Black 2222552X Etched Aluminum Screw 8281251 White 8281252 Black 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION 2302868 Solid Shelf 2302883 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw (Etched Aluminum) 8214574... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2306010 Thermistor 2302986 Lid Baffle,...
-
Page 7: Control Panel Parts
For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 8214574 CONTROL PANEL PARTS (Black) (White) Illus. Part DESCRIPTION 2302772 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2221121 Support, Control 489006 Screw 2306086 Display Board, Ingredient Care Center... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) Illus. Part 2257402W White 2257402B Black 2257402X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2302974 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2215910 Grommet, Flexible...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257611 Trim, Glass...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 Illus. Part DESCRIPTION 2259385 Fan Motor 2198665 Tube, P.C. Board 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 487294 Screw, Ground...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) Illus. Part 2222965 Ice Bin 2222964 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 18 FREEZER DOOR PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2252324W White L2307844B Black 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222814 Door Gasket, Magnetic Handle, Door 2256472W White...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187755 Wire Assembly Cover, Dispenser (Not Serviced) 2256199 Spring, Torsion 2196195 Pin 2304355 Ice Door Mechanism 2180353 Door, Ice 489000 Screw...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574...
- Page 22 For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 Illus. Part DESCRIPTION 2306957 Inverter Box 489373 Screw, Compressor Mounting (4) 2302967 Compressor (Includes Items 6 & 9) (Also Order 876765 Tube Kit) 2257354 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting 2266803 Shroud, Condenser...
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2302929 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 (Black) (White) (Etched Aluminum) 8214574... - Page 26 For Models: KSSS42QMB02, KSSS42QMW02, KSSS42QMX02 Illus. Part DESCRIPTION 2300104 Cover, Bottom Electrical 2187717 Wire Assembly, Icemaker 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2316756 Water Inlet Tube Assembly 2302758 Seal Gasket 2302719 Tube, Filter Outlet 2188786 Valve, Solenoid 2221070 Clamp, Tube...
