KitchenAid KSSS42QDW05 Parts List

KitchenAid KSSS42QDW05 Parts List

42" built in refrigerator
Hide thumbs Also See for KSSS42QDW05:

Advertisement

Table of Contents

See also: Use and Care Manual , Instruction and Installation Manual
CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Models: KSSS42QDW05, KSSS42QDX05
4−97 Litho In U.S.A. (mek)
1
Part No. 4394683

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42QDW05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS42QDW05

Summary of Contents for KitchenAid KSSS42QDW05

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42QDW05, KSSS42QDX05 4−97 Litho In U.S.A. (mek) Part No. 4394683...

  • Page 2: Cabinet Parts

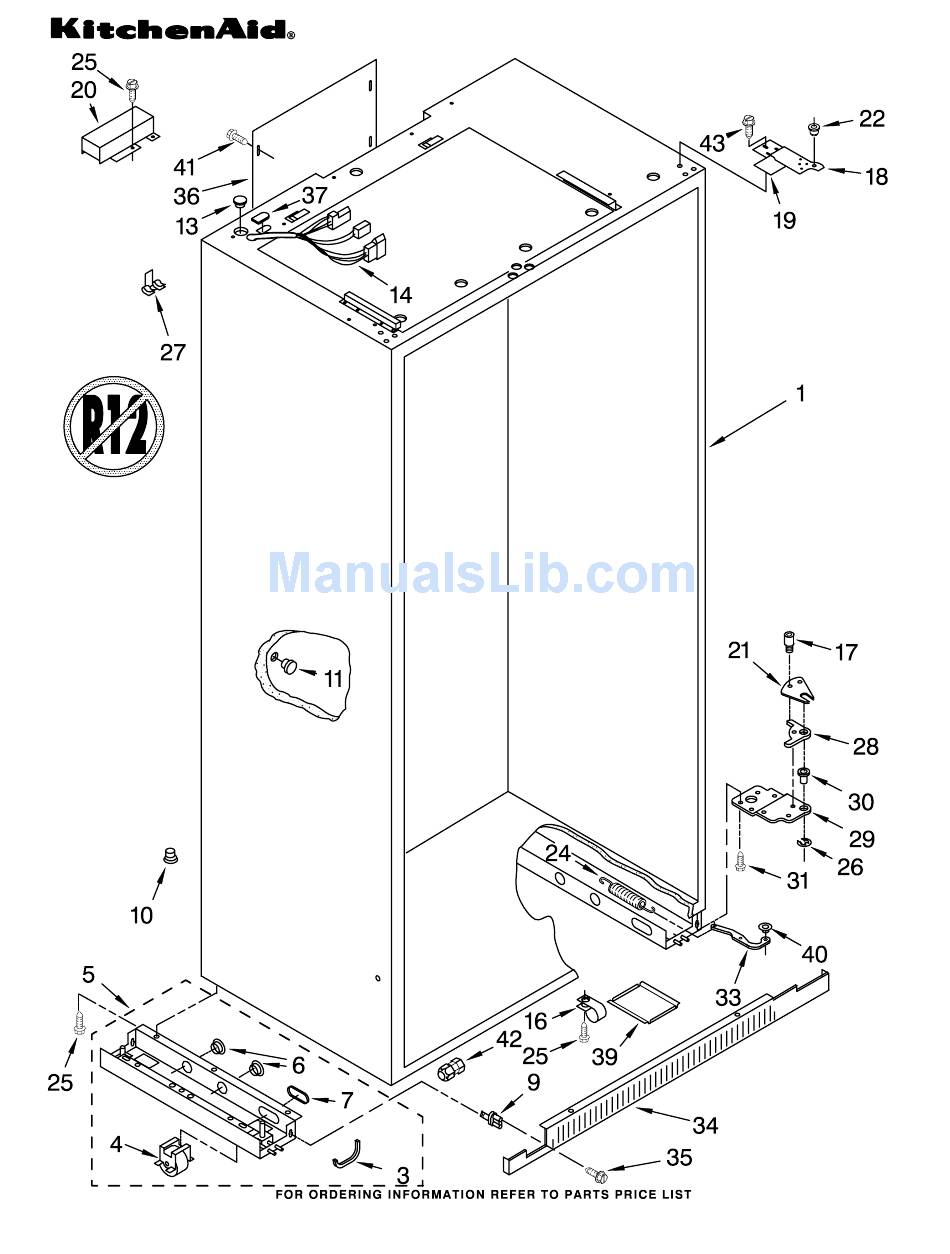

    CABINET PARTS For Models: KSSS42QDW05, KSSS42QDX05 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2004993 Screw, Door Stop Hinge (Bottom) Cabinet (Not A Hinge (Top) 2004539 Freezer Side Serviceable Part) 2001976 Left Side 2004507 Refrigerator Side 2005004 Grommet, Tube 2001975 Right Side 2004992 Bushing, Crossover...
