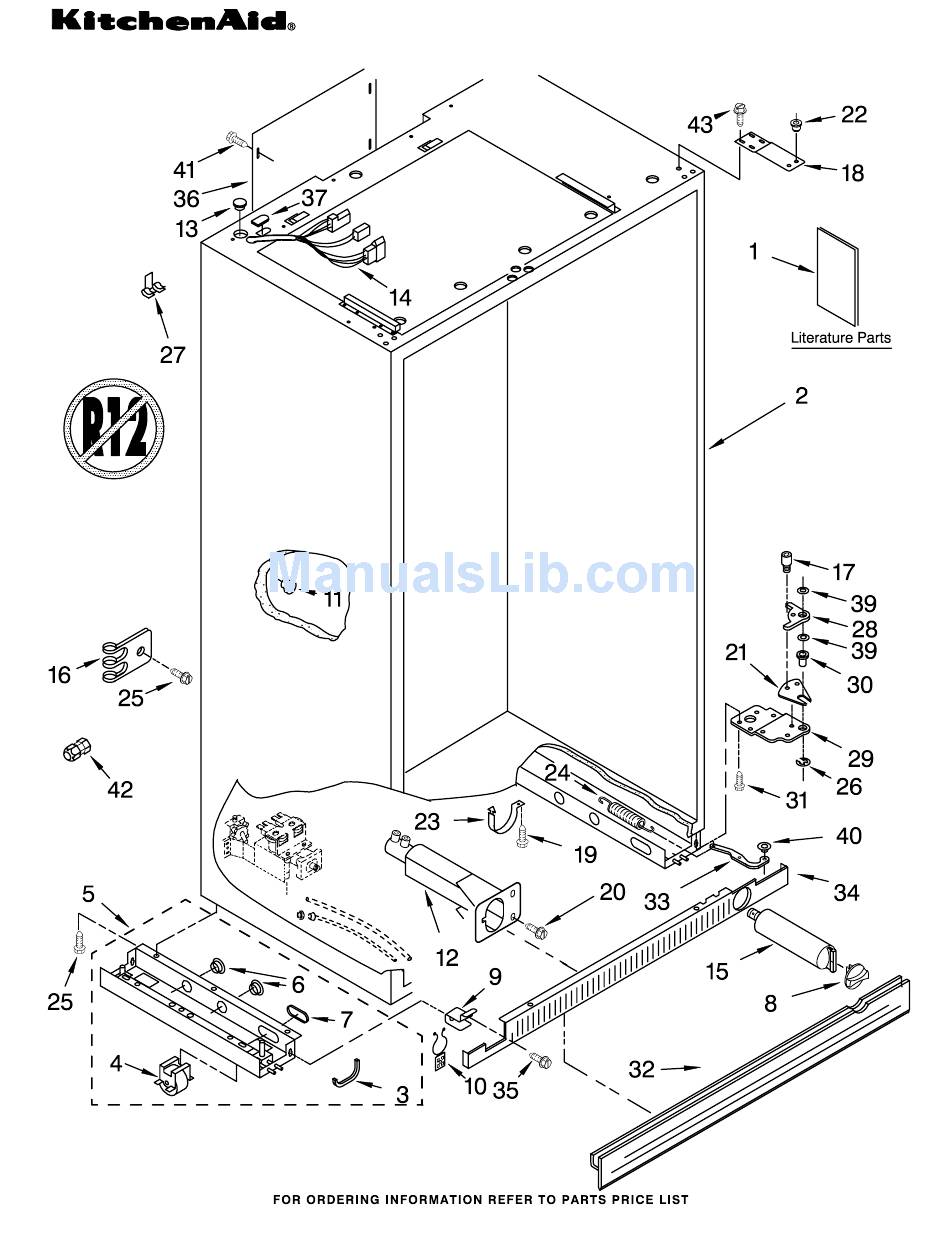

- Page 1 CABINET PARTS 42" BUILT IN For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 REFRIGERATOR (White) (Black) (Biscuit) 7−00 Litho In U.S.A. (mek) Part No. 4398746...
- Page 2 CABINET PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2006342 Gap, Cover 2006442 Mounting Stud, LITERATURE PARTS Assembly (Bottom) Grill LIT2209249 Use & Care Guide Hinge (Bottom) 2005237 Clip, Wire LIT2209468 Energy Label 2006780 Freezer Side 1112849 Cap, Grommet...
- Page 3 CABINET TRIM PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet, Trim (2) 2006790 White 2006793 Black 2006792 Biscuit 2003857 Screw 1163283 Screw 2209074 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top 487944 Washer (2) 2005925 Seal−Trim, Side 489464 Screw 4398746...
- Page 4 FREEZER LINER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3)
- Page 5 REFRIGERATOR LINER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2209226 Control Panel 2209002 Inlay, Control Panel 2208995 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209173 Shield, Control Panel...
- Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209253 Shield, Control Panel...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006524 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9)
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003143 Solid Shelf 2188382 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2003113 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 4398746... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Trim, Grille Top Grille 2005534 Guard, Compressor Right Side Wiring Assembly 2003602 White 2003717 White 2006440 Baffle−Air, 2005821 Black 2005902 Black Condenser...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746... - Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor...
- Page 15 REFRIGERATOR DOOR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 16 FREEZER DOOR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 17 REFRIGERATOR DOOR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003871 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top &...
- Page 18 FREEZER DOOR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2202547W White 2202547B Black 2202547T Biscuit 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746... - Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Water Grille, Overflow Housing, Dispenser Dispenser 2180323 White (Not Serviceable) 2180268 White 2180325 Black 2195051 Strain Relief 2180270 Black 2186860 Biscuit 2180209 Spring, Torsion 2186852 Biscuit...
- Page 21 UPPER UNIT PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 22 UPPER UNIT PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2202581 Drier 2003398 Assembly, Unit 2208903 Motor, Fan Base Following Parts Not Illustrated 2190685 Blade, Fan 2163787 Clip, Compressor and Optional Parts Not Included 2003169 Orifice, Fan Mounting (4) 489099 Screw (3)
- Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve...
- Page 25 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746...
- Page 26 AIR FLOW AND RESERVOIR PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 488937 Clamp, Nylon 2001145 Channel, Wiring...
-
Page 27: Icemaker Parts
ICEMAKER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) 4398746... - Page 28 ICEMAKER PARTS For Models: KSSS42QJW00, KSSS42QJB00, KSSS42QJT00 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 489322 Screw 488937 Clamp Tube 628379 Clip, Fuse 489276 Screw 2174155 Cover 2203198 Tube, Filter Inlet 2171593 Shut Off Arm 628228 Mold &...
