KitchenAid KSSS42QMB00 Parts List

KitchenAid KSSS42QMB00 Parts List

42" built in refrigerator
Hide thumbs Also See for KSSS42QMB00:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual , Instruction and Installation Manual

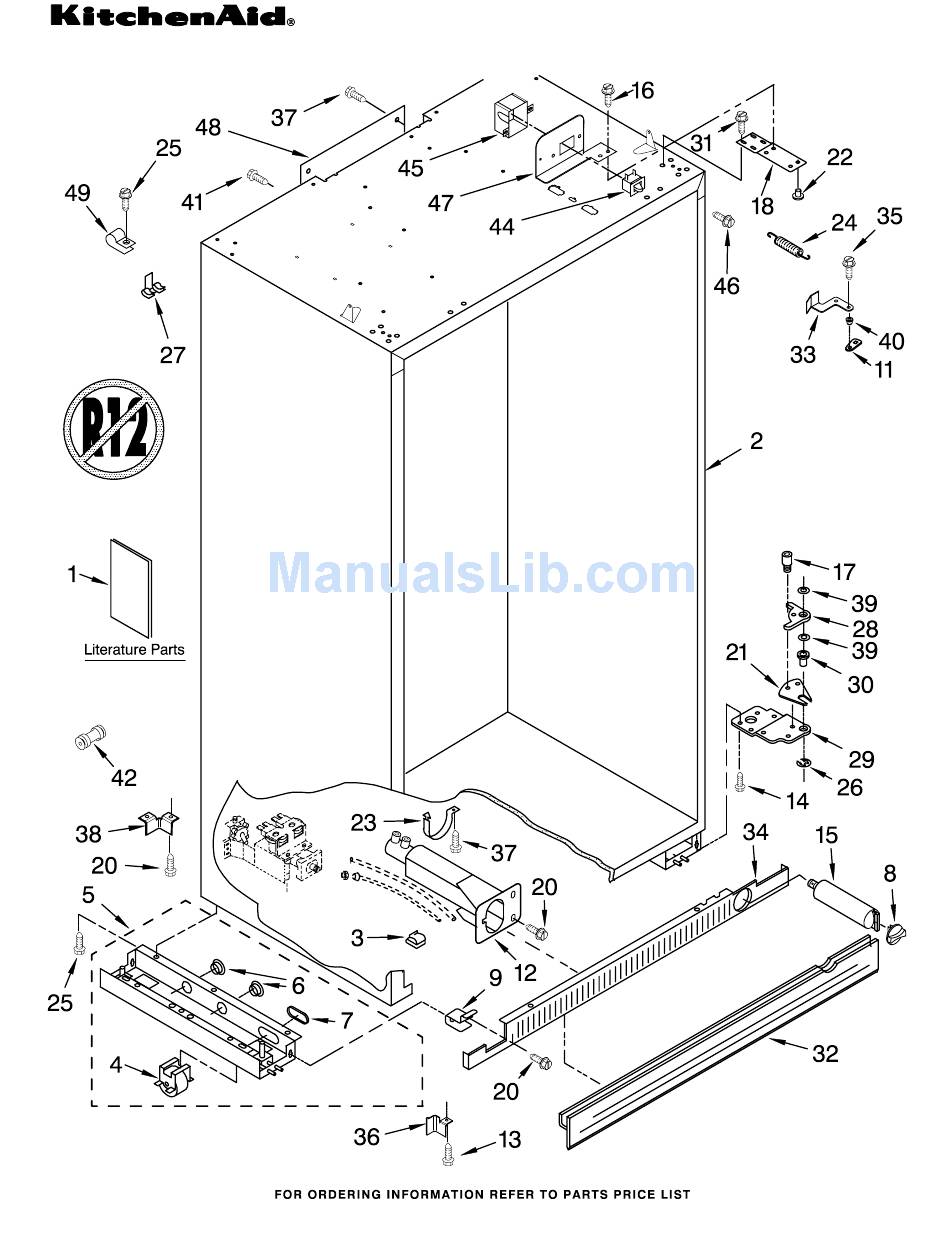

CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00
(Black)
(White)
(Etched Aluminum)
Part No. 8198473
1−04 Litho In U.S.A. (ebk)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42QMB00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS42QMB00

Summary of Contents for KitchenAid KSSS42QMB00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) Part No. 8198473 1−04 Litho In U.S.A. (ebk)

  • Page 2: Cabinet Parts

    For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 Illus. Part DESCRIPTION Literature Parts LIT2266808 Use & Care Guide LIT2266814 Energy Label LIT2266827 Service & Wiring Sheet LIT2220407 Modular Icemaker Service Sheet LIT2266811 Installation Instructions Cabinet (Not A Serviceable Part) 934011 Clip, Water Tube 1112023 Roller, Front &...
  • Page 3 For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 8198473 CABINET TRIM PARTS (Black) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552W White 2222552B Black 2222552X Etched Aluminum Screw 8281251 White 8281252 Black 8281250 Stainless Steel 2254725 Cabinet, Trim (Bottom) 486194 Screw...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION 2256205 Solid Shelf 2259003 Shelf, Fixed 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw (Etched Aluminum) 8198473...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2257528 Lid Baffle,...

  • Page 7: Control Panel Parts

    For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 8198473 CONTROL PANEL PARTS (Black) (White) Illus. Part DESCRIPTION 2215716 Control Box 2215670 Insert, Control 2252110 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2258914 Panel Control, Meat Pan 2221121 Support, Control 489006 Screw...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) Illus. Part 2257402W White 2257402B Black 2257402X Etched Aluminum 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2259095 Cover, Unit Front 487415 Screw 2187429 Wire Assembly 2215910 Grommet, Flexible...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2221071 Egg Bin 2256277 Glass, Meat Pan Cover 2256427 Glass, Crisper Cover 2257611 Trim, Glass...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 Illus. Part DESCRIPTION 2259385 Fan Motor 2198665 Tube, P.C. Board 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2259464 Wedge, Air Duct 487294 Screw, Ground...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) Illus. Part 2222965 Ice Bin 2222964 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Insulation) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Bin 2222811 Door Gasket, Magnetic...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2252324W White 2252324B Black 2256390 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222814 Door Gasket, Magnetic Handle, Door 2256472W White...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2187523 Wire Assembly Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice...
  • Page 21 UPPER UNIT PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 22 For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 Illus. Part DESCRIPTION 2221559 Inverter Box 489373 Screw, Compressor Mounting (4) 2223393 Compressor (Includes Items 6 & 9) (Also Order 876765 Tube Kit) 2257354 Housing, Control Board 2215641 Bracket, Fan Motor 1100826 Grommet, Mounting 2266803 Shroud, Condenser...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259244 Side Support 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2259329 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 (Black) (White) (Etched Aluminum) 8198473...
  • Page 26 For Models: KSSS42QMB00, KSSS42QMW00, KSSS42QMX00 Illus. Part DESCRIPTION 2300104 Cover, Bottom Electrical 2187716 Wire Assembly, Icemaker 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2252393 Water Inlet Tube Assembly 2302758 Seal Gasket 2254800 Tube, Filter Outlet 2221221 Valve, Solenoid 2221070 Clamp, Tube...
