Installation

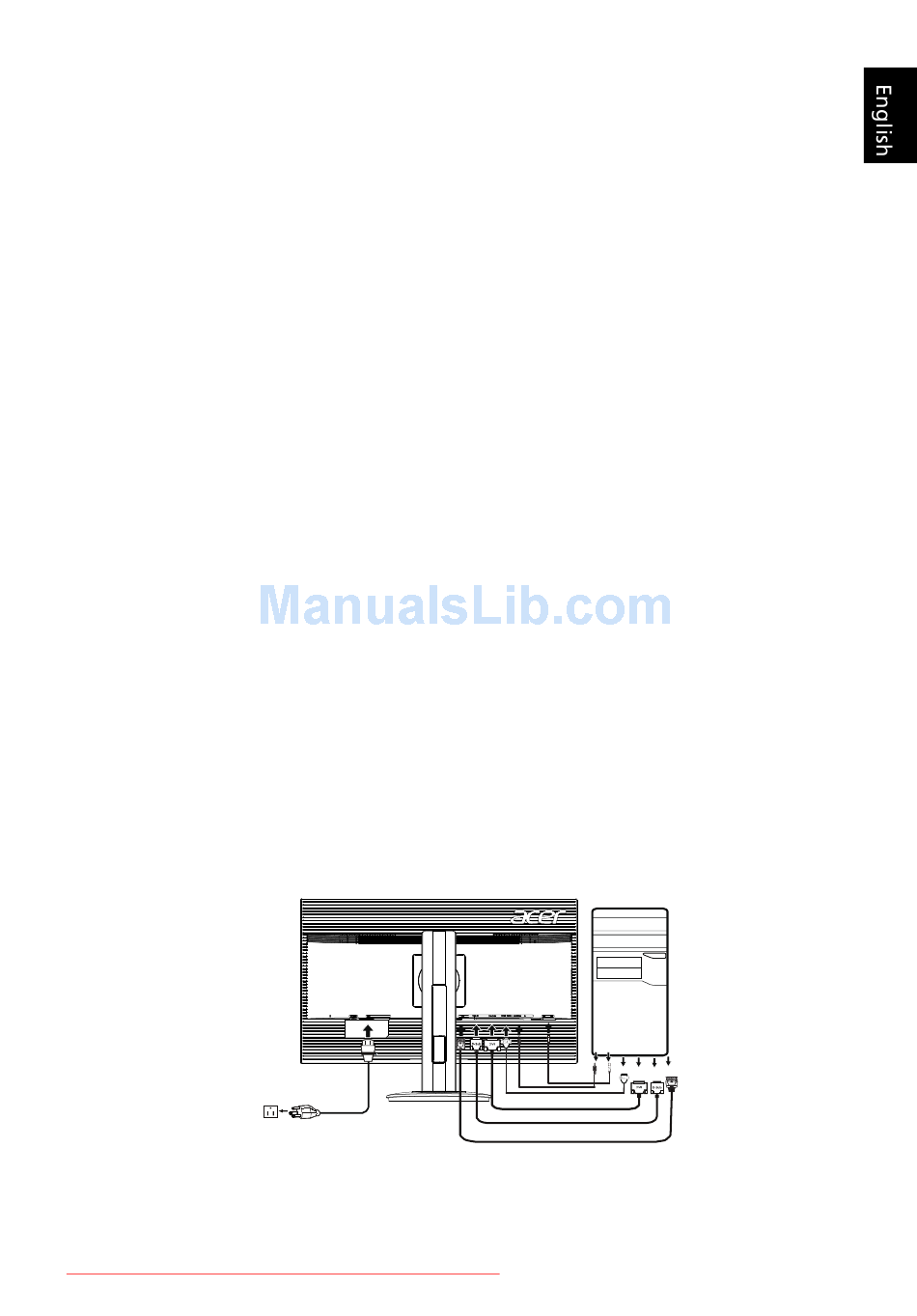

To install the monitor on your host system, please follow the steps below:
Steps
1
Connect the video cable
a
Make sure both the monitor and computer are switched off.
b
Connect the VGA video cable to the computer.
c
Connect the digital cable (only for dual-input models).
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 24-pin DVI cable to the back of the
d
Connect the digital cable (only for DP models).
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 20-pin DP cable to the back of the
Connect HDMI Cable (Only for HDMI-Input Model)(Optional)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect t he HDMI cable to computer. Or connect MHL cable
Or connect MHL cable(Only for MHL-Input Model)(Optional)
to the portable device
2
Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC
outlet.
3
Optional:Connect the audio input socket(AUDIO IN) of the LCD monitor
and the line-out port on the computer with the audio cable.
Turn on the monitor and computer
4
Turn on the monitor first, then the computer. This sequence is very
important.
5
If the monitor does not function properly, please refer to the
troubleshooting section to diagnose the problem.
